380V 50Hz Electric PET Bottle Monoblock Liquid Filling Machine
380V 50Hz Electric PET Bottle Monoblock Liquid Filling Machine
Full line with pet bottle filling machine for fresh fruit juice
Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
Features
1. Per fect filling temperature control system.
2. Reflux tank system has the function of supplying the material automatically.
3. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize
the complete CIP.
4. Sanitary filling head system is of umbrella structure, high filling speed.
1. Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
5. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
7. Perfect CIP system.
Technique parameter
|
Model |
18-18-6 |
|
Productivity |
6000BPH |
|

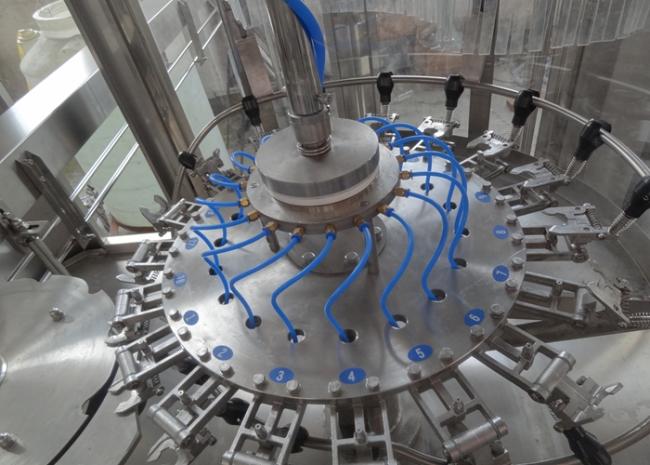

Rinsing Head |
18 |
|
Filling Head |
18 |
|
Capping Head |
6 |
|
Bottle Volume |
350ml~2000ml±10ml |
|
Bottle Diameter |
φ50-92mm |
|
Bottle Height |
150-310 mm |
|
Filling Tolerance |
±2% |
|
Cap Size |
28mm and 30mm PE Standard Caps |
|
Air Pressure |
0.6MPa |
|
Air Consumption |
500 L/min |
|
Gas Consumption |
0.4 m3/min |
|
Motor Power |
6.68kW |
|
Voltage |
380V |
|
Dimension |
(L×W×H) 2450*1800*2200mm |
|
Weight |
3000kg |
|
Filling Principle |
Gravity Filling |
Specifications
Full line with pet bottle filling machine for fresh fruit juice RCGF18-18-6
1. juice filling machine,pet bottle filling machine
2. 6000bph
3. PLC control
4. Component contact with liquid adopt SUS304
