380V 50Hz Rotaty Electric Aseptic Bottle Filling Machine
380V 50Hz Rotaty Electric Aseptic Bottle Filling Machine
1. This machine is used to fill juice, tea and other non-gas beverage.
2. All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.
3. The automatic juice packaging and bottling machine was equipped with suspension type air conveyor and frequency control of motor speed.

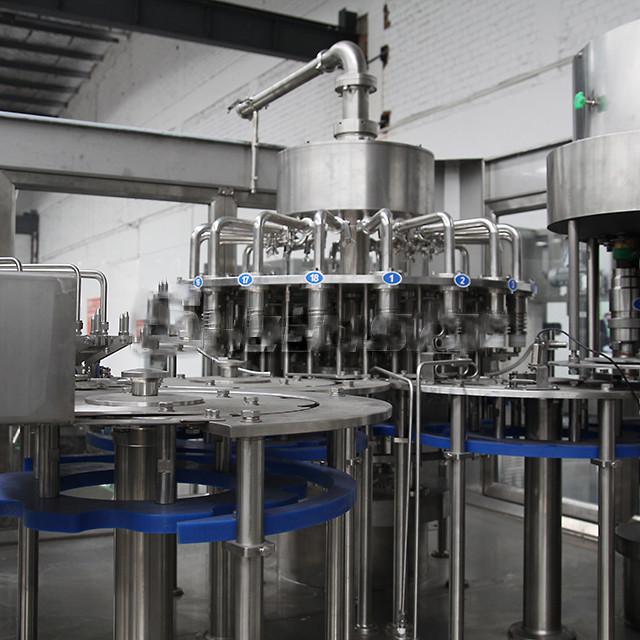

4.This machine is comprised of rinsing, filling and capping system.
5. This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.
Filling: hot filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately.

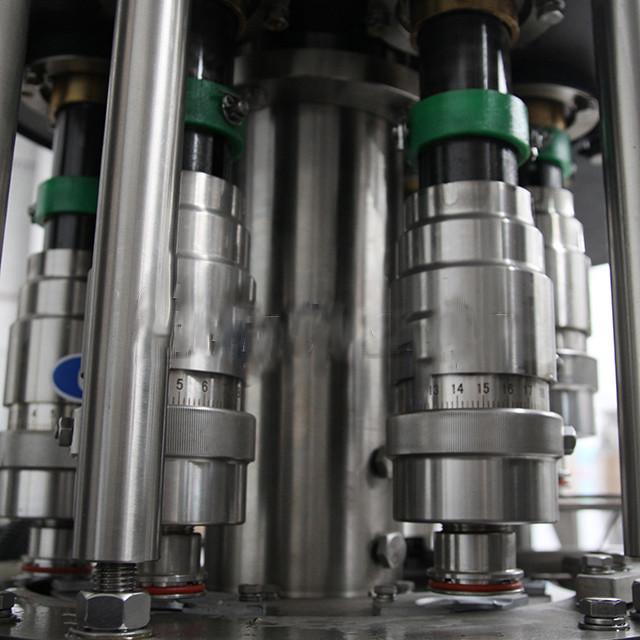

Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
Technical Date
| Model | RXGF8-8-3 | RXGF12-12-5 | RXGF16-12-6 | RXGF-16-16-6 |
| Production capacity (500ml)(b/h) | 1500-2000 | 2000-2500 | 3000-4000 | 4000-6000 |
| Filling precision | ±2mm(Liquid Level) | |||
| Polyester bottle standard(mm) | (Bottle Diameter):Φ50-Φ100(Height):150-310 | |||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of washing bottle(MPa) | 0.2-0.25(Mpa) | |||
| Wash bottle consumption water (kg/h) | 600 | 700 | 800 | 1200 |
| Spraying position | 5 | 5 | 5 | 5 |
| Dripping bottle position | 3 | 3 | 3 | 3 |
| Gas source pressure(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(M3/min) | 0.1 | 0.1 | 0.1 | 0.1 |
| Power(kw) | 2.2 | 2.2 | 4.4 | 4.4 |
| Weight(kg) | 2000 | 2100 | 2200 | 2800 |
| Dimensions(L×W×H)(mm) | 2000*1600*2200 | 2100*1650*2200 | 2230*1630*2250 | 2360*1830*2250 |
| Model | RXGF-16-16-6 | RXGF24-24-8 | RXGF32-32-10 | RXGF40-40-12 |
| Production capacity (500ml)(b/h) | 4000-6000 | 6000-10000 | 10000-15000 | 15000-20000 |
| Filling precision | ±2mm(Liquid Level) | |||
| Polyester bottle standard(mm) | (Bottle Diameter):Φ50-Φ100(Height):150-310 | |||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of washing bottle(MPa) | 0.2-0.25(Mpa) | |||
| Wash bottle consumption water (kg/h) | 1200 | 1800 | 2400 | 3000 |
| Spraying position | 5 | 8 | 12 | 16 |
| Dripping bottle position | 3 | 4 | 7 | 9 |
| Gas source pressure(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(M3/min) | 0.1 | 0.4 | 0.5 | 0.5 |
| Power(kw) | 4.4 | 5.2 | 6.2 | 7.8 |
| Weight(kg) | 2800 | 4500 | 6000 | 7000 |
| Dimensions(L×W×H)(mm) | 2360*1830*2250 | 2900*2200*2250 | 3880*2200*2250 | 3700*3000*2350 |
