Perkins 400kVA Soundproof Generator Set with 2206C-E13TA Engine
Perkins 400kVA Soundproof Generator Set with 2206C-E13TA Engine
The 2206C-E13TA Perkins Engine 400kVA Soundproof Generator Set from Hosem Power is engineered to deliver outstanding performance and low-noise operation for demanding industrial and commercial power applications. Powered by the globally trusted Perkins 2206C-E13TA, this generator provides a reliable 400kVA standby capacity and stable 360kVA prime power—ensuring uninterrupted operation for facilities where power stability is critical.
Designed with an advanced soundproof canopy, the generator significantly reduces noise output, making it ideal for hospitals, business centers, residential projects, data centers, and any installation requiring quiet and dependable operation. The robust structural design, intelligent control system, and high-quality alternator options ensure long-term durability and consistent electrical performance in harsh or demanding environments.
Key Features

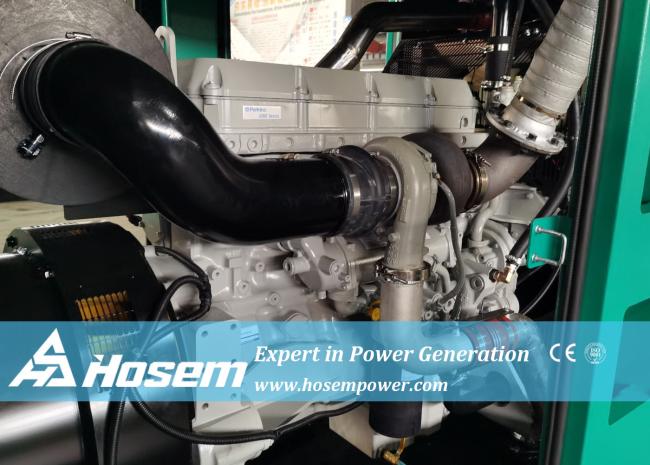

Premium Perkins 2206C-E13TA Engine
- High-performance 13L engine designed for superior power density
- Exceptional load acceptance—ideal for industrial equipment and sensitive electronics
- Global service support with extensive availability of spare parts
Advanced Soundproof Canopy
- Heavy-duty steel enclosure with layered acoustic insulation
- High-density fire-retardant sound-absorbing materials reduce mechanical noise
- Optimized airflow system ensures stable cooling while minimizing turbulence noise
- Industrial-grade muffler further reduces exhaust noise
High-Quality Electrical Output
- Equipped with various alternator options (Leroy Somer, Stamford, Mecc Alte, Hosem)
- Automatic Voltage Regulation (AVR) for stable frequency and voltage
- Low total harmonic distortion—safe for sensitive electrical devices
Intelligent Digital Control
- Deepsea / SmartGen controller with LCD display
- Supports AMF and ATS for fully automatic backup power
- Comprehensive alarms and shutdown protections for engine and electrical safety
Durable Build & Easy Maintenance
- Reinforced base frame with high-performance anti-vibration mounts
- Anti-corrosion powder-coated canopy suitable for outdoor installation
- Wide access doors for fast inspection and maintenance
- Large-capacity fuel tank for extended runtime
Specification of Perkins 400kVA Soundproof Generator Set with 2206C-E13TA Engine
| Generator Set Specification | ||
| Model | A-P440S | |
| Max. Power | kVA | 440 |
| kW | 352 | |
| Rate Power | kVA | 400 |
| kW | 320 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 577.4 |
| Fuel Tank Capacity | L | 600 |
| Dimension For Open-type Genset | mm | 3500 X 1200 X 1960 |
| Weight For Open-type Genset | kg | 3480 |
| Dimension For Soundproof Genset | mm | 4350 X 1450 X 2180 |
| Weight For Soundproof Generator | kg | 5260 |
| Noise Level for Soundproof Generator at 7M | dBA | 80 |
| Battery for Starting | Two of Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | Perkins Engines Company Limited | |
| Engine Brand | Perkins | |
| Engine Model | 2206C-E13TAG3 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 413 |
| Displacement | L | 12.5 |
| Compression Ratio | 16.3 : 1 | |
| Starting Voltage | V | 24 |
| Bore | mm | 130 |
| Stroke | mm | 157 |
| Lubrication Oil Capacity | L | 38 |
| Intake Air Flow | M3/Min | 12.5 |
| Fuel Consumption at 100% Load | L/H | 85 |
| Alternator Specification | ||
| Alternator Model | TAL-A473-A | |
| Alternator Brand | Leroy Somer | |
| Rate Output | kVA | 400 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H | |
| Phase | 3 Phase | |
| Working Temperature without power decrease | ≤40℃ | |
| Working Altitude without power decrease | ≤1000m | |
| Automatic Voltage Regulation | SX440 | |
| Protection Grade | IP23 | |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional | |
| Control Panel Specification | ||
| Controller Brand | Smartgen | |
| Controller Model | HGM6120N | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 630 | |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Applications
The 400kVA Perkins soundproof generator is ideal for:
- Data Centers & Telecom Stations
- Hospitals & Large Healthcare Facilities
- Commercial Complexes & Office Buildings
- Manufacturing Plants & Industrial Zones
- Hotels, Malls & High-rise Buildings
- Government & Infrastructure Projects
Its quiet operation, high power output, and excellent stability make it a reliable choice for both standby and continuous operation.
Why Choose Hosem Power?
- 100% factory-tested before shipment
- Certified manufacturing under ISO9001, CE, ISO14001
- Fast global spare parts supply
- Customizable canopy color, alternator brand, control systems, and voltage
- Professional technical support and long-term service solutions
FAQ - 2206C-E13TA Perkins Engine 400kVA Soundproof Generator Set
Q1: Can Hosem Power provide OEM or customized generator services?
A1: Yes. Hosem Power offers full OEM and customization services, including logo branding, canopy color customization, control panel configuration, voltage/frequency adjustment, and alternator options to meet your project’s exact needs.
Q2: Are the generators newly manufactured or pre-stocked?
A2: Every diesel generator is newly manufactured after order confirmation to ensure top performance and quality. The production date is clearly stated on the nameplate and in the user manual provided with each unit.
Q3: What warranty does Hosem Power provide?
A3: All Hosem generators come with a one-year or 1,000-hour warranty (whichever comes first). During this period, any quality-related issues will be covered by free replacement parts, and urgent spare parts will be shipped at Hosem Power’s expense.
Q4: What are the payment terms?
A4: Standard payment terms are 30% deposit by T/T before production and 70% balance before shipment. For bulk or long-term cooperation orders, L/C at sight is also accepted.
Q5: How long does production and delivery take?
A5: The typical delivery time is around 30 days, depending on the quantity and customization level. For standard configurations, shorter lead times may be available.
Looking for a reliable, quiet, and fuel-efficient power solution powered by Perkins?
Contact Hosem Power today for a customized quotation and expert technical guidance.
