60Hz 150kVA Soundproof Diesel Generator with Durable SDEC Engine| Hosem Power
60Hz 150kVA Soundproof Diesel Generator with Durable SDEC Engine| Hosem Power
The 60Hz 150kVA Soundproof Diesel Generator with Durable SDEC Engine is designed to deliver stable, efficient, and low-noise power for demanding commercial and industrial applications. Powered by a robust SDEC diesel engine, this generator offers strong load capacity, dependable performance, and cost-effective operation, making it an ideal solution for both prime power and standby power requirements.
Engineered with a heavy-duty soundproof canopy, the generator significantly reduces operating noise while maintaining excellent ventilation and cooling performance. Its 60Hz configuration makes it especially suitable for markets in North America, South America, and other regions requiring 60Hz power supply. With Hosem Power’s strict quality control and factory testing, this 150kVA generator ensures reliable power even in harsh operating environments.
Key Features
Durable SDEC Diesel Engine
- Reliable 150kVA power output with stable performance
- Designed for long service life and easy maintenance
Low-Noise Soundproof Design
- Reinforced steel canopy with multi-layer acoustic insulation
- Industrial-grade muffler to reduce exhaust noise
- Suitable for noise-sensitive environments such as offices and residential areas
Efficient Cooling & Ventilation
- Scientifically designed air intake and exhaust system
- Ensures stable operation even during long running hours
- Prevents overheating while keeping noise levels low
Smart Control System
- Digital control panel for real-time monitoring
- Complete protection functions: overload, high temperature, low oil pressure
- ATS compatibility for automatic power transfer
Strong Structure & Easy Maintenance
- Anti-vibration mounts minimize mechanical stress and noise transmission
- Wide access doors simplify inspection and servicing
- Weather-resistant coating for outdoor installation
Specification of 60Hz 150kVA Soundproof Diesel Generator with Durable SDEC Engine
| Generator Set Specification | ||
| Model | A-SH165HS | |
| Max. Power | kVA | 165.0 |
| kW | 132.0 | |
| Rate Power | kVA | 150.0 |
| kW | 120.0 | |
| Frequency | Hz | 60 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 216.5 |
| Dimension For Open-type Genset | mm | 2250 X 900 X 1420 |
| Weight For Open-type Genset | kg | 1350 |
| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 2050 |
| Noise Level at 7 Meters | dBA | 75 |
| Fuel Tank Capacity | Liters | 180 |
| Battery | Two of Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. | |
| Engine Brand | SDEC | |
| Engine Model | 6HTAA6.5-G21 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 136 |
| Displacement | L | 6.500 |
| Starting Voltage | V | 24 |
| Bore | mm | 105 |
| Stroke | mm | 124 |
| Lubrication Oil Capacity | L | 15-17.5 |
| Compression Ratio | 16 : 1 | |
| Intake Air Flow | M3/Min | N.A. |
| Fuel Consumption at 100% Load | L/H | 33.1 |
| Alternator Specification | ||
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. | |
| Alternator Model | ASF274E | |
| Alternator Brand | Hosem | |
| Rate Output | kVA | 150 |
| Frequency | Hz | 60Hz |
| Current | A | 216.5 |
| Insulation | Class H | |
| Voltage Regulation | SX440 | |
| Protection Grade | IP23 | |
| Working Temperature without Output Decrease | ≤1000m | |
| Phase | 3 Phase | |
| Temperature Rise | 125 Degree Celsius | |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional | |
| Control Panel Specification | ||

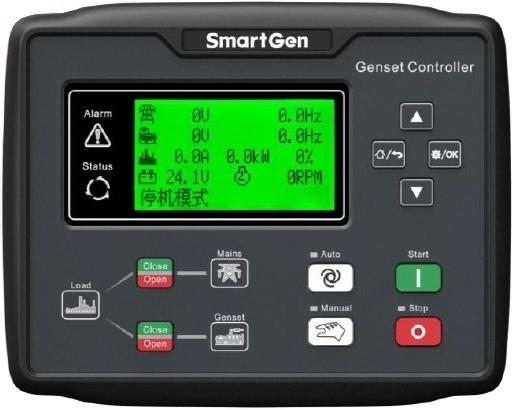

| Controller Brand | Smartgen | |
| Controller Model | HGM6120 | |
| Breaker Brand | Delixi | |
| Breaker Capacity | A | 630 |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| Mains Monitor | Supply with AMF Function | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Typical Applications
- Commercial buildings and office centers
- Factories and industrial workshops
- Hospitals and medical facilities
- Hotels, shopping malls, and residential complexes
- Construction sites and infrastructure projects
FAQ – 60Hz 150kVA Soundproof Diesel Generator with Durable SDEC Engine
Q1: Is this 150kVA generator suitable for continuous operation?
A1: Yes. This generator is designed for both prime and standby power applications. With proper maintenance, it can operate reliably for extended periods.
Q2: How quiet is the soundproof generator?
A2: The soundproof canopy, acoustic insulation, and industrial muffler work together to significantly reduce noise levels, making it suitable for urban and noise-sensitive environments.
Q3: Can the generator start automatically during a power outage?
A3: Yes. When equipped with an Automatic Transfer Switch (ATS), the generator can automatically start and supply power immediately after grid failure.
Q4: What voltage options are available?
A4: Hosem Power can customize the generator to support various voltages such as 220V, 380V, 400V, 440V, or 480V, depending on project requirements.
Q5: What warranty does Hosem Power provide?
A5: All generators come with a 1-year or 1,000 running hours warranty (whichever comes first), covering manufacturing defects and supported by free replacement spare parts.
