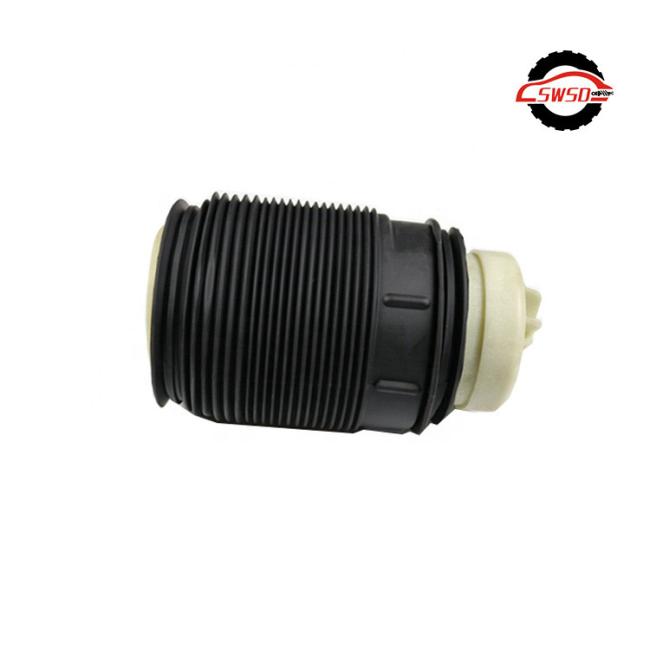

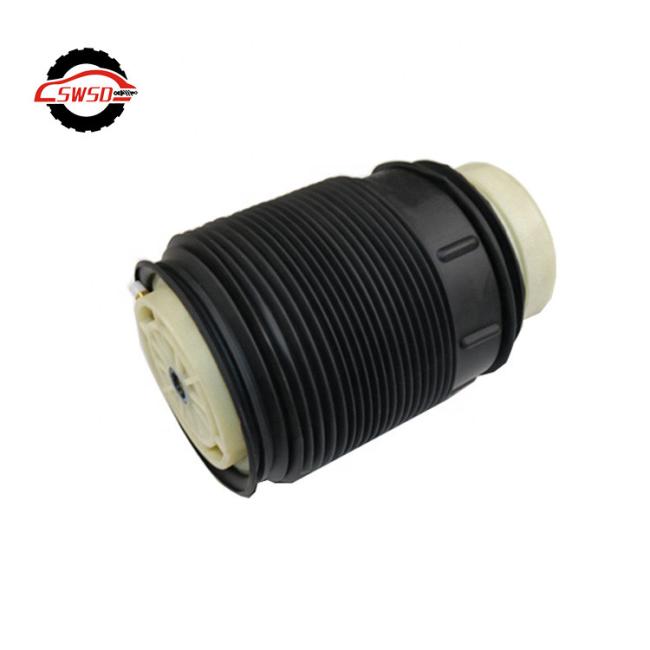

Mercedes W212 Airmatic Shock Absorber Rear Air Spring Air Pillow 2123203925

Mercedes W212 Airmatic Shock Absorber Rear Air Spring Air Pillow 2123203925 2123204025

Description: Mercedes W212 Airmatic Shock Absorber Rear Air spring Air Pillow 2123203925 2123204025

Model: For Mercedes W212 S212 212 320 07 25 212 320 08 25

OEM: Rear Left 2123200725 2123204325 2123203925 Right2123200825 2123204425

Condition: Brand New

Fitting Position: Rear Left and Right

Material: Rubber Steel Aluminum

Application: For Mercedes W212 S212 E-Class CLS-Class 2009-2015

Warranty: 12 months

Delivery: 3-7 days after receiving payment

Gross Weight: 4KG

Trade Term : FOB, CNF

Price: Factory Price

This air spring A2123202125 for your Mercedes E-Class (S212) corresponds to the original bellows from Mercedes Benz.
Manufactured under the specifications of the ISO / TS 16949: 2009 certification with appropriate test tests, this gives you a technically and qualitatively perfected product.

Can be installed in the following vehicles:

MERCEDES-BENZ E-CLASS T-Model (S212) 08.2009 - 12.2016
E 200 (212.234) 11.2012 - 12.2016
E 200 CDI / BlueTEC (212.205, 212.206) 11.2009 - 12.2016
E 200 CGI (212.248) 11.2009 - 12.2016
E 220 BlueTEC 4-matic (212.211) 12.2014 - 12.2016
E 220 CDI (212.202) 11.2009 - 12.2016
E 220 CDI / BlueTEC (212.202, 212.201) 11.2009 - 12.2016
E 250 (212.236) 11.2012 - 12.2016
E 250 CDI / BlueTEC (212.203, 212.204) 11.2009 - 12.2016
E 250 CDI / BlueTEC 4-matic (212.282, 212.297) 07.2010 - 12.2016
E 300 (212.254, 212.255) 10.2009 - 12.2016
E 300 4-matic (212.280) 07.2011 - 12.2016
E 300 CDI (212.220) 12.2009 - 12.2010
E 300 CDI / BlueTEC (212.227, 212.221) 11.2009 - 12.2016
E 300 Hybrid / BlueTEC Hybrid (212.298) 12.2011 - 12.2016
E 350 (212.256, 212.259) 08.2009 - 12.2014
E 350 4-matic (212.288, 212.287) 11.2009 - 12.2016
E 350 BlueTEC (212.224, 212.226) 11.2009 - 12.2016
E 350 BlueTEC 4-matic (212.294) 11.2012 - 12.2016
E 350 CDI (212.223, 212.225) 2011-07 11.2009 - 12.2013
E 350 CDI 4-matic (212.289, 212.293) 11.2009 - 12.2013
E 350 CGI (212.257) 11.2009 - 12.2011
E 400 (212.261) 07.2014 - 12.2016
E 400 4-matic (212.299) 12.2014 - 12.2016
E 500 (212.272, 212.273) 11.2009 - 12.2016
E 500 4-matic (212.291) 09.2011 - 12.2016
E 63 AMG (212.274, 212.275, 212.277) 08.2009 - 12.2016
E 63 AMG 4-matic (212.276, 212.292) 02.2011 - 12.2016

Original spare part number:

A2123203925, A2123202125, 2123203925, 2123202125

Scope of delivery:
Rear left air spring 212 320 39 25
Compressed air connection piece (VOSS 4mm) A 000 327 00 69
Spring washer A 212 324 00 84
Fastening clip A 001 991 11 71

Important:

- Never lower the vehicle with unfilled air springs!
- Check the air spring system for leaks.
- Completely lower the vehicle from the lift.
- Make sure after repair that the system is absolutely leakproof.
The easiest way to determine this is by parking the vehicle.
Wait for the automatic readjustment of the system if your vehicle has this function.
Measure all heights air supported and record from the ground to the lower edge of the mudguard.
Check at the next day and compare these heights.
Even a small deviation of the distances leads to permanent damage to the compressor and the valves.
