7L0616007E Compressor Air Suspension For Audi Q7 VW Touareg

Description : 7L0616007E Compressor Air Suspension For Audi Q7 VW Touareg

Model: For Audi Q7 VW Touareg

OEM: Front Left 2113209513 2113201938 Right 2113209613 2113202038

Condition: Genuine Remanufactured

Fitting Position: Front Left and Right

Material: Rubber Steel Aluminum

Application: Mercedes W211

Warranty: 12 months

Delivery: 3-7 days after receiving payment

Gross Weight: 6

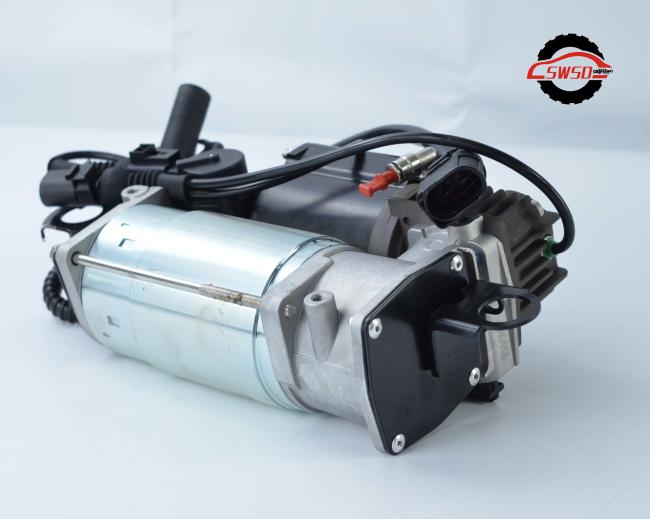

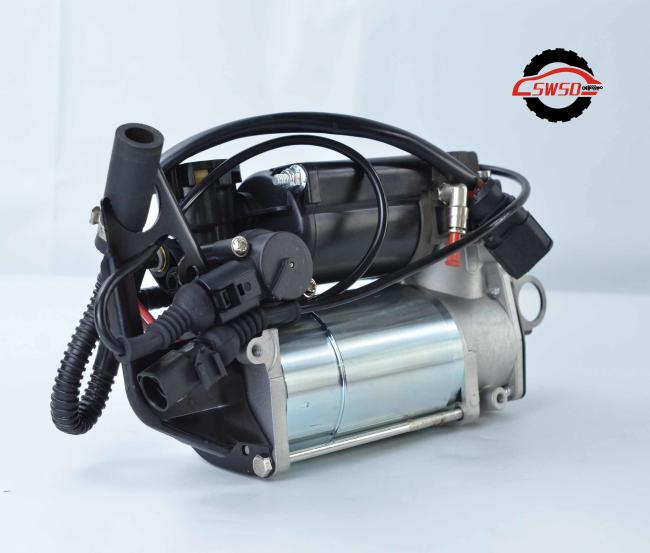

Detailed Images

Can be installed in the following vehicles: Volkswagen Touareg I Typ 7L (2002-2010)

Compressor without carrier part matching the original spare part numbers:

7L0698007D, 7L0698007E, 7L0698007, 7L0616006C, 7L0698007A, 7L0616007, 7L0616006, 7L0616006D, 7L0616006E, 7L0616006F, 7L0616006H, 7L0616007A, 7L0616007B, 7L0616007C, 7L0616007D, 7L0616007E, 7L0616007F, 7L0616007H, 7L0698007B, 7L8616006, 7L8616006D

Scope of delivery:

- Compressor
- Air line - compressed air line between compressor and valve
- Connection piece - pressure hose / valve
- Suction Hose
- Relay

CAUTION: The replacement of the relay is mandatory, otherwise the warranty on the compressor is forfeited!

Before you buy a compressor please keep in mind that the main reason a compressor fails is because there is a leak in the Air Suspension System causing the compressor to overwork and burnout. The most common cause for a leak in the system is an old leaky air spring bag. Your compressor warranty will be voided if air spring bags have not been recently replaced in your vehicle. We recommend that in order to maintain your Air Suspension System in optimal condition you purchase new air spring bags.


Our technical advice for the air supply device:

1. Change the relays before installing the compressor even if it seems to still work.
This is also a specification by the car manufacturer. Be sure to change the right relays.
Relays look similar, that is why there is a risk to change the wrong relays.
2. Be sure to check whether the system is leakproof after repairing.
The easiest way to do this is to park the vehicle. Wait for the system to automatically re-adjust if your car has this feature.
Then measure the heights from the ground to the lower edge of the fender as exactly as possible and take notes.
On the day after measure these heights again and compare them with the ones before. Even a small difference will lead to a damaged compressor and damaged valves in the long run.

When driving with a leaking suspension for a long time it needs to be assumed that the compressor is running more often than normal. The increased number of cycles of powering on and off is likely to already have damaged the compressor. Depending on the duration of that condition you should change the relays and check the performance of the compressor to be on the safe side. After the vehicle stood overnight the compressor normally doesn't need to run more than 20 to 30 seconds for the system to be ready to start.
