Automatic Cold Foil Stamping And Varnishing Digital Label Enhancer
Automatic Cold Foil Stamping and Varnishing Digital Label Enhancer

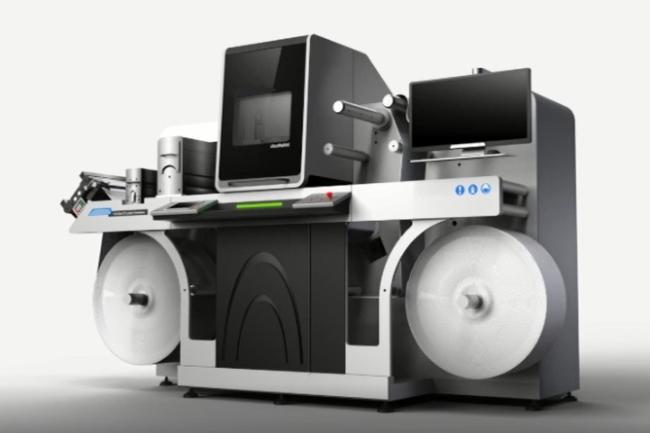

Model: EcooSpark
Product Description:

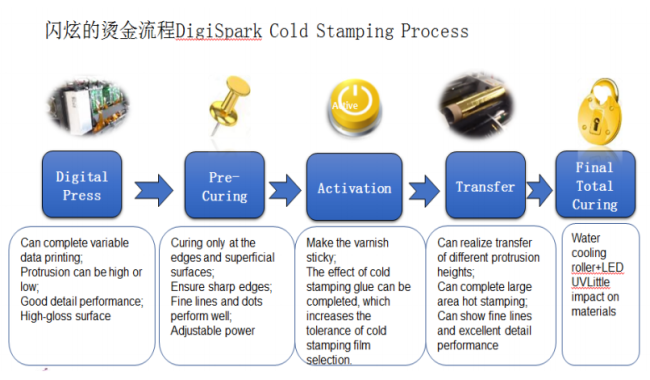

EcooGraphix's newly developed EcooSpark digital printing machine realizes digital synergistic processes such as digital varnish, 3D crystal bright, partial glazing, cold stamping, embossing, etc., without the need for plate making. It can reduce costs and instantly realize unique visual effects of printing. This is a digital post-press equipment that creates new profit points for users, and is a digital efficiency-enhancing printing machine.
Specification:
| Model | EcooSpark |
| Printing Technology | UV Piezo DoD(drop on demand)-inkjet |
| Resolution | 360*360 dpi, up to 1440*360 dpi |
| Printing speed | 6m/min - 50m/min(depend on polymer layer thickness) |
| Variable Image system | PDF, optimized PDF, Optional barcode system |
| Supported image standards | PDF,PDF/VT,TIFF, JPEG, BMP & other data base files |
| Substrates | Offset, Digital, Plastics, Laminated and coated substrates |
| Printing image width | 288mm (extendable to 330 mm) |
| Polymer | WB-DS-Clear Polymer |
| Polymer layer thickness | From 10 up to 250 microns |
| Ink curing | Inter UV-LED Pre-curing/Full curing by UV-LED |
| Unwinder diameter | Max. 700mm, Core 76mm |
| Rewinder diameter | Max. 700mm, Core 76mm |
| Substrates thickness | 30-400 micro |
| Substrates width | Max 330mm |
| Press with Foil station | Machine dimensions (LxHxW) 3500mmx1900mmx1800mm |
| Operating environment | Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity |
| Electrical requirements | Voltage: 3x380, ±5% 3 phases +G+N Frequency: 50/60 Hz Current: Avg. 58.6 Amps 23KW |
| Weight | 2800kg |

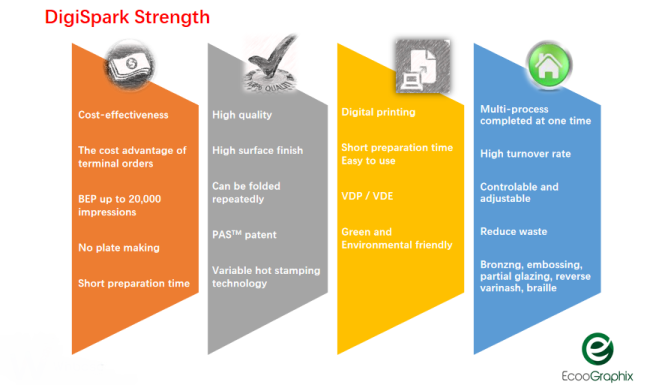

Features:
Sturdy structure (double wall panel design)
Thick and thin materials, stability, mature platform
High stability
Good material applicability
No heating required
LED UV+water cooling roller
Suitable for ordinary cold foil
High quality-details, sharp edges:
Less heat, higher stability
Patented technology-better detail performance
Multi-process completed at one time
Customizable
