EcooGraphix Digital Label Varnishing And Foil Stamping Machine Label Embellishment Equipment
Digital Label Varnishing And Foil Stamping Machine Label Embellishment Equipment

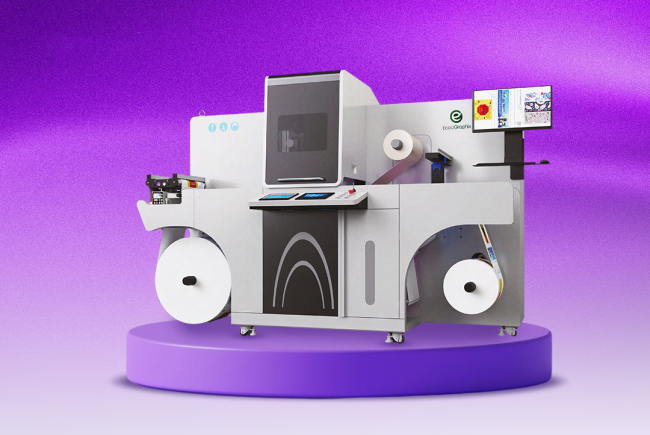

Model: EcooSpark
Product Description
EcooSpark integrates all sorts of digital enhancing process, such as digitalfoil stamping, digital varnishing, 3D crystal bright, etc.
It needs NO PLATE.
Cooperating with traditional printing, digital printing and other post-processesto realize unlimited label embellishment designs, it is a high efficiency,
low costand high value-added equipment and realize customization from small ordersto long orders.
1. All digital workflow, with fast set up time
2. Embossing effect is durable and does not deform
3. Unlimited embellishment design with variable data printing management
4. Immediate prior calculation of varnish consumption
5. High precision on registration
6. Modular design with options of laminating or flexo coating
Specification
| Model | EcooSpark |
| Printing Technology | UV Piezo DoD(drop on demand)-inkjet |
| Resolution | 360*360 dpi, up to 1440*360 dpi |
| Printing speed | 6m/min - 50m/min(depend on polymer layer thickness) |
| Variable Image system | PDF, optimized PDF, Optional barcode system |
| Supported image standards | PDF,PDF/VT,TIFF, JPEG, BMP & other data base files |
| Substrates | Offset, Digital, Plastics, Laminated and coated substrates |
| Printing image width | 288mm (extendable to 330 mm) |
| Polymer | WB-DS-Clear Polymer |
| Polymer layer thickness | From 10 up to 250 microns |
| Ink curing | Inter UV-LED Pre-curing/Full curing by UV-LED |
| Unwinder diameter | Max. 700mm, Core 76mm |
| Rewinder diameter | Max. 700mm, Core 76mm |
| Substrates thickness | 30-400 micro |
| Substrates width | Max 330mm |
| Press with Foil station | Machine dimensions (LxHxW) 3500mmx1900mmx1800mm |
| Operating environment | Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity |
| Electrical requirements | Voltage: 3x380, ±5% 3 phases +G+N Frequency: 50/60 Hz Current: Avg. 58.6 Amps 23KW |
| Weight | 2800kg |
Label Applications
EcooSpark is compatible with all sorts of label printing applications,digital printing, flexo printing, offset printing and etc.
EcooSpark can apply any substrates for all kinds of labels.

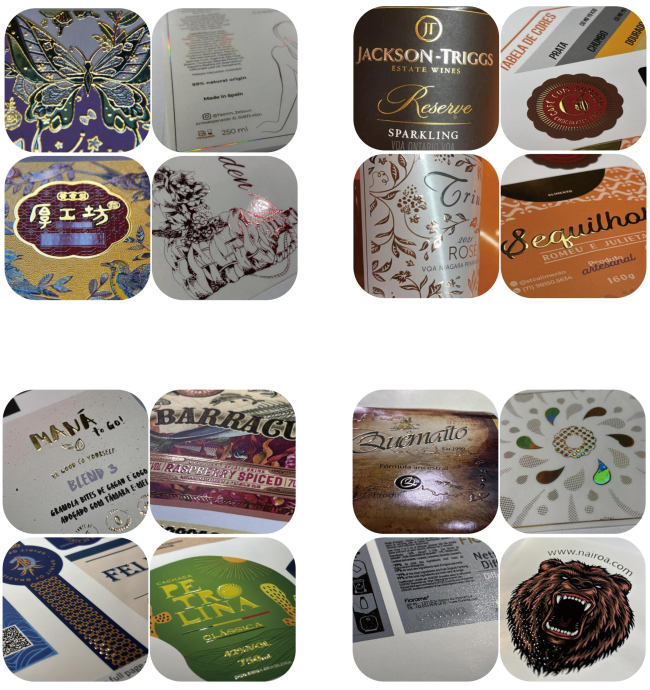

Label Sample From Our Brazilian End-user Customer
Different Foils Available For Cold Stamping
More Details:
Workflow:
Advantages:
FAQ:
1. What are the postpress effects achieved by this machine?
Cold foil stamping, varnishing, 3D shining and embossing.
2. Can this model do color printing?
No. If you need a hybrid label printing machine which can do both printing and postpress printing, you can consider our other models. Please consult our sales.
3. How about the lead time and payment term?
We need 45 days to produce this machine. Normally our payment term is 30% deposit and 60% balance before shipment and 10% after installation.
4. How about the installation and operation training?
Our senior will fly to your location to do installation and training. It takes about 2 weeks. The service is free of charge but we will need the buyer to take the round trip freight and local hotel and meal cost.
5. Can you do the sample as we required?
Yes, we can sample your artwork on your specified printing substrate and then courier to you. and also shoted the printing procedure for your reference.
6. Is the machine printing white?
No. This is not a color printing machine. It is more like a varnish-jet postpress machine.
7. Is the machine all digital? What are the other similar machines in the markets?
Yes, all postpress procedures are digital, without any blanket or flexo plate. Just similar to Domino, HP, Epson and screen related products. But much more affordable.
