Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness
Price:
$180000
MOQ:
1 set
Delivery Time:
30 -60 days
Brand:
Ecoospark
Product Description
Label Digital Embellishment Machine for Roll-to-Roll Processing
This specialized finishing machine enhances printed label rolls with foil stamping and varnishing capabilities, transforming standard labels into premium products.
ECOOSPARK Digital Embellishment Machine
Advanced Digital Finishing Solution
The Ecoospark represents a breakthrough in digital embellishment technology for roll-to-roll label processing. This fully digital system delivers cold foil stamping and precise varnishing using drop-on-demand technology, offering unmatched flexibility and rapid job turnover.
Key Features
- Konica Minolta printing heads for superior precision
- Varnish layer thickness range: 10-150 microns per pass
- Braille printing capability (300 micron relief via two-pass processing)
- Multi-layer effects including 3D case gold and braille printing
Operational Advantages
- Unlimited design possibilities
- Fast setup time with no tools required
- Automatic varnish ink cleaning system
- Immediate varnish consumption calculation
- Optional laminating or flexo coating
- No special treatment needed for overprinting
Specialty Finishing Effects
- Spot UV Varnishing
- Digital Cold Foil Stamping
- 3D Emboss Shining
- Variable Data Processing
- Braille Printing
Finishing Effect Showcase
| Effect Type | Example 1 | Example 2 |
|---|---|---|

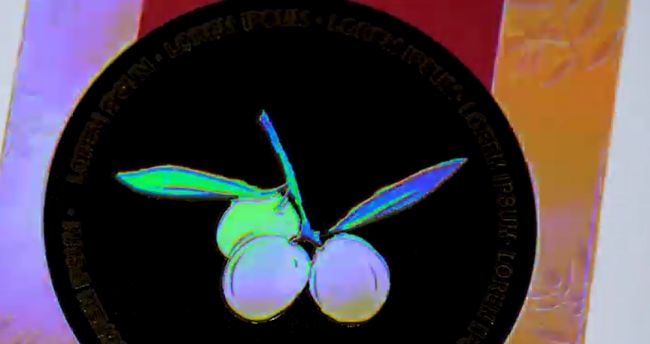

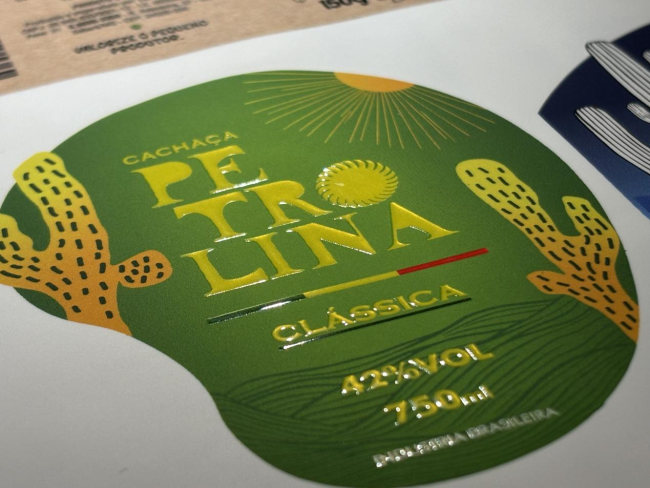

| Spot varnishing |  |
 |

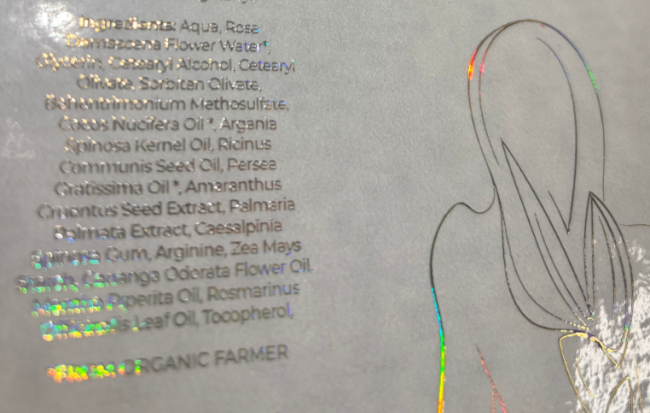

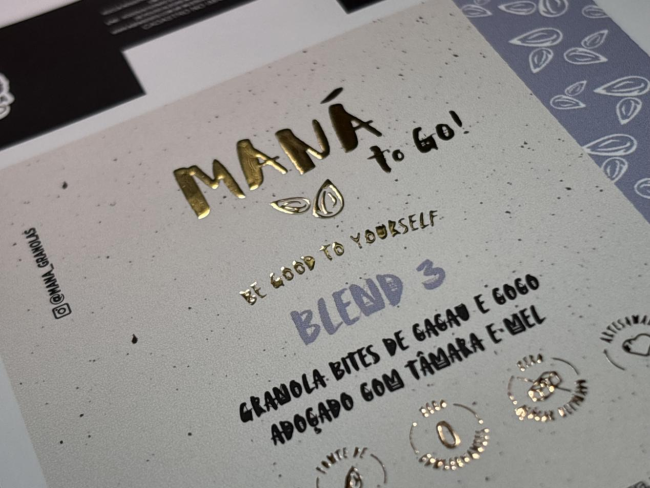

| Cold foil stamping |  |
 |

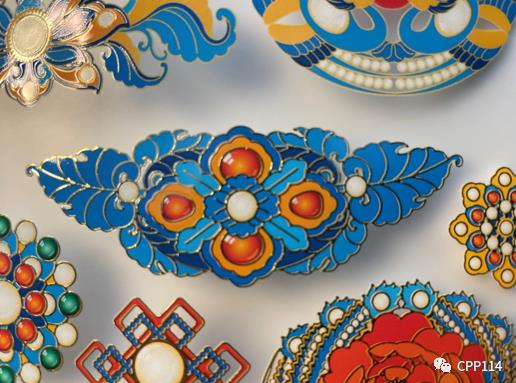

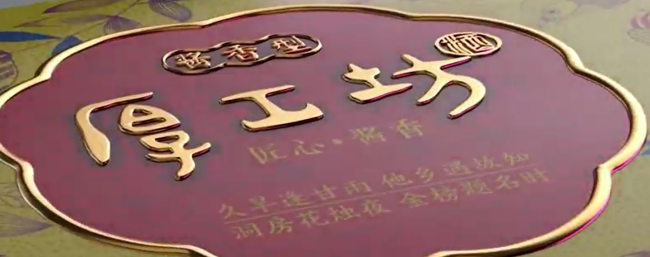

| 3D embossing |  |
 |

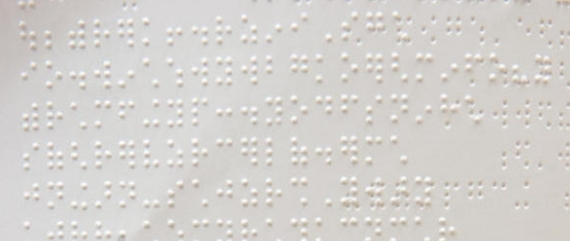

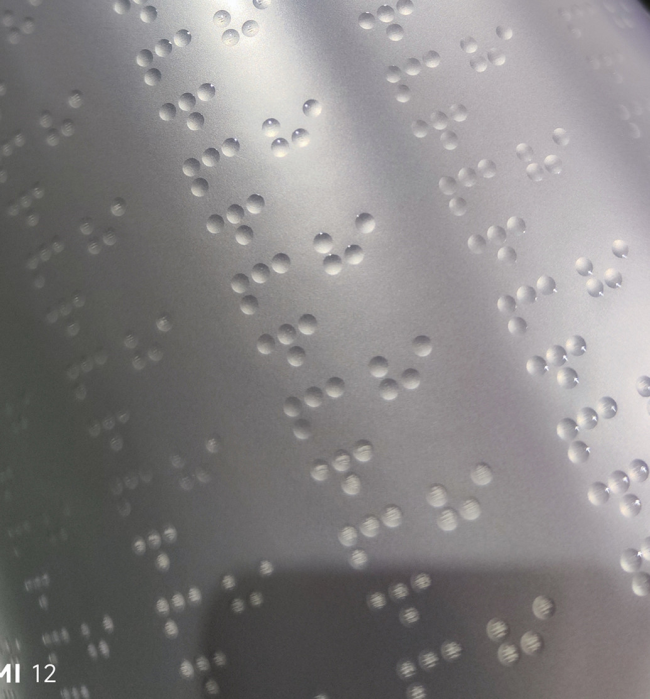

| Braille |  |
 |
Technical Specifications
| Specification | Ecoospark 330 | Ecoospark 288 |
|---|---|---|
| Printing Technology | UV Piezo DoD (drop on demand)-inkjet | |
| Resolution | 360*360 dpi, up to 1440*360 dpi | |
| Printing speed | 10m/min - 60m/min (dependent on polymer layer thickness) | |
| Variable Image system | PDF, optimized PDF, Optional barcode system | |
| Supported image standards | PDF, PDF/VT, TIFF, JPEG, BMP & other database files | |
| Substrates | Offset, Digital, Plastics, Laminated and coated substrates | |
| Printing image width | 330mm * 10m (Length) | 288mm * 10m (Length) |
| Polymer | WB-DS-Clear Polymer | |
| Polymer layer thickness | From 10 up to 200 microns | |
| Ink curing | Inter UV-LED Pre-curing/Full curing by UV-LED | |
| Unwinder diameter | Max. 700mm, Core 76mm | |
| Rewinder diameter | Max. 700mm, Core 76mm | |
| Substrates thickness | 30-400 micron | |
| Substrates width | Max 330mm | Max. 288mm |
| Press with Foil station | Machine dimensions (L*H*W): 3500mm*1900mm*1800mm | |
| Operating environment | Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity | |
| Electrical requirements | Voltage: 3*380, ±5% 3 phases +G+N; Frequency: 50/60 Hz; Current: Avg. 25 Amps | |
| Weight | 3000kg | 2700kg |
