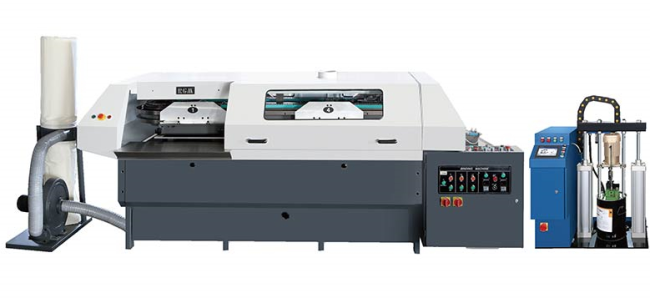

4 Clamp Elliptical EVA Book Binding Machine with Four Book-Clamp Chains Eco-Friendly Design and Advanced Upper-Sealing Mechanism

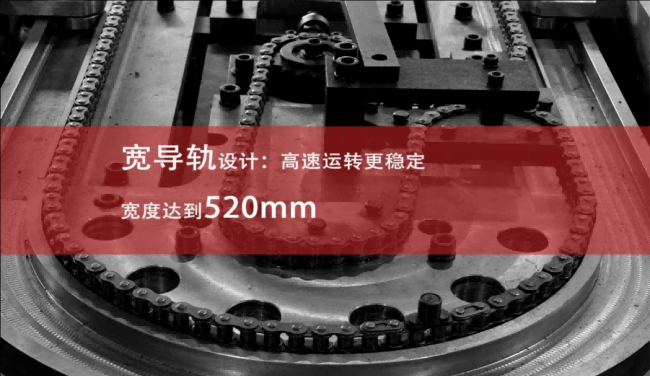

The TBT50/4D elliptical perfect binder is an eco-friendly perfect binder designed for the 21st century. It features a drive system with four book-clamp chains, which eliminates the excessive drive inertia and intermittent malfunctions between shafts commonly found in traditional disc-type perfect binders.
The machine applied EVA glue binding only, no option of PUR binding or back stripping.
At present, it is the most advanced one among the international similar machines, and the upper-sealing clamp mechanism has won several national patent.
This machine is offered the book core by manpower, and au-tomatically finishes 10 procedures below:
1. Milling back;
2. Opening groove;
3. Back mucus coating;
4. Side mucus coating;
5. Cover and book core compossing;
6.Cover impressing7.Cover packing;
Finshed-product output8.
9. Book spine pressing;
10. Cooling, till final nice products.
PUR glue spraying device, with back glue and side glue at the same time
Optional large cover table, cover length up to 640mm.
|
4 Clamps PUR Automatic Book Binding Machine |
|
|
Binding Size |
Max:450X320mm ; Min:150X105mm |
|
Binding thickness |
2-50mm |
|
Binding speed |
Max:2000 Books/ Hour |
|
Cover Size |
Max. 640*450mm |
|
Cover Weight Range |
Normal Paper 81.4 to 302.4 gsm Coated Paper 104.7 to 348.9 gsm |
|
Power required |
13Kw |
|
Weight |
2100Kg |
|
Dimensions |
3100x1300 x1250mm |
This machine integrates multiple advanced technologies including variable frequency speed control, PID temperature regulation, photoelectric recognition systems, and automatic fault detection. Equipped with imported electrical and pneumatic components, it delivers exceptional reliability, user-friendly operation, and easy adjustment. The integrated paper suction system further enhances its functionality, making it suitable for both wired and wireless binding processes. It is an ideal solution for wireless or wired binding applications in small-to-medium printing facilities as well as professional printing institutions.
Heavy-duty type:
Major characteristics of double column-guided twin-cam upper-sealing mechanism
1.Strong wearing resistance
2.High precision
3. Great clamp force
4. Steady top down
5. Indeformable front andbackclamp plates
