Polished Metal UV Printing Rubber Blanket 1.97mm Thickness
Long Duration Rubber Blanket For Package And Metal UV Printing
♥ High cost-effective. Our most economic blanket model as well as most popular seller, could satisfy 85% printing jobs.
♠ High compressive ability, which allows many types and printing material in different thickness.
♦ Wide range printing, prefers package printing on carton in moderate speed.
♣ Be excellent in the action of absorbing a shock such as a mechanical impact.
♥ Prevent the material to be printed from winding around the blanket cylinder.
2. Specification
Construction
Thickness
Color
Compressible
Surface
Roughness
Hardness
Elongation
Tensile Strength
| Model | ECOO-BL-UV |
| Construction | 4/3 ply fabric |
| Thickness | 1.97/1.70 ± 0.02mm |
| Color | Jacinth |
| Compressible | Microspheres |
| Surface | Micro-ground and polished |
| Roughness | 0.8 - 1.0μm |
| Hardness | 76 - 82 shore A |
| Elongation | ≤ 0.9% |
| Tensile Strength | ≥ 85 |
3. Application
See below image. The blanket is used to cover the blanket cylinder(the intermediate cylinder)
It is suitable for UV printing with UV ink. So the finish products are package printing products, like carton, can, board, advertisement, which is excellent in color presence and usually with vanish coating.
4. Structure And Aluminum Bar

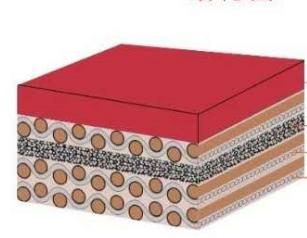

The printing blanket normally includes 3 layers as above:
A: a base non-woven fabric or a spun bonded non-woven fabric layer which is assigned to the printing cylinder;
B: a soft, highly resilient void-free compressible intermediate rubber layer which has closed gas pores;
C: an outer-lying void-free layer of an elastomeric layer which faces toward the printing material.
Aluminum Bar
We can offer blanket with or without bar, depending on customers' inquiry.
$5 for each pair of bars.
Please let us know the machine model or bar size if you need blanket with bars.
5. Characteristics
6. Packaging And Maintenance
Packaging
We offer blanket in any sizes in sheet or in roll as below:
The blankets will be rolled and packed in polymer bag and carton with enough protective layers.
The customer can decide the content of back side, usually the logo or size.

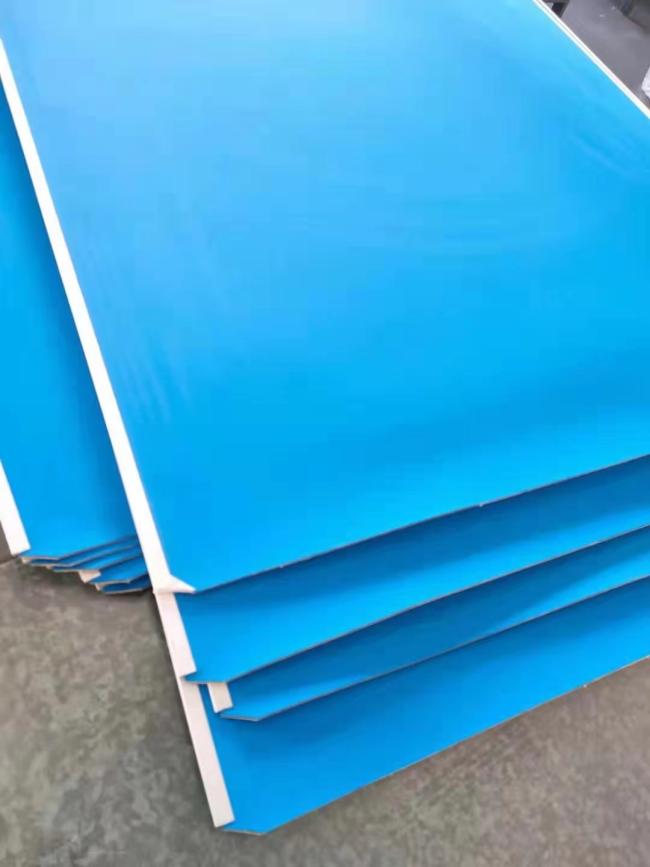

Blanket In Sheet
Blanket In Roll
Maintenance
Clean the blanket with fast volatile organic solvents.
Clean rolls when ink color changing or refilling.
Release the blanket off the cylinder when the printing machine stopped for a long time.
New blankets should be stored in dry and cool place covered with dark layer.
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
7. Certificates
8. FAQ
Q1: Do you offer free sample ? How long is the sample time of the shipping ? Does the sample fee can be returned ?
A: Since blanket is high value, we did not offer free sample. But we can offer favorable discount. It will take 5 days to prepare sample. If you place formal bulk order, we will refund the sample fee and courier cost.
Q2: About the sample what is the cost of transportation ?
A: The freight depends on weight, packing size and your country or province region, etc.
Q3: How long can I expect to get the sample ?
A: The sample will be ready for delivery in 3-5 days and will be sent via international express such as DHL, UPS, TNT, FEDEX and would be arrived within 3-5 days.
Q4: Where is your factory ?
A: Our factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
