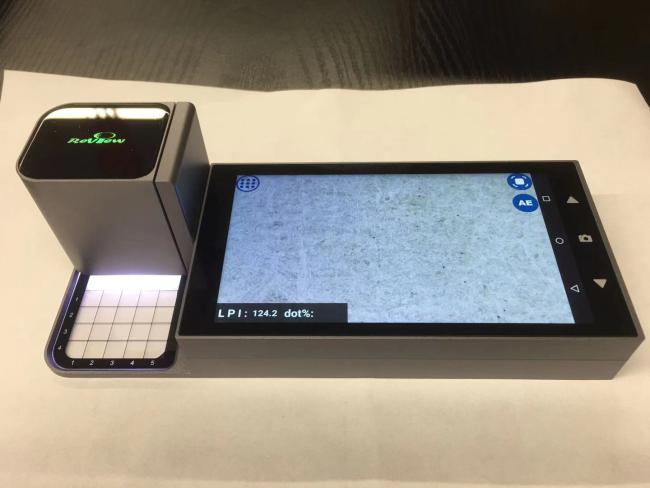

720HD Screen CTP Plate Offset Printing Densitometer 16G Storage
Offset Printing Prepress DOT Densitometer For CTP Plate
ி Brief Introduction
Dot mainly expresses hue and gradation in printing industry. They are foundation of copy and color reproduction of printed products.
The advanced dot measurement technology is used for detecting and controlling plate and quality of dot. It supports all kinds of screening technologies used at present including amplitude screening, frequency modulation screening, specialized screening and hybrid screening technology.
ி Specification
Model
Ecoo Densitometer
Magnification
5-200
Screen
720P HD LCD touchable screen
Operation System
Android 5.0
Digital Zoom
2
Image Format
BMP
Net Weight
300g
Set Weight
500g
Image Size
1280*720
Lighting
White light LTD*8pcs
Measuring Time
1 s
Repeatability
± 0.02 D(density), ± 1%(dot area)
Interface
Micro USB 2.0, HDMI
Storage
16GB
ROM
2GB
Battery Capability
3200mAh
Battery Type
Rechargeable lithium battery
Network
WIFI
Dimension
185*70*55 mm
Sensor
CMSO 1.3 megapixel
| Densitometer | |
| Model | Ecoo Densitometer |
| Magnification | 5-200 |
| Screen | 720P HD LCD touchable screen |
| Operation System | Android 5.0 |
| Digital Zoom | 2 |
| Image Format | BMP |
| Net Weight | 300g |
| Set Weight | 500g |
| Image Size | 1280*720 |
| Lighting | White light LTD*8pcs |
| Measuring Time | 1 s |
| Repeatability | ± 0.02 D(density), ± 1%(dot area) |
| Interface | Micro USB 2.0, HDMI |
| Storage | 16GB |
| ROM | 2GB |
| Battery Capability | 3200mAh |
| Battery Type | Rechargeable lithium battery |
| Network | WIFI |
| Dimension | 185*70*55 mm |
| Sensor | CMSO 1.3 megapixel |
ி Characteristics

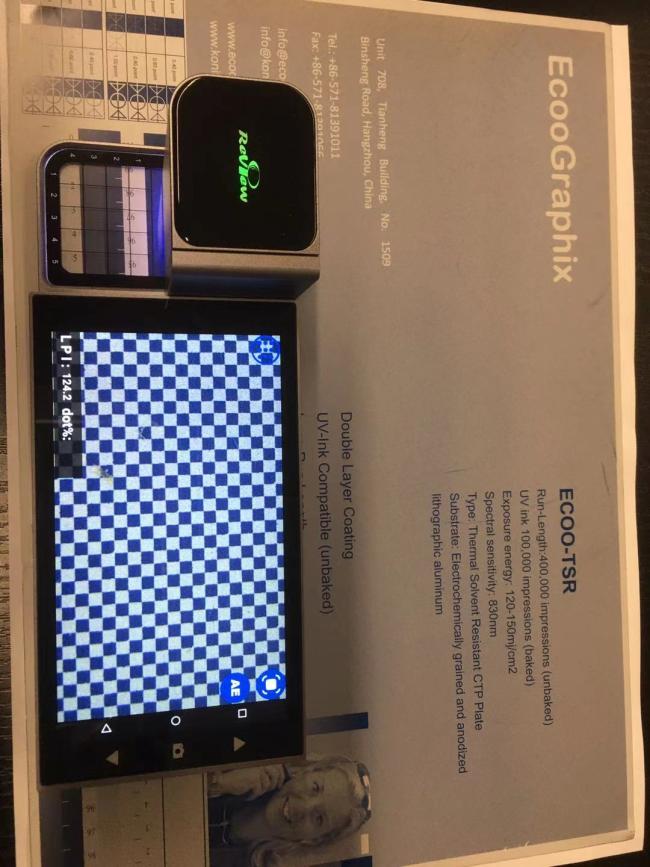

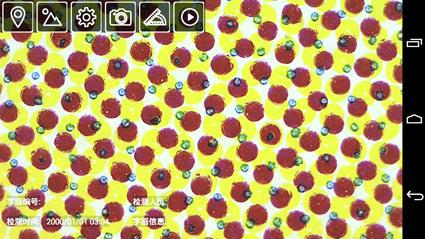

♠ Real time HD shootin g of micro image dots for reveal reduction quality of dots in detail.
♦ Measurement APP is equipped with advanced image processing technology that ensures precise measure data, and eight measuring instruments for satisfying measurement of not only daily dot ratio and screening lines, but also measuring of length, angle and area of dots and lines.
♣ Electronic precise focusing with step motor to coordinate lens for a sharply clear focusing.
♥ Convenient data storage through built-in one-button shoot.

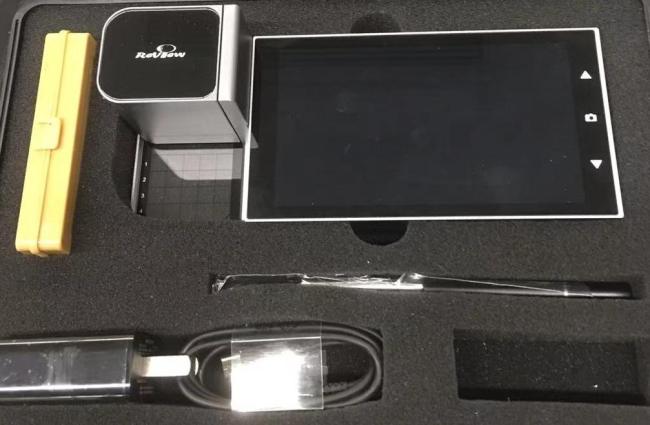

ி Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
ி Certificates
ி FAQ
A: Our main products are the Prepress CTP System(4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor) and Post Press Packing Equipments(Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching Machine, Book Binding Machine and so on) and the Printing Consumables(Offset Printing Plates, Inks, Printing Blankets, Plate Dot Densimeter).
2) Where is your factory ?
A: Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai.
3) What is your warranty for the CTPs ?
A: Three years' laser head and main spare parts for the CTPs, one year for the processor.
4) What is the lead time ?
A: Usually 20-30 days, and we will try our best to meet your demands.
5) Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.
6) What about the installation and after-sales technician support ?
