48 Channel Positive 830nm CTP Plate Machine Commercial Printing
4UP Thermal CTP Plate Making Machine With Semi-auto Plate Loading Function(Offline)
§ Application
EcooGraphix Thermal CTP(Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly though the CTP machine and save the film and labor.
EcooGraphix T-400 series thermal CTP are for A1, A2 or B2 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual, very easy to use. By EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.
§ Specification
ECOO T-400 Series Thermal CTP Machines
Model
T-400F, T-400S, T-400E
Exposing Method
External drum
Imaging System
48-channel, 32-channel, 24-channel, Discrete 830nm laser diode
Throughput
28plates/hour, 22plates/hour, 16plates/hour, 800mm x 690mm, 2400dpi
Plate Sizes
Max. 800mm x 660mm, Min. 400mm x 300mm
Exposing Size
Max. 800mm x 646mm, Min. 260mm x 284mm
Media Type
Positive 830nm thermal CTP plate
Plate Thickness
0.15mm to 0.30mm
Resolution
2400dpi
Repeatablity
±5μm (Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface
USB 2.0
Plate Loading
Semi automatic
Net Weight
800kg
Machine Size(WxLxH)mm
1900 x 1200 x 1000
Power Supply
Single phase: 220AC, + 6%, - 10%, Power consumption: 4kw
Environment
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%
| ECOO T-400 Series Thermal CTP Specifications | |||
| Model | T-400F | T-400S | T-400E |
| Exposing Method | External drum | ||
| Imaging System | 48-channel | 32-channel | 24-channel |
| Discrete 830nm laser diode | |||
| Throughput | 28plates/hour | 22plates/hour | 16plates/hour |
| 800mm x 690mm, 2400dpi | |||
| Plate Sizes | Max. 800mm x 660mm; Min. 400mm x 300mm | ||
| Exposing Size | Max. 800mm x 646mm; Min. 260mm x 284mm | ||
| Media Type | Positive 830nm thermal CTP plate | ||
| Plate Thickness | 0.15mm to 0.30mm | ||
| Resolution | 2400dpi | ||
| Repeatablity | ±5μm (Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%) | ||
| Interface | USB 2.0 | ||
| Plate Loading | Semi automatic | ||
| Net Weight | 800kg | ||
| Machine Size(WxLxH)mm | 1900 x 1200 x 1000 | ||
| Power Supply | Single phase: 220AC, + 6%, - 10%, Power consumption: 4kw | ||
| Environment | Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70% | ||

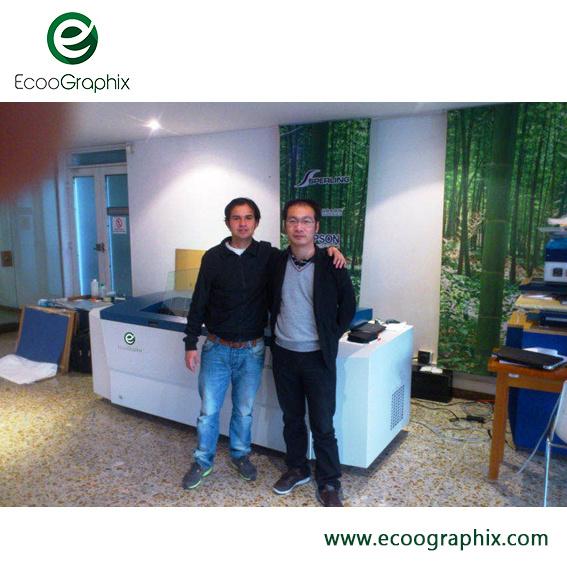

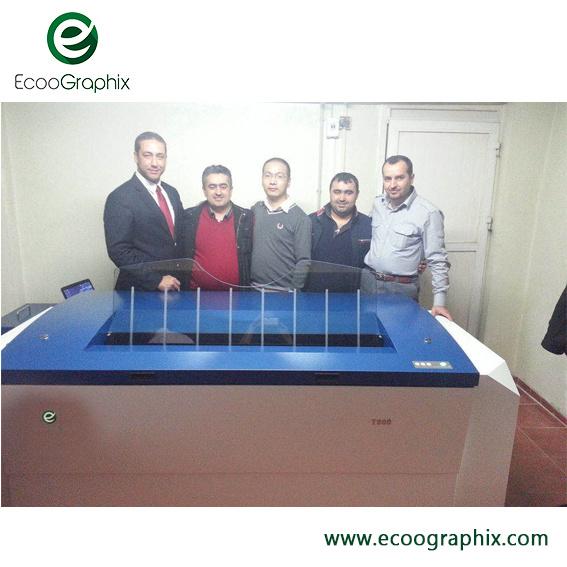

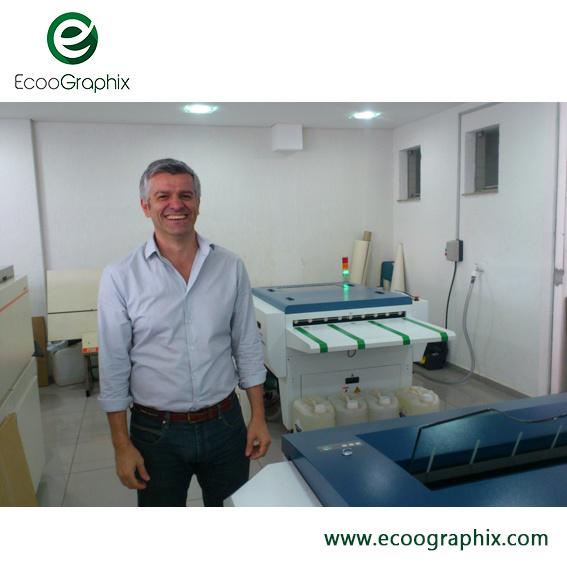

§ Success Cases
§ Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
§ Certificates
Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor), and Post Press Packing equipments (Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching machine, Book Binding machine and so on) and the Printing consumables(Offset Printing Plates, inks, printing blankets, Plate dot densimeter) .
Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcome to visit our factory!
3. What is your warranty for the CTPs ?
Three years' laser head and main spare parts for the CTPs, one year for the processor.
4. What is the lead time?
Usually 20-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.
6. What about the installation and after-sales technician support?
