2 Layer Negative Printing Plates 0.30mm Chemistry Free CTP Plate
Ecoographix Negative Printing Plate Chemistry Free CTP Plate

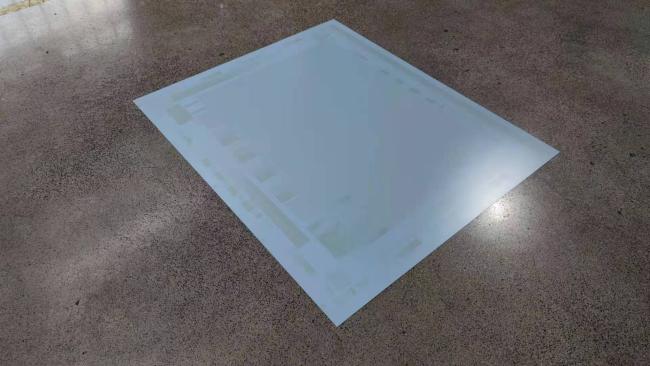

EcooGraphix ECOO-G is a new, environmentally friendly, Development On Press CTP plate. It can be run directly on a printing press after imaging, without a need for chemical processing.
----- ☆ ----- ▒ ----- ★ ----- ▒ Characteristic ▒ ----- ★ ----- ▒ ----- ☆ -----
ECOO-G is double layer, and the emulsion layer will not dissolve into water, so it will not integrate into fountain solution; while the protection layer is well water-soluble, and it will be easy dissolved into the fountain solution.
----- ☆ ----- ▒ ----- ★ ----- ▒ Structure ▒ ----- ★ ----- ▒ ----- ☆ -----
ECOO-G has 2 layers: emulsion layer and protection layer.
----- ☆ ----- ▒ ----- ★ ----- ▒ Techinical Data ▒ ----- ★ ----- ▒ ----- ☆ -----
ECOO-G
Plate Type
Non-ablation thermal-negative type
Application
High grade commercial and newspaper printing
Substrate
Electrolyte graining and anodized AL substrate
Thickness
0.15mm/ 0.30mm
Spectrum Scope
800-850nm
Platesetter
Various dominant thermal platesetters in the market
Low-energy Imaging
130-150mj/cm²
The Period Of Latent Image Stabilization
≤ 7 Days
Recommended Screen Method
1-99 @200Lpi AM/20u FM and mixture
The Paper Number Of Start-up
< 50 Sheets
Safety Light
1 Hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light
Processing
Without processing, directly on press
Run Length
100,000 impressions, actual run length depends on printing conditions
Baking
No recommended
| Model | ECOO-G |
| Plate Type | Non-ablation thermal-negative type |
| Application | High grade commercial and newspaper printing |
| Substrate | Electrolyte graining and anodized AL substrate |
| Thickness | 0.15mm/ 0.30mm |
| Spectrum Scope | 800-850nm |
| Platesetter | Various dominant thermal platesetters in the market |
| Low-energy Imaging | 130-150mj/cm² |
| The Period Of Latent Image Stabilization | ≤ 7 Days |
| Recommended Screen Method | 1-99 @200Lpi AM/20u FM and mixture |
| The Paper Number Of Start-up | < 50 Sheets |
| Safety Light | 1 Hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light |
| Processing | Without processing, directly on press |
| Run Length | 100,000 impressions, actual run length depends on printing conditions |
| Baking | No recommended |
| Characteristics | |
| Negative non-ablation photosensitive system | |
| Compatible with the dominant devices in the market | |
| Can be printed directly on the machine without any processing steps after scanning by thermal CTP platesetter | |
| Good dot reproduction, stable performance, wide processing latitude | |
| Long stability of latent image, can be stored at least a week after plate-making | |
| High quality aluminum substrate, professional coating formulation | |
| Application | |
| Suitable for sheet-fed offset press or high speed rotary offset press | |
| Run length: 100,000 impressions | |
| Suitable for different types of traditional inks and fountain solutions, including alcohol's substitutes as fountain solutions | |
| Unsuitable to improve run length by baking plates | |
| Transportation And Storage | |
| Packed in seal and stored by means of preventing from light/moisture, over heat and high humidity. | |
| Recommended conditions: 18ºC~24ºC, 40%~50% RH. | |

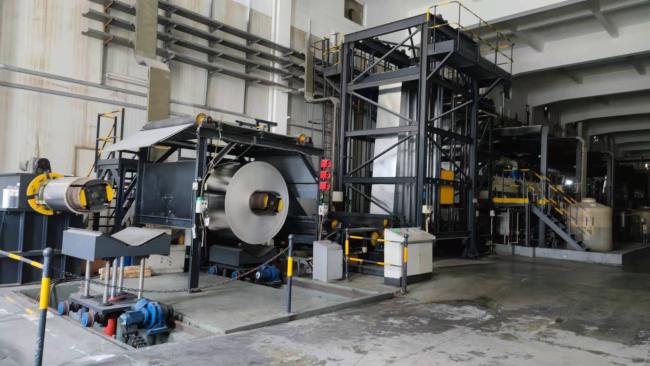

----- ☆ ----- ▒ ----- ★ ----- ▒ Producing And Packaging ▒ ----- ★ ----- ▒ ----- ☆ -----
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
----- ☆ ----- ▒ ----- ★ ----- ▒ Certifications ▒ ----- ★ ----- ▒ ----- ☆ -----
----- ☆ ----- ▒ ----- ★ ----- ▒ FAQ ▒ ----- ★ ----- ▒ ----- ☆ -----
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many square meters CTP plates can feed one 20' container ?
A: About 20,000-25,000sqm.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
