Small Output Automatic Digital Label Printing And Cutting Machine

Price Negotiable

Price: Negotiable

MOQ: 1 Set

Delivery Time: 30 Days

Brand: EcooGraphix

Product Description

Small Output Automatic Digital Label Printing And Cutting Machine

★ ----- ☆ ----- ★ ----- ☆ ----- ★ ----- ☆ ----- Introduction ----- ☆ ----- ★ ----- ☆ ----- ★ ----- ☆ ----- ★

An entry level speed uv ink jet label printing machine all in one including CMYK, white, varnishing, hit foil stamping, die cutting, laminting and slitting machine. It is a very innovative, low-investment, full-featured digital label printer.

ECOO Label IQ-330 printing and cutting intergrated machine can print CMYK, white inks and varnish on paper, adhesive materials, and flexible packaging plastic films. It also integrates downstream processes like stamping, die-cutting, laminating, and slitting. This makes it a cost effective one stand solution for printing cards, small-batch production, and custom labels.

★ ----- ☆ ----- ★ ----- ☆ ----- ★ ----- ☆ ----- Specification ----- ☆ ----- ★ ----- ☆ ----- ★ ----- ☆ ----- ★

Digital Label Printing Machine

Model

ECOO Label IQ-330

Max. Roll Diameter

350mm

Max. Media Width

330mm

Print Head

EPSON i3200-U1x4

Ink Type

UV ink

Ink Color

CMYK+W+V

Ink Bottle Capacity

Print Speed

4pass: 56m/h; 6pass: 40m/h; 8pass: 28m/h

File Format

JPG/ PNG/ PDF

Max. Cutting Length

800mm

Cutting Width

10-320mm

Repeat Die-cutting Accuracy

± 0.1mm

Number Of Die-cutting Heads

Number Of Slitting Knives

Standard 3(optinal according to requirements)

Power Consumption

4kw

Power Supply

AC220-240V, 50-60Hz

Weight

2000kgs

Printer Size

2500mm*1800mm*1700mm

Laminating Specification

Wide 330mm

Gold Foil Standard

Hot foil stamping

Printing Resolution

720*1200; 720*1800; 720*2400

Max. Printing Width

330mm

Digital Label Printing Machine
Model	ECOO Label IQ-330
Max. Roll Diameter	350mm
Max. Media Width	330mm
Print Head	EPSON i3200-U1x4
Ink Type	UV ink
Ink Color	CMYK+W+V
Ink Bottle Capacity	1L
Print Speed	4pass: 56m/h; 6pass: 40m/h; 8pass: 28m/h
File Format	JPG/ PNG/ PDF
Max. Cutting Length	800mm
Cutting Width	10-320mm
Repeat Die-cutting Accuracy	± 0.1mm
Number Of Die-cutting Heads	2
Number Of Slitting Knives	Standard 3(optinal according to requirements)
Power Consumption	4kw
Power Supply	AC220-240V, 50-60Hz
Weight	2000kgs
Printer Size	2500mm1800mm1700mm
Laminating Specification	Wide 330mm
Gold Foil Standard	Hot foil stamping
Printing Resolution	7201200; 7201800; 720*2400
Max. Printing Width	330mm

★ ----- ☆ ----- ★ ----- ☆ ----- ★ ----- ☆ ----- Features ----- ☆ ----- ★ ----- ☆ ----- ★ ----- ☆ ----- ★

♥ Integrated Versatility:

One Machine, lnfinite Possibilities. ECOO Label IQ-330 combines printing, laminating, cutting, and slitting in one device, simplifying and enhancing your production process.

♠ Excellent Printing Performance:

Whether it's white, varnish, or colored UV inks, the ECOO Label IQ-330 provides excellent printing effects on various media, making your labels stand out on the shelf.

♦ High Precision Cutting:

With ball screws and independent servo motors, it achieves +/-0.1mm cutting accuracy for flawless labels.

♣ Wide Range Of Applications:

From food packaging to electronic product identification, from cosmetic labels to industrial data encoding, the ECOO Label IQ-330 can easily handle it all.

★ --- ☆ --- ★ --- ☆ ---- ★ ---- ☆ ----- Details ----- ☆ ---- ★ ---- ☆ --- ★ --- ☆ --- ★

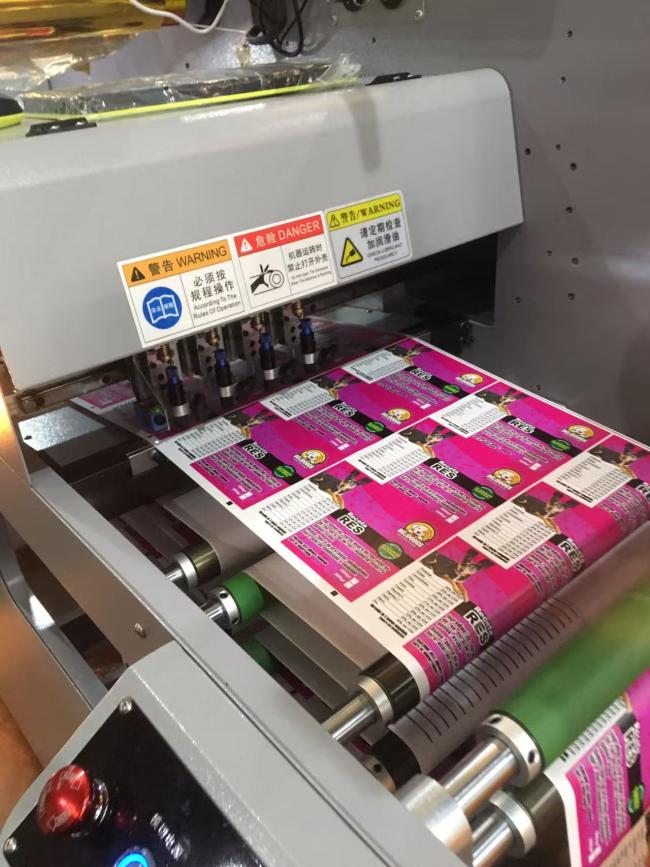

Printing Unit:

Equipped with 4 EPSON I3200-U1 print-heads. It enables high-speed printing of four colors plus white and gloss varnish, enhancing label texture and visual appeal. It handles both small and large orders with ease.

Buffer:

The buffer stores label design data in real time and auto compensates for speed differences between printing and cutting, preventing film stretching, deformation, or wrinkle formation.

Cutting Unit:

The cutting unit uses servo motors controlled pressure, eliminating manual adjustment. Reducing downtime and boosting production efficiency.

Automatically Control:

Self-developed interface enables color, speed, and data base integration, making the entire process easy to learn and operate.

★ --- ☆ ----- ★ ----- ☆ ----- ★ ----- ☆ ----- Producing And Packaging ----- ☆ ----- ★ ----- ☆ ----- ★ ----- ☆ --- ★

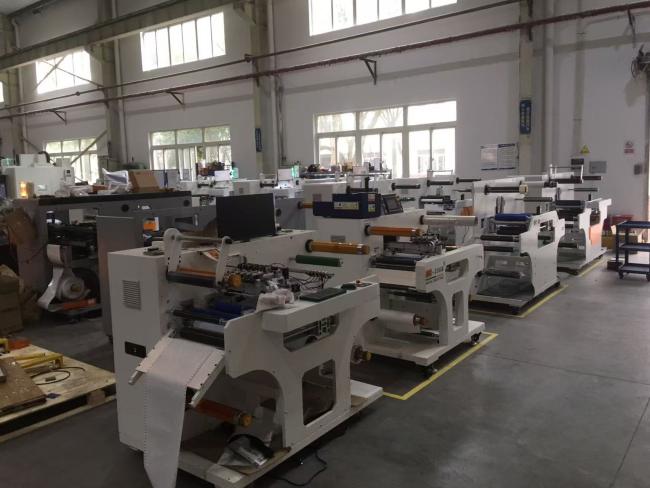

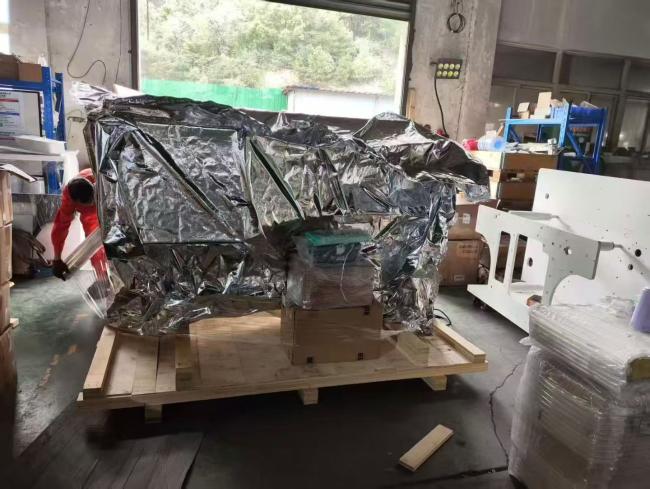

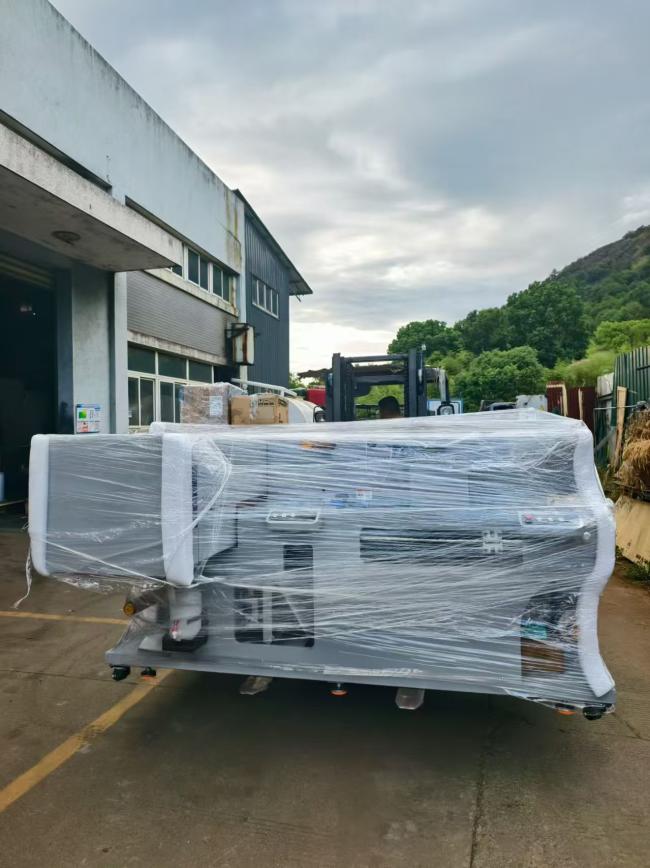

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

★ ----- ☆ ----- ★ ----- ☆ ----- ★ ----- ☆ ----- Certificates ----- ☆ ----- ★ ----- ☆ ----- ★ ----- ☆ ----- ★

★ ----- ☆ ----- ★ ----- ☆ ----- ★ ----- ☆ ----- FAQ ----- ☆ ----- ★ ----- ☆ ----- ★ ----- ☆ ----- ★

Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory ?

A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!

Q3: How long is the lead time ?

A: The lead time is normally 30 days. We can accelerate for emergency cases.

Q4: Is there any certification for your machine ?

A: Yes, all our machines have been certified by SGS and CE.

Q5: How long is the warranty period ?

A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.

Q6: What is your normal payment term ?

A: Normally, 30%TT deposit, 70% before shipping, or LC at sight.

Q7: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
