Digital Roll Wine Paper Label Custom Sticker Varnishing Foil Stamping Machine
Digital Roll Wine Paper Label Custom Sticker Varnishing Foil Stamping Machine

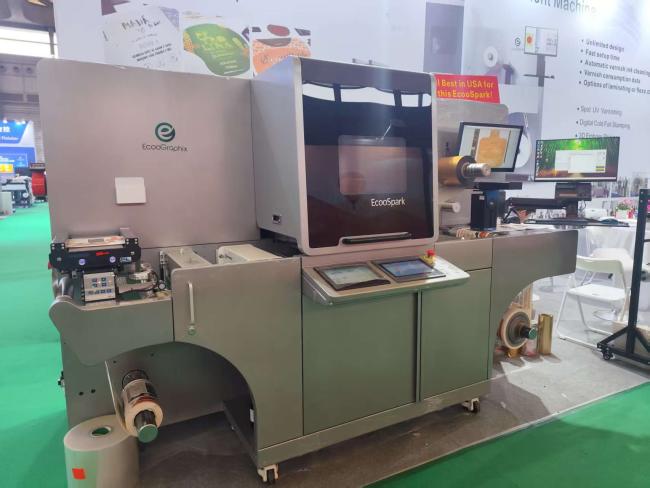

Started in 2018, EcooSpark is the pioneer as the first digital varnishing and foiling machine with over 45 units installations worldwide by now. It is now the 5th generation. Simple design, robustness, reliability and state of art quality are core strengths. This machine can do UV spot varnishing, cold foil stamping, braille printing ,3D embossing and etcs, by KM print head and digital LED UV Inkjet technology.
It's the ideal post press embellishment machine for HP Indigo 6000/6900, Screen,Xeikon,Durst or KM digital press.
EcooGraphix has newly updates for braille printing and wine label varnishing and cold foiling, it can reach 250u varnish thickness (braille dots)by one time print with the speed of 15m/min. And the laminating unit,flexo coating unit,laser die cutting unit, double varnishing units are optional.
The strength of our machine configurations are :
1)Full Sets of Mitsubishi servers;
2)HeFeng Corona Treatment;
3)Web guide and Monitoring System: E+L;
4) Full Led-UV curing system;
5) Printing Software: GIS UK;
6)Auto Cleaning System;
7) KM 1024i print head;
8) Multiple sensors for tention control.
There are288mm, 330 mm and 430 mm model optional (printing width). Most of our machines are used for about 5years now with no trouble,customers are very pleased with the machine stable and perfect performance.
Specification
| Model EcooSpark DS288 | ||
| Printing Technology | UV Piezo DoD(drop on demand)-inkjet | |
| Resolution | up to 1440*360 dpi | |
| Printing speed | 10m/min - 60m/min(depend on polymer layer thickness) | |
| Variable Image system | PDF, optimized PDF, Optional barcode system | |
| Supported image standards | PDF,PDF/VT,TIFF, JPEG, BMP & other data base files | |
| Substrates | Offset, Digital, Plastics, Laminated and coated substrates | |
| Printing image width | 288mm (extendable to 450 mm) * 10 m (Length) | |
| Polymer | WB-DS-Clear Polymer | |
| Polymer layer thickness | From 10 up to 180 microns | |
| Ink curing | Inter UV-LED Pre-curing/Full curing by UV-LED | |
| Unwinder diameter | Max. 700mm, Core 76mm | |
| Rewinder diameter | Max. 700mm, Core 76mm | |
| Substrates thickness | 30-400 micro | |
| Substrates width | Max 330mm | |
| Press with Foil station | Machine dimensions (LxHxW) 3500mmx1900mmx1800mm | |
| Operating environment | Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity | |
|
Electrical requirements |
Voltage: 3x380, ±5% 3 phases +G+N ; Frequency: 50/60 Hz Current: Avg. 25 Amps |
|
| Weight | 2800kg | |

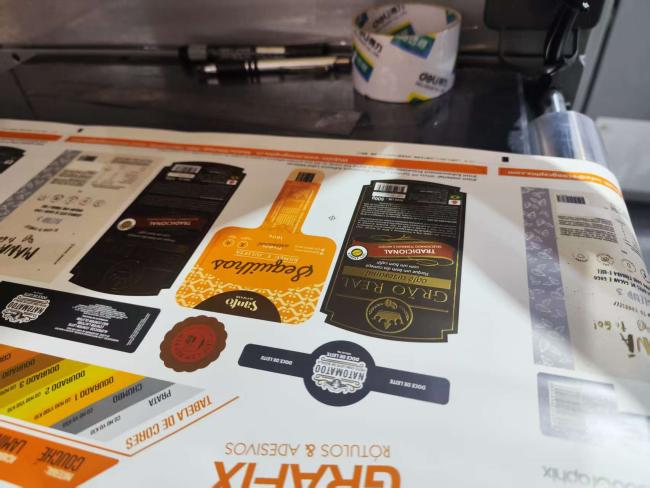

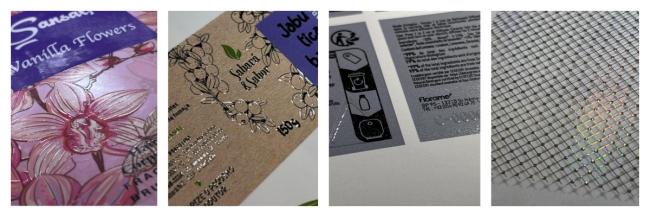

Application and Samples:
4.About our factory
EcooGraphix is the leading OEM factory of digital label post press embellishment machine , with about 50sets of installations worldwide within 2years.
Quality Control
Professional control department which is responsible for all the machines.
Full checking list including mechanical and electrical detection on the machine.
Strict standard for registration and over 24 hours non-stop running on each machine.
Follow the policy of ‘One person responsible for one machine’,‘Claim responsibility if machine has assemble problem.
Service
All technicians have over 10-20 years experience.
Rich experience in installation, repairing and maintenance overseas.
After-sales staff Whatsapp/Wechat on line 24/7.
Guarantee to provide after-sales service for any machine for whole using life.
