100mm Length 900N.M Sprag Clutch Bearing , Backstop Clutch Bearing
Price:
USD 40.00 - 95.00 / pc
MOQ:
1 pc
Delivery Time:
1 - 3 weeks
Brand:
CHAOYUE
Product Description
CK-L One Way Overrunning Clutch bearing Coupling For Printing Machinery
Type CK-L is a sprag type freewheels, bearing supported. It mainly used in occasion of lower speed and insufficient space. It needs seal and grease when used.
This series can connect with gears, sprocket. But can not bear flash and use as coupling. Please specify inner race direction of rotation seen from the A side.
This series extensive used in mechanism of packing, printing, weaving and so on, to realise overrunning, indexing and backstop.

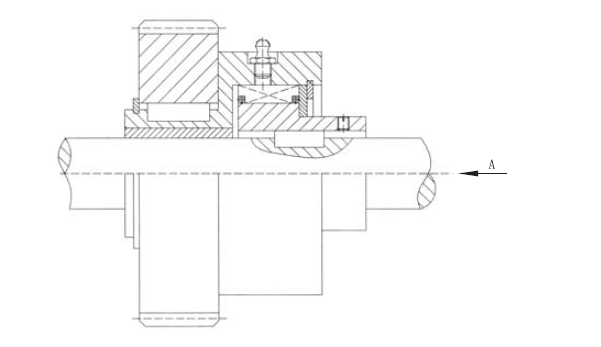

Mounting Example
| Type | Nominal Torque [N.m] |
Overrunning Limiting Speed [r / min] |

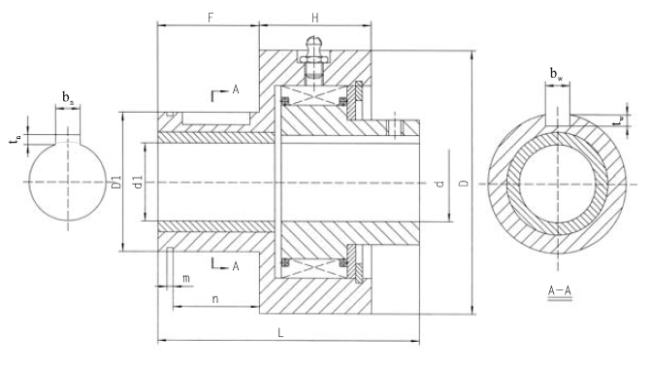

Dimension in Coutour [mm] | Weight | |||||||||||
| Inner Race | Outer Race | d [H7] |
d1 [F8] |
D | D1 [H7] |
F | H | L | m | n | bw x tw | bn x tn | |||
| CK-L1560 | 86 | 1260 | 765 | 15 | 15 | 60 | 32 | 25 | 32 | 70 | 1.3 | 21 | 6 x 3.5 | 4 x 1.5 | 0.58 |
| CK-L2072 | 225 | 1050 | 680 | 20 | 20 | 72 | 38 | 33 | 38 | 82 | 1.7 | 29 | 6 x 3.5 | 6 x 2.8 | 1.17 |
| CK-L2585 | 330 | 840 | 552 | 25 | 25 | 85 | 45 | 33 | 40 | 85 | 1.7 | 28 | 14 x 4.5 | 8 x 3.3 | 1.67 |
| CK-L3085 | 330 | 840 | 550 | 30 | 30 | 85 | 48 | 35 | 35 | 85 | 1.7 | 31 | 8 x 4 | 8 x 3.3 | 1.78 |
| CK-L3095 | 490 | 700 | 340 | 30 | 30 | 95 | 60 | 37 | 41 | 92 | 2.2 | 30 | 8 x 4 | 8 x 3.3 | 2.50 |
| CK-L40115 | 900 | 560 | 255 | 40 | 40 | 115 | 65 | 37 | 50 | 100 | 2.7 | 30 | 12 x 5 | 12 x 3.3 | 3.60 |
| CK-L45135 | 1240 | 490 | 255 | 45 | 45 | 135 | 75 | 41 | 54 | 112 | 2.7 | 35 | 14 x 5.5 | 14 x 3.8 | 6.00 |
