160kg/H Paper Egg Tray Moulding Machine 2000p/H
Paper Egg Tray Machine Egg Tray Molding Machine Pulp Tray Machine
Production Description
Pulp tray molding machine now is widely used in pulp molding products manufacturing, the raw material is waste paper like Newspaper, Carton, Paper box, Books, Corrugated paper etc.
The raw material goes into the pulping system, mixing with water, become the paper pulp.

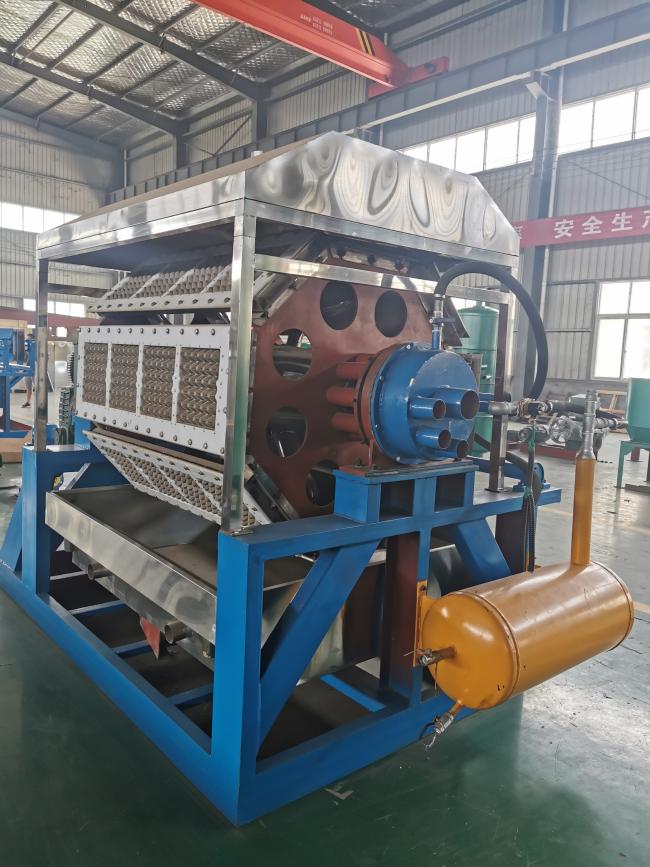

And then the paper pulp will be sent into the egg tray forming machine by a pump, the Pulp tray forming machine will produce the trays using vacuum forming principle.
Product Paramenters
| Machine Model | 4*1 | 3*4 | 3*4 | 4*4 | 4*8 | 5*8 | 5*12 | 6*12 |
| Yield(p/h) | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | 8000 |
| Waste Paper(kg/h) | 120 | 160 | 200 | 280 | 320 | 400 | 480 | 640 |
| Water(kg/h) | 300 | 380 | 450 | 560 | 650 | 750 | 900 | 1040 |
| Electricity(kw/h) | 32 | 45 | 58 | 78 | 80 | 85 | 90 | 100 |
| Workshop Area | 45 | 80 | 80 | 100 | 100 | 140 | 180 | 250 |
| Drying Area | No need | 216 | 216 | 216 | 216 | 238 | 260 | 300 |
Advantage of egg tray machine:
1. Raw material: Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get
2. Automation: Fully-automatic control
3. Quality standard: CE
4. 100% environmentally production process.
5. Engineers available to service machinery overseas.
Main Features
High precision servo motor drive,high efficiency and energy-saving drying line.
1, Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2, Use absolute encoder to achieve accurate correction.
3, The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4, The use of mechanical structure to ensure that the mold close on both sides evenly.
5, Large capacity; Water content is low;Save the cost of drying.
PRE-SALE SERVICE
1. 24 hours phone call, E-mail, trade manager online services;
2. According to customs requirements, we supply the details of project offer, general drawing, flow process design, layout of factory drawing;
3. We are very pleasure you come to our factory to visit;
4. Giving you all the production cost for setting up paper mill;
5. Answering you the questions with 24 hours;
6. Supplying turn key-project service.
ON-PURCHASE SERVICE
1. Inviting you to factory to check all the equipments and parts before shipment.
2. Supplying assembly drawing of paper machine, diagram of foundation and transmission, formal installation drawing and full set of technical data after signing the contract.
FAQ
Q:How to choose a suitable egg tray making machine and production lines?
A:Just need tell us your requirement.We will make a good production plan according to your requirements.
Q:Do you provide sample service?
A:We can send you paper samples, which is produced by our machine.
You also can send us the paper sample that you want to produce by DHL, etc.We will design according to your paper samples.
Q:What is the raw material of egg tray making machine?
A:Waste paper,Cardboard,Magazine,Newspaper,ect.
Q:Can you offer technician aboard for training workers?
A:Yes, we have team for installation guidance aboard, technicians will be sent for installation guidance and training workers .
Q: What's the guarantee for the egg tray machine and equipment?
A: Usually the forming machine guarantee is one year, and motors guarantee is half of an year.
Q:Where is your company located?
A: it is located in Zhengzhou city, Henan, china.
