3600mm Fluting Kraft Paper Manufacturing Machine 500m/Min High Strength 350g/㎡
3600mm 500m/min Fluting Kraft Paper Manufacturing Machine High Strength 350g/㎡
Products Description:

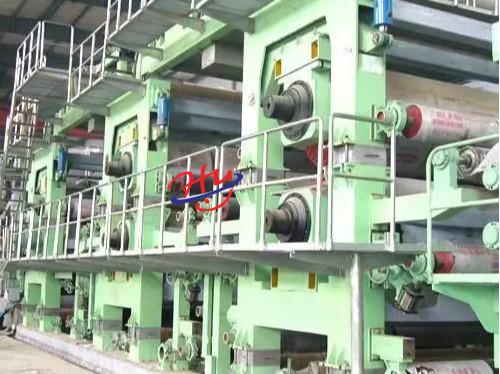

The paper machine includes flow box, net section, press section, drying section, calender, winder and transmission section, as well as auxiliary systems such as steam, water, vacuum, lubrication and heat recovery.
This machine is a multi-purpose type with easy operation, low noise, high performance and continuous work. We have various models of kraft paper making machines. We accept customization. It is related to the capacity, paper width, paper weight.
Technical Specifications:
|
1. Raw material: |
Waste paper,wood pulp,carton paper |
| 2.Product Variety: | Kraft paper |
| 3.Paper width: | 1092-5200mm |
| 4.Quantitative: | 80-300g/㎡ |
| 5.Design speed | 80-600m/min |
| 6.Working speed | 60-600m/min |
| 7.Rail gauge: | 2100-6200mm |
| 8.Transmission way: | AC variable frequency,section drive |
| 9.Arrangement | Single floor layout |
| 10.Capacity: | 10-500T/D(24hours) |
Raw Material:
Use Wheat Straw pulp, Rice Straw, Waste Books Paper, Wood Chips, Waste Paper, Bagasse, Wood pulp board, waste paper to produce Kraft paper, test liner paper, corrugated paper, fluting paper, cardboard paper.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tight plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
After-sales service:
1. Our company view adhering to the "excellent quality, customer satisfaction" service concept, to provide you with excellent products and perfect service.
2. Our company keep the contract and reputation. Quality first, products guarantee a year, as it is quality problem, free replacement.
3. For every purchase of our company's products, the company can send technicians to guide the installation and debugging, and can undertake the design of process and equipment installation.
4. Our company ensure that supply of parts discount all the year round;
