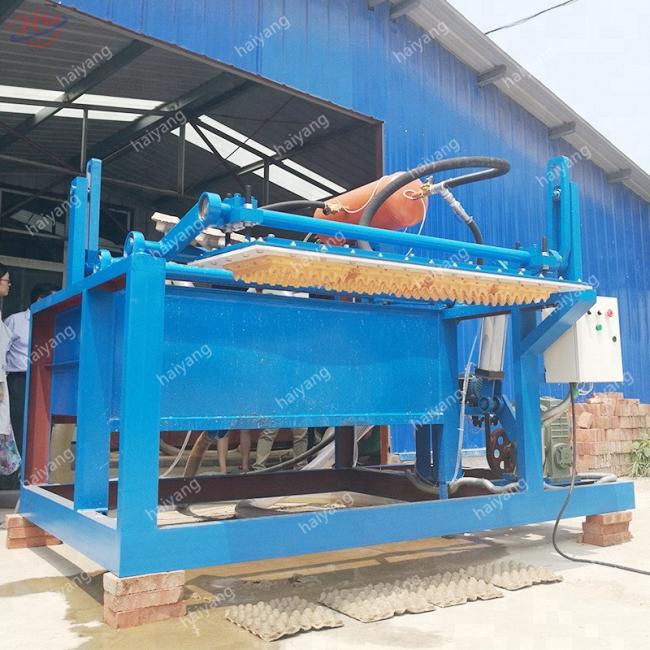

3000pcs/Time 6 Ton Paper Egg Tray Making Machine
Waste Paper Recycling Metal Drying Egg Carton Tray Forming Equipment Egg Tray Making Machine
Our molding machines and molding dies are fully designed by computer-assistant engineering and high technology. It has been proven high efficiency, low maintenance and energy saving during the ten year practice. The pulp molding system can use all kinds of waste paper to produce high quality molded fibre products. Such as, egg trays, egg boxes, apple trays, meat portion trays, vegetable portion trays, fruit portion trays, strawberry punnets, kidney trays, wine packs, can trays, seed pots, seed cubes, etc. it is a satisfyingly high return investment for the entrepreneurs or investors who wants a stable and consistent business.
A complete pulp molded production line consists of Stock Preparation System Section, Molding Machine Section, Continuous Drying Oven and Conveyor System, Process Instrumentation, Instrument and Control Panels, Jobsite Installation Materials, Auxiliary Equipment, etc.
| Machine Model | 3*1 | 3*1 | 3*4 | 4*4 | 4*8 | 5*8 | 5*12 | 6*12 |
| Yield(p/h) | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | 8000 |
| Waste Paper(kg/h) | 120 | 160 | 200 | 280 | 320 | 400 | 480 | 640 |
| Water(kg/h) | 300 | 380 | 450 | 560 | 650 | 750 | 900 | 1040 |
| Electricity(kw/h) | 32 | 45 | 58 | 78 | 80 | 85 | 90 | 100 |
| Workshop Area | 45 | 80 | 80 | 100 | 100 | 140 | 180 | 250 |
| Drying Area | No need | 216 | 216 | 216 | 216 | 238 | 260 | 300 |
Note:1. More plates ,more less water use
2. Power means the main parts,not include dryer line
3. All fuel use proportion are calculated by 60%
4. single dryer line length 42-45meter,double layer 22-25meter,multi layer can save worshop area
Main Features
High precision servo motor drive,high efficiency and energy-saving drying line.
1, Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2, Use absolute encoder to achieve accurate correction.
3, The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4, The use of mechanical structure to ensure that the mold close on both sides evenly.
5, Large capacity; Water content is low;Save the cost of drying.
The raw materials are mainly from various pulp boards such as reed pulp, straw pulp, slurry, bamboo pulp and wood pulp, and waste paperboard, waste paper box paper, waste white paper, paper mill tail pulp waste, etc. Waste paper, widely sourced and easy to collect. The required operator is 5 people/class: 1 person in the pulping area, 1 person in the molding area, 2 people in the cart, and 1 person in the package.
