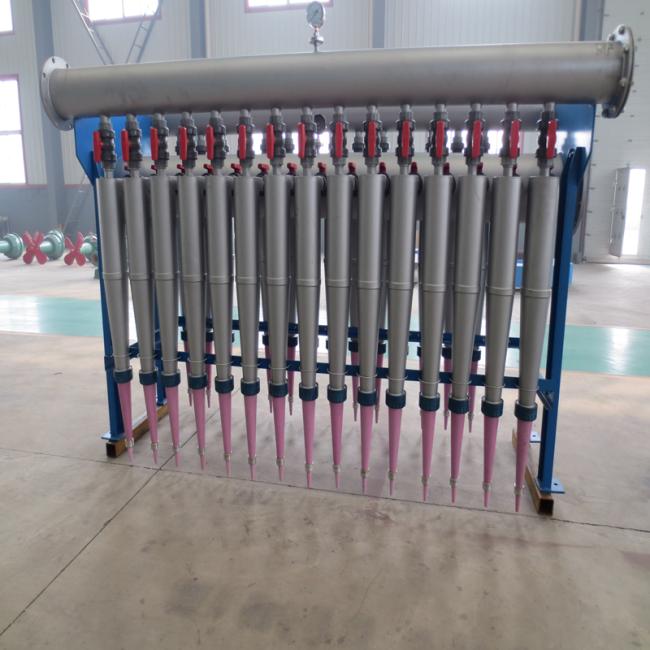

Low Density Cleaner 400l/Min 10mm Paper Pulp Making Machine
Low Denisity Cleaner Paper Pulp Making Machine Cardboard Pulp
Low density cleaner application
This Investors best choice cardboard pulp paper machine, cardboard pulp cleaner is a type of pulping equipment which is used to remove minute rough granules, foams, plastic and so on in the paper pulp manufacturing process. It is widely used for recycled pulp making and egg tray production line .
Low density cleaner main features
1. A stainless steel body,ceramic slag under the cone and mouth,long life.
2. Modular design,easy installation and maintenance.
3 .Cleaner efficiency.
Low density cleaner specification
| Type | HY-400 | HY-600 | HY-800 | HY-1000 | HY-1500 |
| Rate passing capacity of single equipment(l/min) | 400 | 600 | 800 | 1000 | 1500 |
| Inlet consistency(%) | 0.3-1 | 0.3-1.2 | 0.4-1.2 | 0.4-1.5 | 0.4-1.5 |
| Pressure of inflow pulp(mpa) | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Diameter of deslagging outlet(mm) | 4-10 | 6-12 | 6-14 | 6-18 | 6-18 |
New Type Low density cleaner
The Heavy Impurity Cleaner is mainly used for removing heavy impurities like gravel,scrap iron,dust and large ink particles from different kind of pulp.The highested running consistency can reach 2%,reduce fiber loss,improve production capacity,decrease the needed segments and numbers of cleaner.High cleaning efficiency,which avoid the accumulation of ash content in latter sections.High reliability of operation,would not be blocked.
| Type | LZ450 |
| Passing capacity of single equipment(l/min) | 450 |
| Max operating temperature(℃) | 70 |
| Max operating pressure(Mpa) | 0.4 |
| Inlet consistency(%) | ≤2% |
| Washing water flow | 20-60l/min |
FAQ
Q: What can I get suitable scheme basis on my requirement ?
A : Please tell me what raw material you want use and how many capacity you want produce per day when you sent email to me .We will be provide better offer for you .
Q:Will you send engineers to design our plant and install the equipment?
A: Yes, Our factory will arrange engineer to supply the professional drawing and install and train the workers about adjusting the equipemnt ,disposing of the trouble maybe happen and maintenance of the machine , after training ,the workers will get work license we distribute .
Q: How long is your guarantee?
A:One Year. After this period, we shall charge at low cost to keep after service You will be welcom to contact us with any problem might occurred .
Q:Payment erms
A: (1)30% T/T within 10days after sign contract
(2) 70% T/T before shipment
(3) 100% L/C is also acceptable
Q:How to operate and maintain the machine?
A: We will provide a professional and detailed USER GUIDE to you with the machine;
Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
