380V 30m*10m 1500pcs/Hour Egg Box Making Machine
Paper Pulp Making Machine Paper Pulp Moulding Machine Paper Trays
Production Description
Pulp tray molding machine now is widely used in pulp molding products manufacturing, the raw material is waste paper like Newspaper, Carton, Paper box, Books, Corrugated paper etc.
The raw material goes into the pulping system, mixing with water, become the paper pulp.
And then the paper pulp will be sent into the egg tray forming machine by a pump, the Pulp tray forming machine will produce the trays using vacuum forming principle.
The pulp tray that coming out from the forming machine is wet, so the forming system needs to be equipped with the drying system.
If the output of pulp tray is less than 1000 pieces per hour, and the weather is good enough, we recommend the manual operation type forming machine and sunshine drying mode, this can reduce the cost of equipment investment. If the weather is not enough to dry the paper trays easily, or the output of the machine is more than 1000 pcs/h, we recommend the automatic drying system,
This pulp tray drying system using different fuel to dry the egg trays automatically, as for the fuel choices, there is like Natural gas/LNG/LPG, diesel, heavy oil, wood, coal, electric.
After drying, the paper trays can be piled up by automatic stacker, and then the workers can package the trays by plastic bags.
Systems
1. Pulp Making System

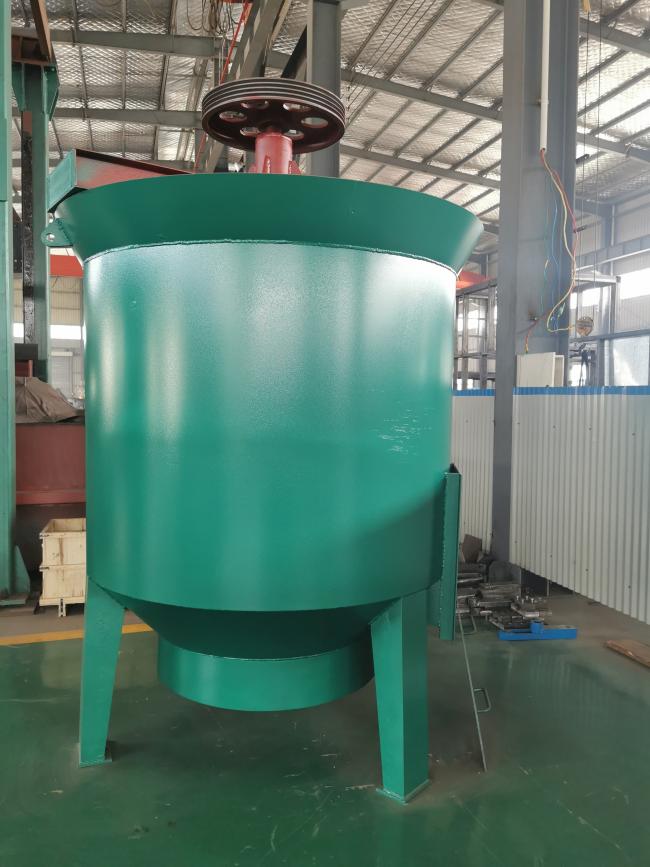

Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.
2. Moulding System

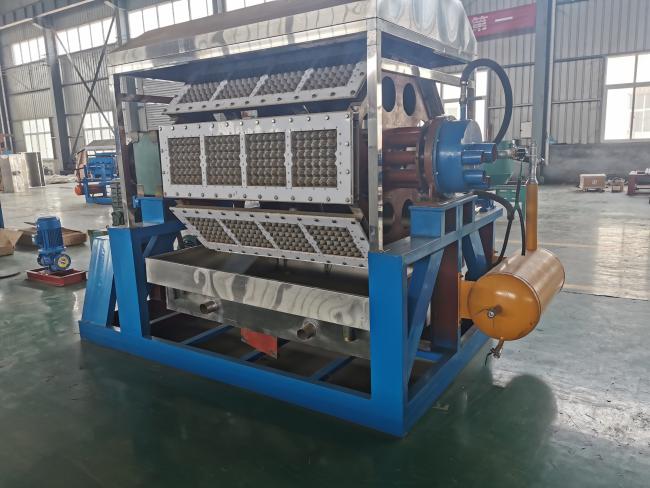

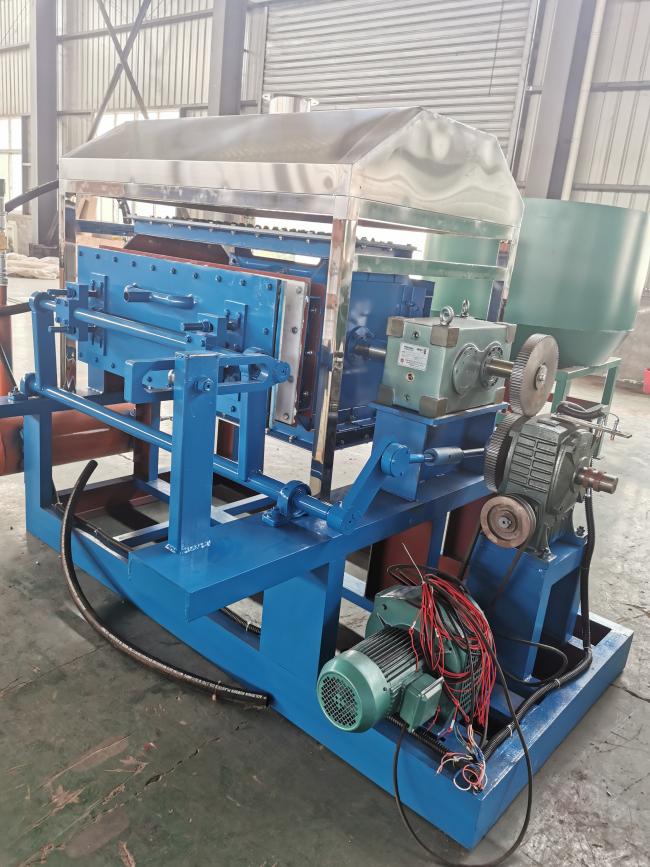

Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..
3. Drying System
Bellows, Air Blower, Mesh Belt Conveyor,Multi-layor Drying System
Parameter of Egg Tray Machine(2000 pcs/h)
| Pulping System |
Model:SLPT-2.0 Voltage:380v/50hz Power:7.5kw Volume:2 cbm Dimension:2000*1800*2000mm Capacity:400kg/h |
| Forming System |
Model:SLPT-2000 Voltage:220v/380v/50hz Power:3kw Capacity:2000pcs/h Template size:1230*400mm Operating speed:6 times/min Size:1900*1000*2500mm |
| Drying System |
Type:Multi-layer dryer Size:10000*1800*2200mm |
| Hot Press Shaping System |
Model:SL-8 Voltage:AC220V±10% Power:8kw Working pressure:8 T Hot pressing temperature:0-180℃(Adjust) Dimension:1000*800*2300mm Capacity:600 pcs/h |
Main Features
About 2000 Type Egg Tray Machine,offer detail tested results for your reference:
Workshop:Length(25-30m)*Width(8-10m).
Production capacity:1200-2000pcs/hour.(30-eggs tray, ~65g/pc).
Electricity consumption: ~45KW.
Water consumption:~450kgs/hour
Kind of Raw material: newspaper, carton paper
Raw material consumption: 105-135kgs/hour
Drying Consumption:130kg(Coal),80kg(Gas),Wood(200kg)
Delivery:1*40HQ and 1*20GP
Workers:4~6 person
FAQ
Q:How to choose a suitable egg tray making machine and production lines?
A:Just need tell us your requirement.We will make a good production plan according to your requirements.
Q:Do you provide sample service?
A:We can send you paper samples, which is produced by our machine.
You also can send us the paper sample that you want to produce by DHL, etc.We will design according to your paper samples.
Q:What is the raw material of egg tray making machine?
A:Waste paper,Cardboard,Magazine,Newspaper,ect.
Q:Can you offer technician aboard for training workers?
A:Yes, we have team for installation guidance aboard, technicians will be sent for installation guidance and training workers .
Q: What's the guarantee for the egg tray machine and equipment?
A: Usually the forming machine guarantee is one year, and motors guarantee is half of an year.
Q:Where is your company located?
A: it is located in Zhengzhou city, Henan, china.
