40m*15m*6m 800-1000pcs/H Paper Egg Tray Making Machine
Apple Tray Making Machine Eggs Tay Equipment Paper Pulp Moulding Machine Paper Trays
Production Description
Pulp tray molding machine now is widely used in pulp molding products manufacturing, the raw material is waste paper like Newspaper, Carton, Paper box, Books, Corrugated paper etc.
The raw material goes into the pulping system, mixing with water, become the paper pulp.

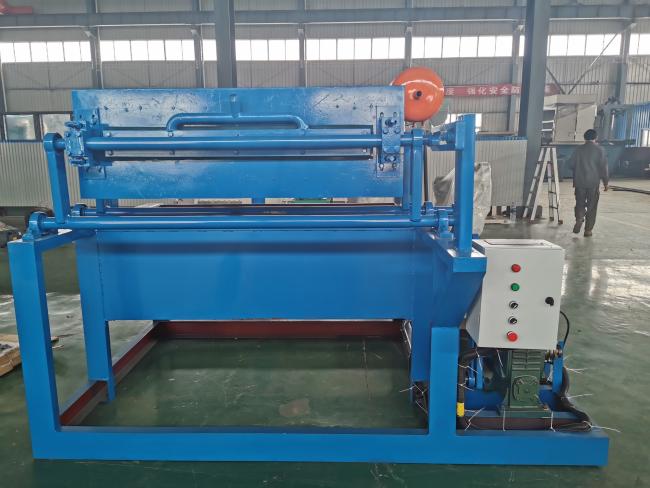

And then the paper pulp will be sent into the egg tray forming machine by a pump, the Pulp tray forming machine will produce the trays using vacuum forming principle.
The pulp tray that coming out from the forming machine is wet, so the forming system needs to be equipped with the drying system.
If the output of pulp tray is less than 1000 pieces per hour, and the weather is good enough, we recommend the manual operation type forming machine and sunshine drying mode, this can reduce the cost of equipment investment. If the weather is not enough to dry the paper trays easily, or the output of the machine is more than 1000 pcs/h, we recommend the automatic drying system,
This pulp tray drying system using different fuel to dry the egg trays automatically, as for the fuel choices, there is like Natural gas/LNG/LPG, diesel, heavy oil, wood, coal, electric.
After drying, the paper trays can be piled up by automatic stacker, and then the workers can package the trays by plastic bags.
Capacity:
| Model | Capacity(pcs/h) | Forming mould quantity | Total power(kw) | Materials consumption(kg/h) |
| HY-1*3 | 800-1000 | 3 | 34 | 23.8 |
| HY-1*4 | 1000-1500 | 4 | 41.2 | 28.4 |
| HY-3*4 | 2000 | 12 | 53.7 | 32.57 |
| HY-4*4 | 2000-2500 | 16 | 57 | 39.9 |
| HY-4*8 | 3000-4000 | 32 | 90 | 63 |
| HY-5*8 | 5000-6000 | 40 | 150 | 105 |
| HY-6*8 | 5500-6500 | 48 | 153 | 107.1 |
Advantage of egg tray machine:
1. Raw material: Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get
2. Automation: Fully-automatic control
3. Quality standard: CE
4. 100% environmentally production process.
5. Engineers available to service machinery overseas.
Pulp Making System:
Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.
Moulding System:
Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..
Drying System:
Bellows, Air Blower, Conveyer
Packaging Machine:
High quality of pulp molding machine for paper trays could design according to the customer’ requirement.
PRE-SALE SERVICE
1. 24 hours phone call, E-mail, trade manager online services;
2. According to customs requirements, we supply the details of project offer, general drawing, flow process design, layout of factory drawing;
3. We are very pleasure you come to our factory to visit;
4. Giving you all the production cost for setting up paper mill;
5. Answering you the questions with 24 hours;
6. Supplying turn key-project service.
ON-PURCHASE SERVICE
1. Inviting you to factory to check all the equipments and parts before shipment.
2. Supplying assembly drawing of paper machine, diagram of foundation and transmission, formal installation drawing and full set of technical data after signing the contract.
FAQ
Q:How to choose a suitable egg tray making machine and production lines?
A:Just need tell us your requirement.We will make a good production plan according to your requirements.
Q:Do you provide sample service?
A:We can send you paper samples, which is produced by our machine.
You also can send us the paper sample that you want to produce by DHL, etc.We will design according to your paper samples.
Q:What is the raw material of egg tray making machine?
A:Waste paper,Cardboard,Magazine,Newspaper,ect.
Q:Can you offer technician aboard for training workers?
A:Yes, we have team for installation guidance aboard, technicians will be sent for installation guidance and training workers .
Q: What's the guarantee for the egg tray machine and equipment?
A: Usually the forming machine guarantee is one year, and motors guarantee is half of an year.
Q:Where is your company located?
A: it is located in Zhengzhou city, Henan, china.
