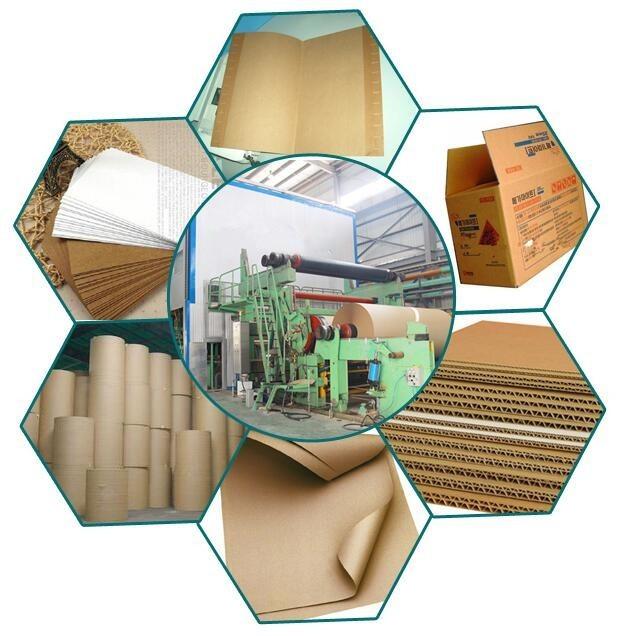

2400mm Waste Paper Recycled Kraft Testliner

Corrugated Paper Making Machine

Buying Guide
In order to recommend proper machine and make detailed technical proposal for

you as soon possible ,please tell us the following technical parameters:

(1) what kind of paper do you want to produce?

(2) what kind of raw material you will use?

(3) how many tons do you want to produce per day(24hours)?

(4) what is the output paper width of jumbo roll?--mm;

(5) What is the output paper weight(thickness)?--gsm.

Technical parameters:

Main frames of the production line:

1. Cylinder part: Φ 1500mm× 2850mm cylinder mould 3sets;
Φ 450mm× 2850mm couch roll 3sets; Reverse roll 1 set;
Rubber Share hardness is 38± 2, pneumatic pressure device.
2. Press part: Φ 600mm× 2850mm stone roll 1 set;
Φ 550mm× 2850mm rubber roll 1 set;
500 speed reducer of drive part 1 set; Scraper knife 1 group.
3. Dryer part: Φ 2500mm× 2850mm Dryer can 2 sets;
Φ 1500mm× 2850mm Dryer can 8 sets;
Φ 550mm× 2850mm touch roll 2 sets;
Rubber Share hardness is 95± 2, pneumatic pressure device
4. Winding part: Cylinder type winding machine 1 set, Rewinding machine 1 set.
5. Driving & control part: AC frequency conversion speed, section drive.
