China Factory Supply Full Automatic 1880mm A4 Paper Manufacturing Production Line For Paper Mill

Specifications of A4 Paper Making Machine

Part 1.Brief Introduction
This project mainly includes following sections:
1. Pulp Making Production Line
2. Paper Making Production Line
3. Boiler Section

Part 2.Technical Parameter
1. Raw Material: Waste Paper, Virgin Pulp, Bamboo Pulp, Sugarcane Bagasse Pulp etc.
2. Output Paper: High Quality A4 Office Copy Paper, Writing paper, Offset Paper etc.
3. Production Capacity: 20 tons/day
4. Paper Weight: 50-80g/m²
5. Net Paper Width: 1880mm
6. Width of Cylinder Mould: 2300mm
7. Rail Gauge: 2800mm
8. Design Speed: 190m/min
9. Working Speed: 80-160m/min
10. Drive way: AC Frequency Converter, Speed Regulation, Section Drive.

Benefit of A4 Paper Machine

1. Cost performance
The same performance model, the price is imported machine 1/2, can completely replace imported products.

2. Low Operating Costs
A4 Paper Making machine can greatly save costs for a4 paper make manufacturers in power, steam, water, additives, human resources and other aspects, so that the energy consumption per ton of paper can be reduced to a new level.

3. Easy to operate
Computer control, simple operation and convenient maintenance.

4. Small footprint
Cultural Paper machine is compact and practical, with an area of about 350 square meters.

5. High Quality, High Speed Copying.
Vacuum circular mesh molding greatly optimizes the ratio of vertical and horizontal tension of paper and further improves the quality of paper.
The daily production capacity of about 30 tons can greatly create economic benefits for enterprises.

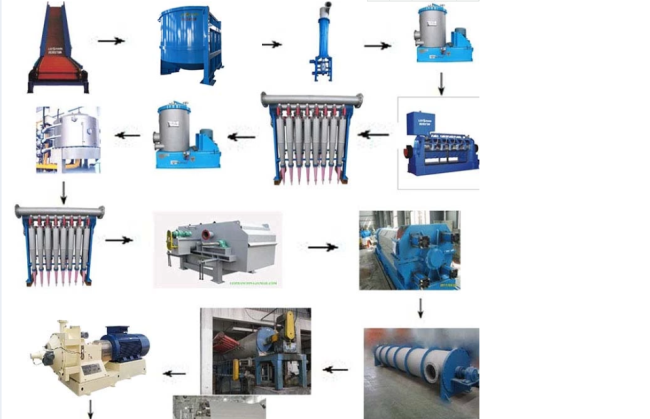

Paper Pulp Making Flow

Waste paper → hydrapulper → high density cleaner → coarse pressure screen → flotation deinking cell → fine pressure screen→low density cleaner→ reject separator →low density cleaner→high speed stock washer→dispersion system→ double disc refienr→inflow pressure screen → a4 paper machine → jumbo roll a4 paper

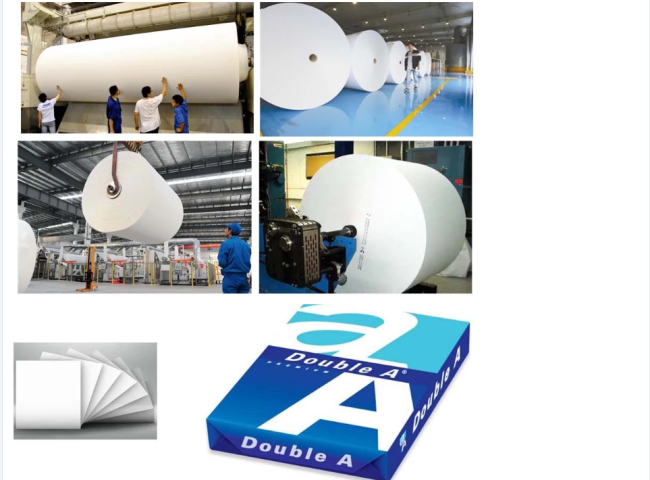

Final Product Display

Picture shows from Jumbo Roll Paper to End A4 Packet Paper

FAQ

1. How to install and maintain the machine?
Firstly, we will provide the installation guild with the machine for your reference.
Secondly, our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2. How can we get the matching accessories or wearing parts conveniently?
During the warranty, Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price. In fact, the wearing parts are standard parts that you could get it in your country at your convenience.
