Kraft Paper 3800mm 200 G/Sq.M Pulp Mill Equipment
Kraft Paper ProductMaking Machinery kraft paper mill machinery paper manufacturing machine
Product Description

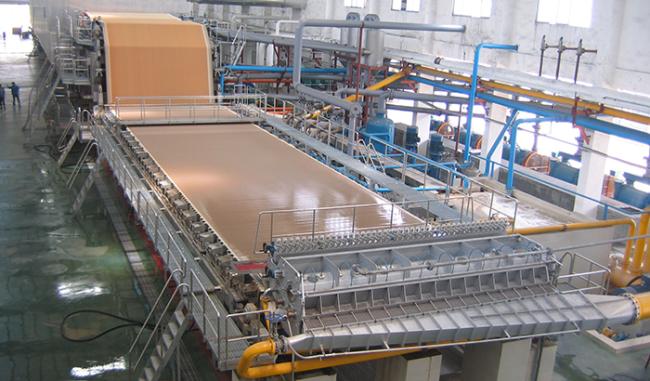

Kraft paper making machinery(paper production line)will use wood pulp board & old cartons
paper & recycling paper as material to make kraft paper, corrugated paper, craft paper and
packing paper. ln gereral, the whole PM includes following sections:
1. Pulping equipment
2. Paper machinery
3. Boiler( Provide steam )
Finished products
Raw material for making kraft paper / fluting paper/cardboard paper: waste paper, virgin pulp,
wood, cotton,
sugarcane bagasse, hemp, wheat straw, bamboo, reed, rice straw.
| Paper grade | kraft paper cardboard paper |
| Basis weight | 110-200 g/sq.m |
| Trimmed width | 3800 mm |
| Working speed | 100-180 m/min |
| Drive speed | 200 m/min |
| Rail gauge | 4800 mm |
Regarding paper machinery's structure
Our engineers will design it depend on your ideas, there are two structures for you choose:
fourdrinier machine and cylinder machine.If you want get high quality paper, please choose
fourdrinier machine. also the budget of fourdrinier machine is higher than cylinder mould.
section + paper winding machine
| 1. Fourdrinier part: The length of fourdrinier part is 8260mm, vacuum couch roll Φ650mm×1950mm open style headbox, inner is bordered with stainless steel, drave by two homogenate roll, macromolecule water board, macromolecule anti-grinding faceplate, suction box 6 pieces. Roll: none slot roll with rubber covered. Frame: square frame is made of steel. | |||||
| 2. Compression part:Φ600mm x 3100mm natural marble stone roller (1pc),Φ550mm x 3100mm rubber roller (1pc),Φ450mm x 3100mm natural marble stone roller (3 pcs),Φ400mm x 3100mm rubber roller (3pcs), rubber hardness HSD 90±2. | |||||
| 3. Dryer part: 2500mm×2950mm alloy dryer can (1pc), 1500mm×2950mm alloy dryer 10 pieces, arrangement: 1+10, Φ450mm x 3100mm secondary cans Pressure roller 1 pc, Φ550mm x 3100m touch roll 1 pc, Pneumatic pressurizing device. Rubber hardness HSD 90°±2. Multi cylinder part equipped with upper and bottom dry mesh device. | |||||
| 4. Calender and Reeling part: Three rolls calender and cylinder type winding machine. | |||||
|
5. Driving & control part: Equipped with 500 reducer, Motors with AC frequency convertor & adjustable speed,processing transmission. |
