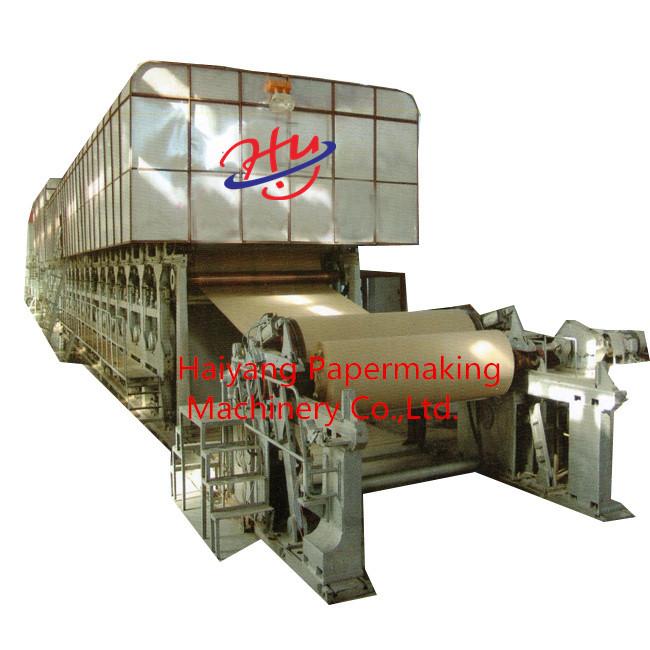

600m / Min Kraft Papermaking Machine Plant From Waste Paper 500T/D
Production Profile
The paper machine includes flow box, net section, press section, drying section, calender,
winder and transmission section, as well as auxiliary systems such as steam, water, vacuum,
lubrication and heat recovery.
This machine is a multi-purpose type with easy operation, low noise, high performance and
continuous work.
Our various production lines including duplex paper production line, corrugated paper production
line, toilet paper production line, etc. can be designed by our engineers, and we will also provide
after-sales service for installation and commissioning.
Technical Specifications
|
1. Raw material: |
Waste paper,wood pulp,carton paper |
| 2.Product Variety: | Kraft paper |
| 3.Paper width: | 1092-5200mm |
| 4.Quantitative: | 80-300g/㎡ |
| 5.Design speed | 80-600m/min |
| 6.Working speed | 60-600m/min |
| 7.Rail gauge: | 2100-6200mm |
| 8.Transmission way: | AC variable frequency,section drive |
| 9.Arrangement | Single floor layout |
| 10.Capacity: | 10-500T/D(24hours) |
Our Services
1. We can supply technical consulting and feasibility report according to client's current condition;
2. We can make detail design of workshop and whole factory;
3. We supply complete installation and test machine;
4. We train client's engineer and worker for free;
5. We supply spare part with best price. You are welcome to visit our factory!
