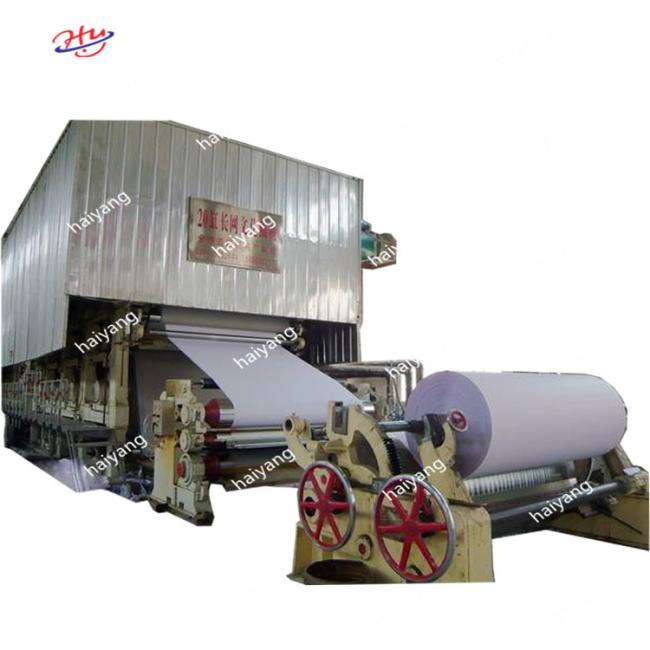

China 100T/D Notebook Paper Making Machine 3600mm Width for sale

100T/D Notebook Paper Making Machine 3600mm Width

Price Negotiable

MOQ: 1set

Delivery Time: 3-6months

Brand: HAIYANG

Product Description

Waste Paper Recycling Machine A4 Paper Making Machine Paper Product Making Machinery Production Line Description:

Cultural paper machine includes the model 1092mm,1575mm,1880mm,2400mm,3200mm, etc. It can make cultural paper,newspaper,writing paper, printing paper((A3,A4paper)), transfer printing paper (A3,A4paper) , flat paper and so on.The capacity is from 10 tons to 100tons per day.
The fourdrinier paper making machine is mainly used for making top grade corrugated base paper, medium paper, high quality light-weight paper (culture paper, newsprint, light weight specialty paper). This kind of paper machine needs to choose papermaking type, dewatering structure of press section, arrangement of dryer cylinder group, sizing and finishing equipment according to different paper grades and operating speed requirements.

Technical Specifications

1.Raw material:	Waste paper,wood pulp,Carton paper ,etc.
2.Product Variety:	Culture paper
3.Papae width	1092/1575/1760/1800/2100/2400/2800/3200/3600mm
4.Quantitative:	60-120g/㎡
5.Capacity:	10T/D-100T/D
6.Design speed:	80-700m/min
7.working speed:	60-680m/min
8.Rail gauge:	2100/2500/2800/3000/3400/3800/4200/4600mm
9.Transmission way:	AC variable frequency,section drive
10.Arrangement:	Single/Multialayer floor layout

Raw Material

Use Wheat Straw pulp, Rice Straw, Waste Books Paper, Wood Chips, Waste Paper, Bagasse, Wood pulp board, waste paper to produce culture paper jumbo roll .

This machine produces cultural paper such as a4 paper ,newsprint paper, shool use paper.... our fourdrinier a4 paper machine has international CE,ISO,BV certifications.

Main Equipments

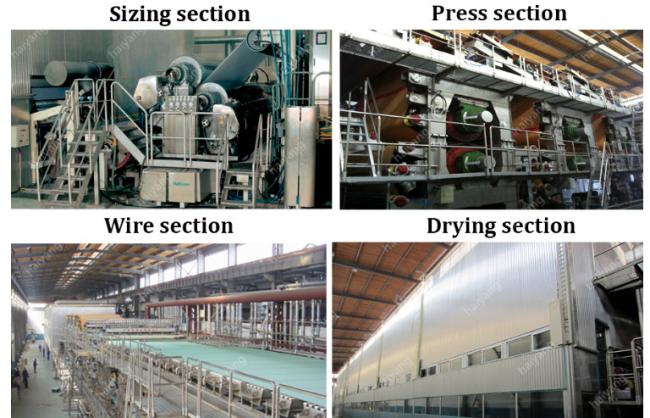

1.Brief introduction: This machine is mainly used for making high strength corrugated paper. The paper machine is mainly divided into the following parts: Headbox, Fourdrinier Wire Section, Press Section, Front Dryer Section, Beveled Surface Sizing Machine, Back Dryer Section, Reeling Section.

2.Headbox: Air-cushion headbox, by controlling the gas pressure inside the headbox to control and stabilize the pulping pressure head.

3. Wire Section: Single fourdrinier wire, the main components: breast roll, forming plate, dehydration board, vacuum box, vacuum couch roll,wire-driving rollers, wire-guiding roll and rack, etc, and equipped with a piece of forming wire.

4. Press Section: It is divided into 1st press, 2nd press. 1st press is the press with large diameter roll with a vacuum suction roller,equipped with two coating metal rollers, and with upper felt and lower felt; 2nd press is large diameter roll, equipped with two coating metal rollers, and with upper felt and lower felt. 1st press, 2nd press are equipped with leading felt roller and felt suction box. 1st press, 2nd press pressurized way is oil hydraulic cylinder pressure.

5. Front Dryer Section: 1800 dryer cylinder, group drive, each group with dryer wire, wire-guiding roll. Equipped with semi-enclosed gas hood.

6. Beveled Surface Sizing Machine: Equipped with a surface chrome-plated metal roller, a coating metal roller. The surface sizing press machine pressurized way is corrugated tire pressure.

7. Back Dryer Section: 1800 dryer cylinder, group drive, each group with dryer wire, carrier roll. Equipped with semi-enclosed hood.

8. Reeling Section: Pneumatic horizontal reeling machine.

After-sale Service:

Installation & Commissioning:
Buyers can send staff to our factory to install, modulate machines and to be trained in operating for free.
Supplier can also dispatch engineers to buyers' company to install, modulate machines and train buyers' technicians.
Warranty Clauses:
Within the warranty period, supplier provides free parts replacement and repair services to buyers.
Technical assistance:
Supplier provides free lifelong remote technical support. We assist buyers with the first technical guidance in our normal working hours.
