2 Years Warranty High Brightness Wall Mounted P8 Outdoor LED Display
2 Years Warranty High Brightness Wall Mounted P8 Outdoor LED Display
Key features of P8 outdoor led display
- Have P3, P4, P5, P6, P10 available if you need
- Suitable for all fixed installation and wall mount installation
- High resolution with vivid video and image under directly sunlight
- IP65 waterproof rate, fixed outdoor iron cabinet
Parameter of P8 outdoor led display
You can refer to below specification for more details:
| Outdoor led display---Iron cabinet | |||
| Pixel pitch | 6mm | 8mm | 10mm |
| Led lamp | SMD 3535 | SMD 3535 | SMD 3535 |
| Module size | 192*192mm | 256*128mm | 320*160mm |
| 320*160mm | |||
| Scan method | 1/8 S | 1/4 S | 1/2 S |
| 1/5 S | |||
| Brightness | >=6500cd/sqm | >=6500cd/sqm | >=6500cd/sqm |
| Pixel density | 27777dots/sqm | 15625dots/sqm | 10000dots/sqm |
| Panel material | Iron cabinet | Iron cabinet | Iron cabinet |
| Panel size | 960*960mm | 960*960mm | 960*960mm |
| Average power consumption | 380w/sqm | 400w/sqm | 400w/sqm |
| Max power consumption | 900w/sqm | 1000w/sqm | 1000w/sqm |
| Best view distance | 6-68m | 8-88m | 10-120m |
| Gray level | 12-14bit | ||
| View angle | H≧140° V≧140° | ||
| Refresh rate | ≧1920 Hz ≧3840 Hz | ||
| Protection level | IP65 | ||
| Control system | Linsn/Colorlight/Novastar | ||
| Frame frequency | ≧50/60 Hz | ||
| Input voltage | 100-120V 200-240V | ||
| Screen life | 100000h | ||

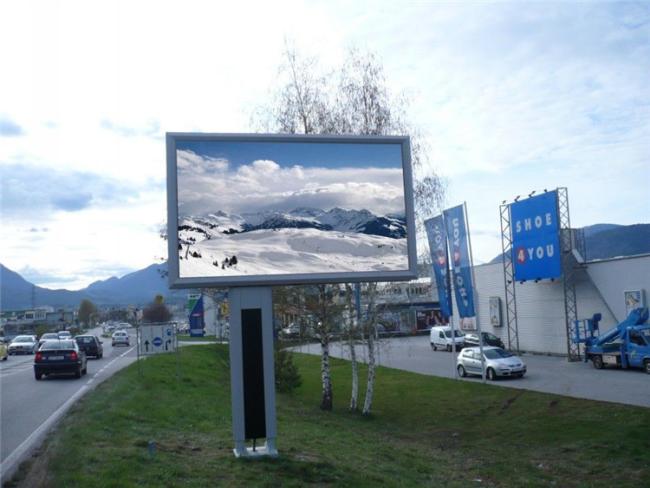

Application of P8 outdoor led display
P8 outdoor led display is suitable for big size and long view distance, like commercial center, road side, shopping center, community square, sports stadium, bus station and so on;
Why choose our P8 outdoor led display
We will do 48-72 hours aging test for all the led panel displays in our factory to ensure the good quality, we need keep all are the working normal before shipment.
So we have advantages:
Our P8 outdoor led screen has high brightness, can get to 6500cd/sqm;
Our P8 outdoor led screen has high definition, so the videos and iamages are more clear.

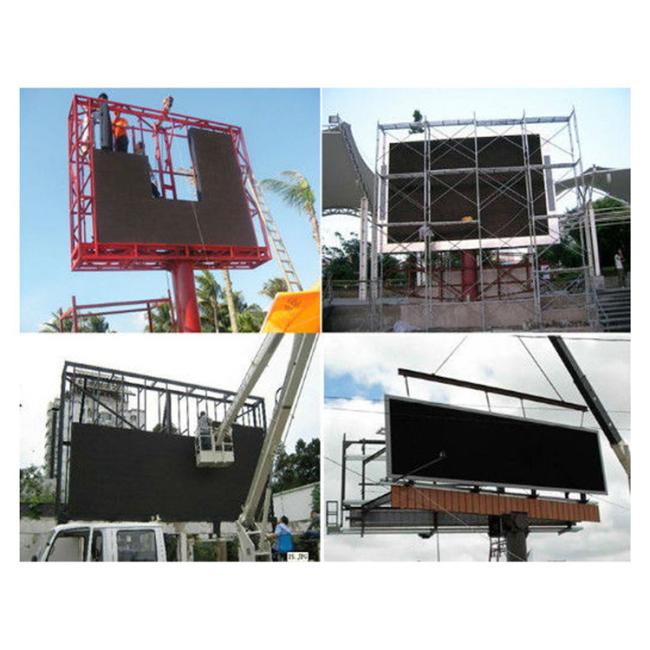

Installation of P8 outdoor led display
Below are the different installation solutions for you, we can talk more if you need the special installation, do not hesitate to click right and then we can talk easily!
Control method of P8 outdoor led display
We will give you our professional suggestion for the controller, we can suggest you use video processor if you want do live show; you can use 4G function if you want do remote control;
We can help to choose the suitable and easy to use controller for you, if you can share more details of the project you want to build.
