Stage Backdrop 3 In 1 P3.91 Aluminum Indoor Meeting LED Video Wall

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: 10-15 working days
Brand: Hongwei
Product Description

Stage Backdrop 3 In 1 P3.91 Aluminum Indoor Meeting LED Video Wall



High intensity and can be adjusted of P3.91 indoor led video wall can meet the request of the customers according the application environment.Good quanltiy commendably solve the problem of the mosaic, have the excellent consistency of light.We offer the best competitive price at the market, also have the same even better quality.



Features:

  • Optional of Convex Shaped, Concave Shaped and Wave Shaped screens

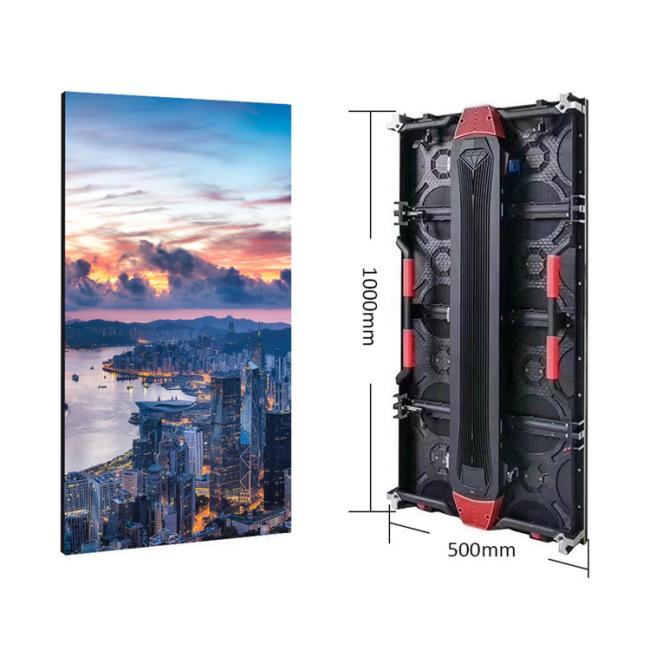

  • Ultra slim and lightweight : 6.7kgs per Cabinet Weight(500x500mm), 12.8kgs per Cabinet Weight(500x1000mm)greatly saves transportation costs and labor costs
  • Rental die-casting aluminum structure: rock solid, not easy to deform
  • Seamless splicing : give you a better visual experience
  • Quick lock system, easy installation : quick installation, complete the installation in a few seconds



Advantages

  • High Definition,wonderful visual performance.
  • High brightness ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.
  • High resolution could guarantee superior performance even with small screen size.
  • High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
  • Super wide viewing angle can be visible in most corners, give you visual enjoyment.
  • SMD technology could guarantee higher flatness and better performance.
  •  Aviation plug and quick lock is used, bringing easier cables connection and quicker assembly of cabinets to save time.
  • Low power consumption and fast heat dissipation with dual channel heat dissipation
  • Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans` speed monitoring, three-way voltage monitoring and temperature monitoring etc.



Parameter



Products’ parameters can help you to select which one you need



Pixel 2.976mm 3.91mm 4.81mm
Led lamp SMD 2121 SMD 2121 SMD 2121
Module size 250*250mm 250*250mm 250*250mm
Scan method 1/16 S 1/16 S 1/13 S
Brightness >=1000cd/sqm >=1200cd/sqm >=1200cd/sqm
Pixel density 112896dots/sqm 65536dots/sqm 43264dots/sqm
Panel material Die casting aluminum Die casting aluminum Die casting aluminum
Panel size 500*500mm 500*500mm 500*500mm
500*1000mm 500*1000mm 500*1000mm
Average power consumption 400w/sqm 400w/sqm 400w/sqm
Max power consumption 800w/sqm 800w/sqm 800w/sqm
Best view distance 3-35m 3-45m 4-48m
Gray level 12-4bit
View angle H≧140° V≧140°
Refresh rate 1920hz/3840hz
Protection level IP33
Control system Linsn/Colorlight/Novastar
Frame frequency ≧50/60Hz
Input voltage 100-120V 200-240V
Screen life 100000h


Product details



Each P3.91 indoor led display is made of many modules.So it has advantages that other screens don't have,for example:light weight,easy mount,easy move,perfect resolution,low noise

Application

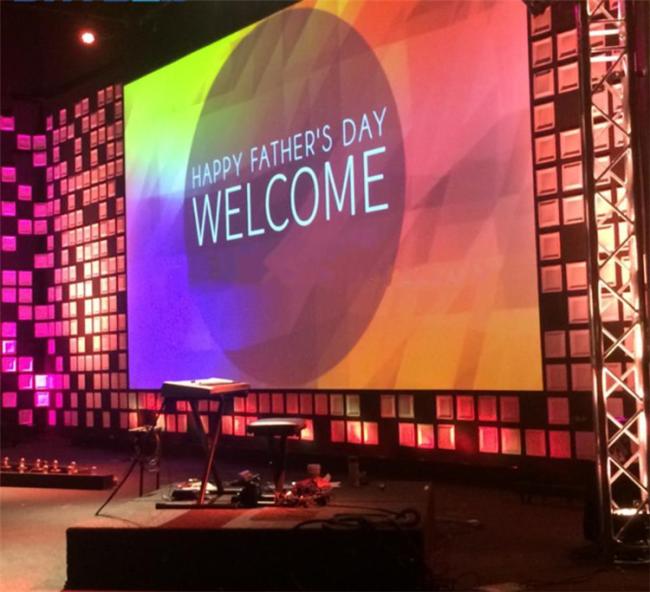

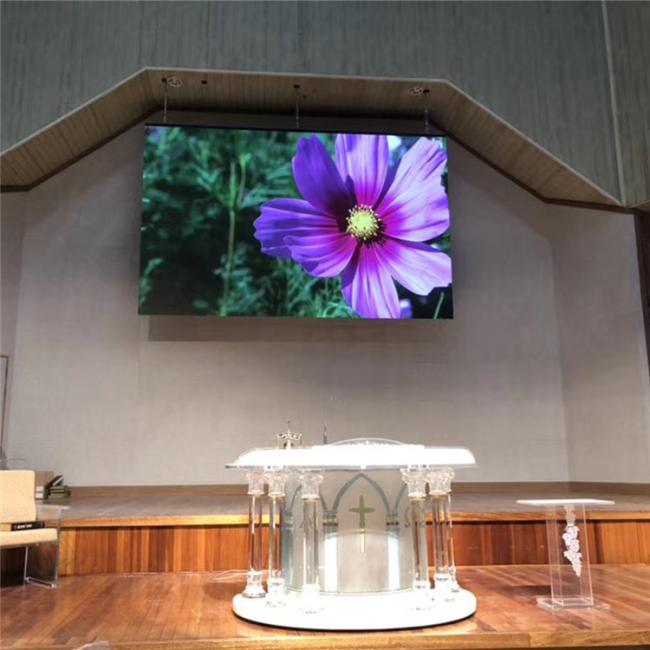

P3.91 Indoor led video wall can be widely used at waiting room of stations,stores,meeting rooms,church and school



 Aging test

Aging test of P3.91 indoor LED video wall is necessary steps before packing.It can test the quality of modules and other components,to make sure everything is ok before shipping.At the same time,other screens also have to be aging test
