4k Vivid Video 640*480mm Die Casting Aluminum P1.9 HD LED Display
4k Vivid Video 640*480mm Die Casting Aluminum P1.9 HD LED Display
Key Features
- Brand: Hongwei
- Small pitch with high definition, the videos and images are super clear

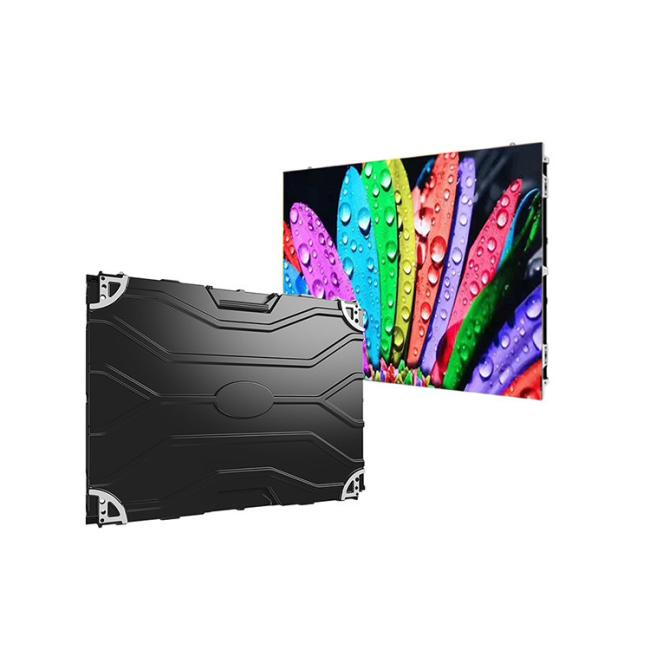

- Ultra-thin cabinet, the whole cabinet is made of aluminum alloy or magnesium alloy material, light and practical
- Easy installation and maintenance
- Have other pixel like P1.8, P1.9...
Parameter
Products’ parameters can help you to select which one you need.
| HD led display-Small pixel pitch | |||
| Piexl | 1.875mm | 1.904mm | 2mm |
| Led lamp | SMD 1515 | SMD 1515 | SMD 1515 |
| Module size | 240*120mm | 160*160mm | 256*128mm |
| Scan method | 1/32 S | 1/28 S | 1/32 S |
| Brightness | >=900cd/sqm | >=900cd/sqm | >=1000cd/sqm |
| Pixel density | 284444dots/sqm | 275625dots/sqm | 250000dots/sqm |
| Panel material | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Panel size | 480*480mm | 480*480mm | 512*512mm |
| Average power consumption | 400w/sqm | 400w/sqm | 450w/sqm |
| Max power consumption | 800w/sqm | 800w/sqm | 1000w/sqm |
| Best view distance | 1-28m | 2-28m | 2-30m |
| Gray level | 12-4bit | ||
| View angle | H≧140° V≧140° | ||
| Refresh rate | 1920hz/3840hz | ||
| Protection level | IP33 | ||
| Contro system | Linsn/Colorlight/Novastar | ||
| Frame frequency | ≧50/60 | ||
| Input voltage | 100-120V 200-240V | ||
| Screen life | 100000h | ||
What is P1.9 HD led display?
The LED modules, receiver card, power supply are all front maintenance, cabinet with front installation holes has fully described the strength of its light weight, meet the needs of small space or where the needs of the cabinet thickness, enhanced the vision of the space as well as its visionary effect.
It allows for easy maintenance, saving time and labor on site.
1. Ultra High Definition
It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.
2. Ultra Fast Response
The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
