DIP346 Outdoor P10 Highway Digital Billboard DIP LED Display
DIP346 Outdoor P10 Highway Digital Billboard DIP LED Display
Key Features
- Brand: Hongwei
- Pixel: 10mm
- Led: DIP346
- Excellent heat dissipation and noiselessness
- High brightness can get to 9000cd/sqm
Parameter
You can refer to below specification for more details:
| Led sign board-DIP | ||
| Pixel Pitch | 10mm | 16 mm |
| Module Size | 320x160mm / 160*160mm | 320*320*30(mm) |
| Module resolution | 32x16 pixel / 16*16 pixel | 20 x 20 pixel |
| Density dot | 10,000 pixel/sqm | 3906 pixel/sqm |
| Pixel configuration | 1R1G1B | 1R1G1B |
| The best view distance | ≥10m | ≥16m |
| Drive mode | 1/4 Scan | 1/1 Scan |
| Power Consumption | 300-750W/sqm | 300-750W/sqm |
| LED Type | DIP346 | DIP346 |
| Brightness | ≥7000cd/㎡ | ≥7500cd/㎡ |
| Refresh frequency | 1920-3840Hz | |
| Gray Grade | 14 bits | |
| Display Color | 4.4 trillion Colors | |
| Brightness Adjustment | 100 grades by software or automatically by sensor | |
| Working Environment | Temp:-20°C~60°C, Humidity:10%~90% | |
| Working Voltage | AC:100V~120V | |
| AC:220~240V | ||
| Lifetime | 100,000Hours | |
| IP | IP65 | |
| Warranty | 1 year | |
| Input signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |

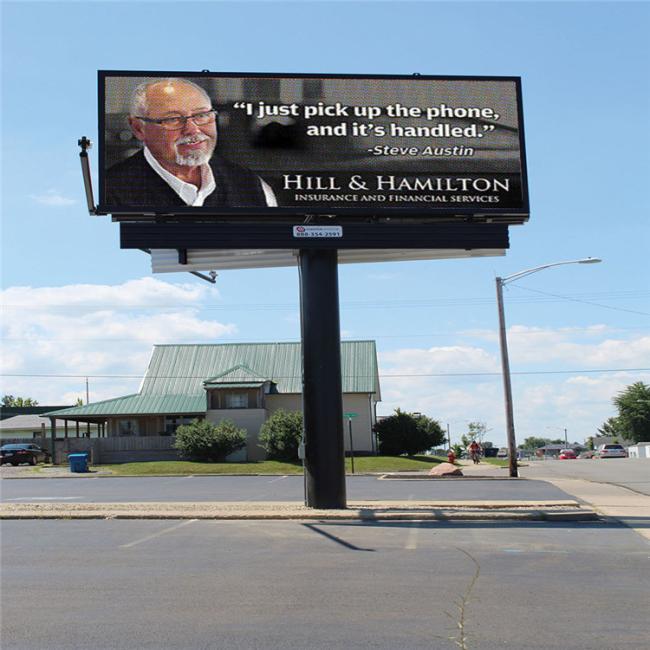

What 's DIP P10 outdoor billboard?



-
CE,RoHS ,FCC certificate
-
Adjustable brightness
-
24 hours on line service with professional sales
-
Installation CAD drawing structure can be provided as you project

We will give you our professional suggestion for the controller, we can suggest you use video processor if you want do live show; you can use 4G function if you want do remote control;
We can help to choose the suitable and easy to use controller for you, if you can share more details of the project you want to build.
