960x960mm SMD2727 6500nits Outdoor Curved Led Display P5
P5 Outdoor Curved LED Video Wall
Key Features
Hongwei led is mainly for outdoor advertising, information publishing, journalism and communication in some places, such as cultural square,traffic arteries, stations, terminals, information centers, entertainment venues, shopping, centers, commercial city and etc.
Feature:
- SMD led encapsulation technology confirm the wide view angle up to 140 degree for horizontal and vertical, and good uniformity,less than 0.1mm difference
-
High quality leds with black body with high contrast,high brightness up to 6500nits
-
Good Waterproof IP65, can be used under heavy rain weather and humid area
-
Stability Iron cabinets for fixed installation, with fast lock and aviation plugs, conveninet to install and dismantle
-
Long life span >100000hours, and 2 year warranty
Parameter
You can refer to below specification for more details:
| Type | SMD2727 |
| Composition | 1R1G1B |
| Scan method | 8S |
| Resolution | 64 x 32dots (W x H) |
| Pixel pitch | 5mm |
| Module size | 320*160 mm |
| Module quantity | 3 x 6 |
| Resolution | 192x 192(W x H) |

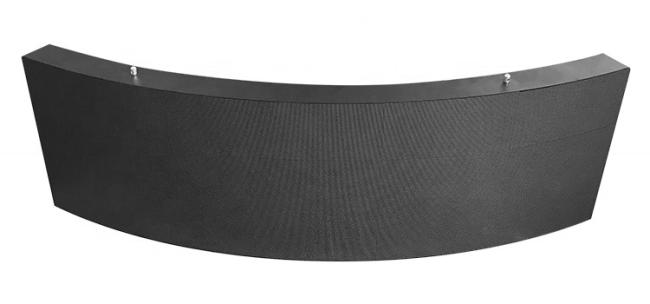

| Cabinet size | 960*960mm |
| Cabinet material | Iron box |
| Best viewing distance | 5-50m |
| Maximum power | <1000W /m2 |
| Viewing angle | 140°/140° |
| Brightness | 6500cd/m2 |
| Pixel density | 40000dot/m2 |
| Control system | Synchronous System |
| Lifespan | 100,000 hours |
| Frame frequency | 60Hz |
| Installation | Hanging/Fixed with support bracket |
| Certification | CE, ROSH,FCC |

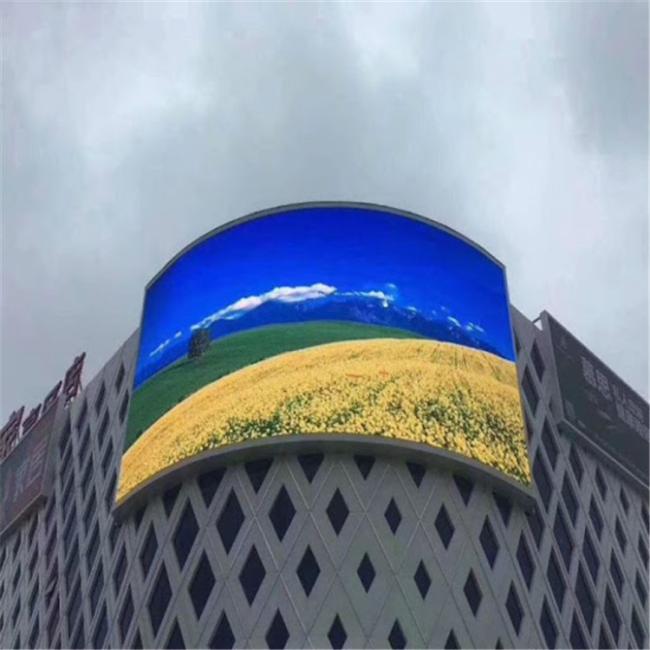

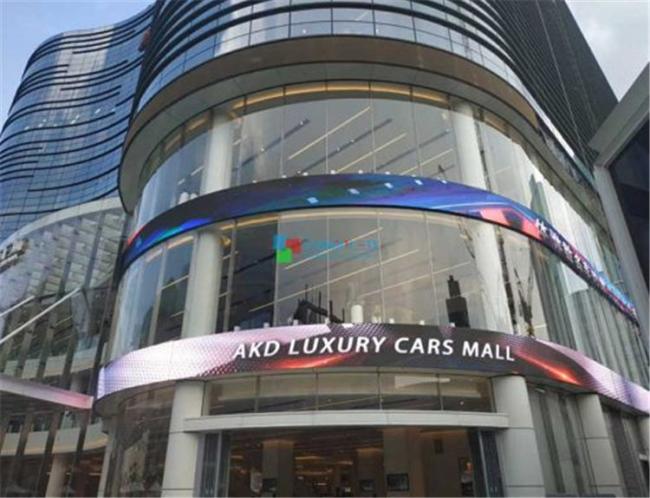

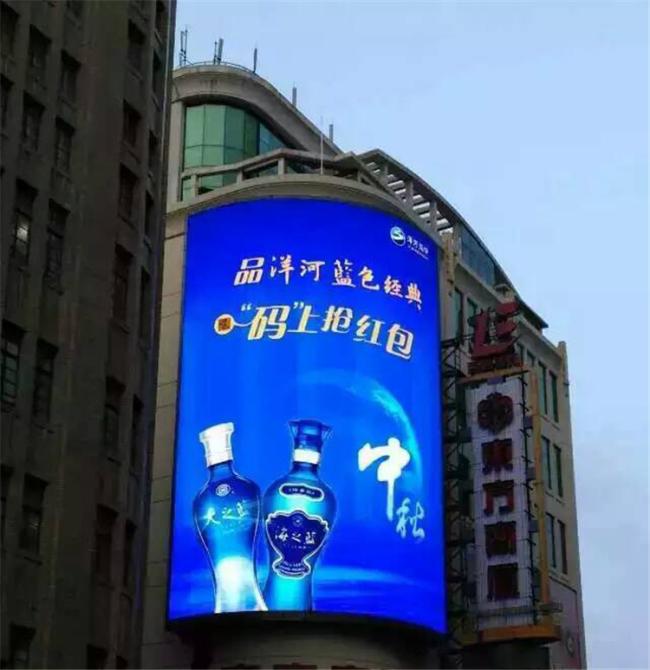

What is P5 Curved LED video wall?
High refresh rate,high gray level:it can reach 16bit by using PWM driving IC,refresh rate is more than 1920HZ,the gray level is still high even under the condition of low brightness.
High-quality LED Light help you use the screen for a long time
