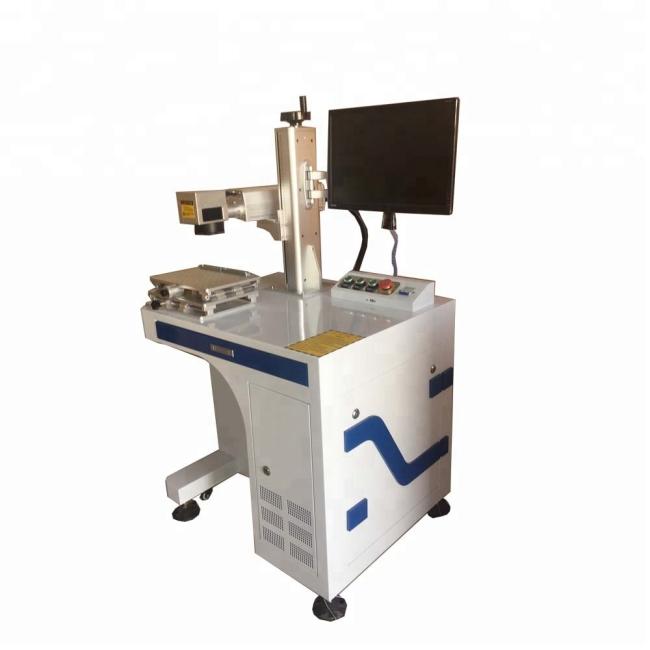

High Precision Stainless Steel Metal Laser Marking Machine
Price:
Negotiation
MOQ:
1 set
Delivery Time:
5-7 working days
Product Description
High Precision Stainless Steel Metal Laser Marking Machine
Features
1. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction.
2. High pulse repeating rate and stable power bring high speed laser marking.
3. High speed 2-3 times over than traditional diode pumped marking machine.
4. Air-cooling smart machine size!
5. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%
6.Suitable for various fiber laser generators.
Parameter
| Laser power | 10W 20W 30W 50W Option |
| Laser wave length | 1064nm |
| Sandard marking area | 110*110mm |
| Optional marking area | 200*200 300*300 customerized aviliable |
| Minimum character | 0.15mm |
| Marking speed | ≤7000mm/s |
| Marking depth | 0.01~1mm |
| Repeat frequency | 20KHZ~80KHZ |
| Output laser beam quality | M²≤2 |
| Focus spot diameter | < 0.01mm |
| Control interface | Standard USB port |
| Graphic format supported | BMP,JPG,AI,PLT,DST,DWG ETC. |
| Marking format | Text,symbols,graphics,images,barcodes,two-dimension bar. |
| date marking,batch number,serial number etc. | |
| Operating temperature | 0-45°C |
| Cooling way | Built-fan for air cooling |
| Working voltage | 220V-50Hz(single phase)or 110V-60Hx(single phase) |
| Computer | Including laptop cpmputer per set(software installed) |
| Laser marking oftware | Ezcad(English version)(the other optional software please contact us) |
| General power | <0.5KW |
| Working environment | Clean and dust-free or dust less |
| Working condition | 5%~75%,free of condensed water |
| Optional device | Rotary marking attachment ;X/Y adjustable table |
