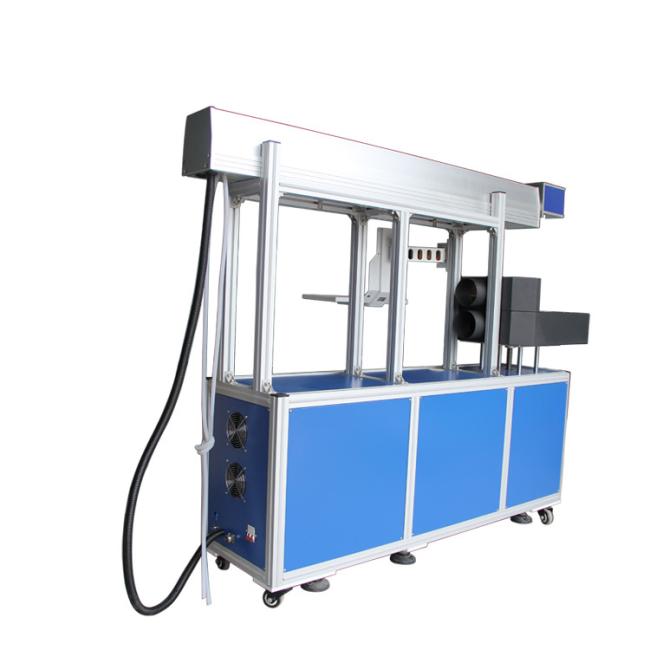

150w Glass Laser Tube Galvo CO2 Laser Marking Machine
150w Glass Laser Tube Galvo CO2 Laser Marking Machine
Application industry
1 Medicines, personal care products, tobacco, food and beverage packaging, alcohol, dairy products, clothing accessories, leather, electronic components, chemical building materials and other industries.
2 can engrave non-metal and part of the metal. Widely used in food packaging, beverage packaging, pharmaceutical packaging, architectural ceramics, clothing accessories, leather, fabric cutting, craft gifts, rubber products, electronic components packaging, shell nameplates, etc.
3 It is applied to the marking of various non-metallic materials and products, such as laser marking of medicine, cosmetics, plexiglass, ceramics, plastics, wood, rubber and leather, paper products, electronics industry, various instruments and control panels.
CO2 Laser marking machine detail
| Technical Parameters for Glass Laser Tube CO2 Laser Marking Machine | |
| Model | DK-C100W |
| Laser power | 100W glass laser tube |
| Working area | 300*300mm |
| Laser Wavelength | 10.64μm |
| Response time | 0.5ms |
| Frequency of pulse | ≤ 30KHZ |
| Max marking depth | ≤1mm (adjustable according to materials) |
| Marking speed | 0-7000mm/s |
| Marking lines | 1-10 lines(in the marking area) |
| Minimum line width | 0.1mm |
| Minimum character | 0.4mm |
| Repeatability accuracy | ±0.01mm |
| Resolution ratio | 0.1mm |
| Marking content | text, pattern, date, bar code etc. |
| Graphic format supported | bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt etc. |
| Operation system | Microsoft Windows XP or Windows 7/8 /10 |
| Control software | Ezcad |
| Unit power | ≤ 1.2KW |
| Operation temperature | 5°C-45°C |
| Relative moisture | ≤ 90%, no fog |
| Supply Voltage | AC220±10% 50Hz / AC110±10% 60Hz |
| Cooling method | Water cooling |
| Accessories |
exhausted fan, smoke pipe, water pump, water tube, user manual, software, data line etc. |
