12 M3 Construction Truck Trailer Concrete Mixer Drum Semi Trailer

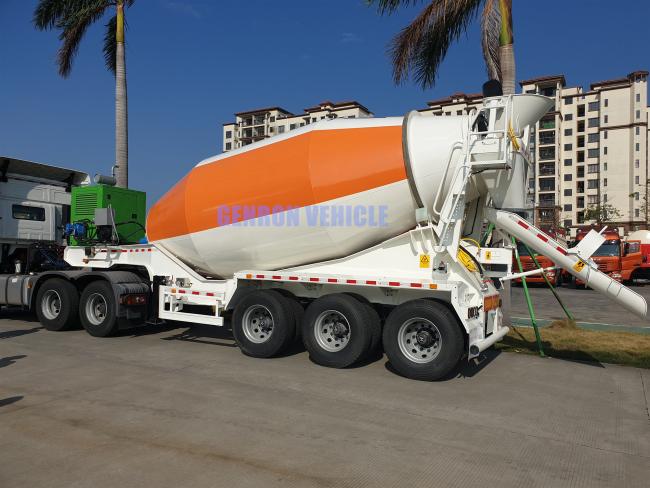

GENRON Concrete Mixer Semi Trailer
For efficient and profitable concrete transport, GENRON offers an extensive range of trailer mixers.
Mixer drums with rated capacities of set concrete between 8 to 14 m³ .
Alternatively, mixers trailer with sizes from 12 to 20 m³ can be delivered as a semi-trailer.
These mixers are noted for numerous striking features, including a low centre of gravity to ensure excellent road behaviour,
easy-to-clean surfaces, a maintenance-friendly concept, low wear and easy access to all components.
Our extensive list of optional extras and accessories satisfies every operating need.
1.Product Overview:
| Concrete Mixer Semi Trailer SPEC | |
| Net Weight | About 10.3 tons |
| Outside dimension | 11900*2550*3990 |
| Effective volume | 18 - 20 m³ |
| Mixing volume | 13 m³ |
| Tank body |
Tank Body thickness : 5mm Blade thickness: 4mm End plate thickness: 8mm |
| hydraulic motor | Italy brand PMP110 |
| Hydraulic speed reducer | Italy brand PMP9Y |
| Engine | Yunnei brand engine |
| Water tank | 400L with two high-pressure water guns |
| Axle | 3 axles ,13 T /PER , Jinsheng Brand |
| Tire | 12.00R22.5 Triangle Brand 13 pcs |
| Rim | 9.00-22.5 carbon steel 13 pcs |
| Suspension | Mechanical suspension |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer |
| King pin | JOST brand 90mm bolts type |
| Support leg | Double speed 28Tons |
| Brake system |
WABCO valve; 6 units big spring brake chamber; one piece of 45L air tanks |
| ABS | KEMI |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | 1 pcs |
| Spare tire carrier | 1 pcs |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint,Wax before shipping. |
2.MORE products :

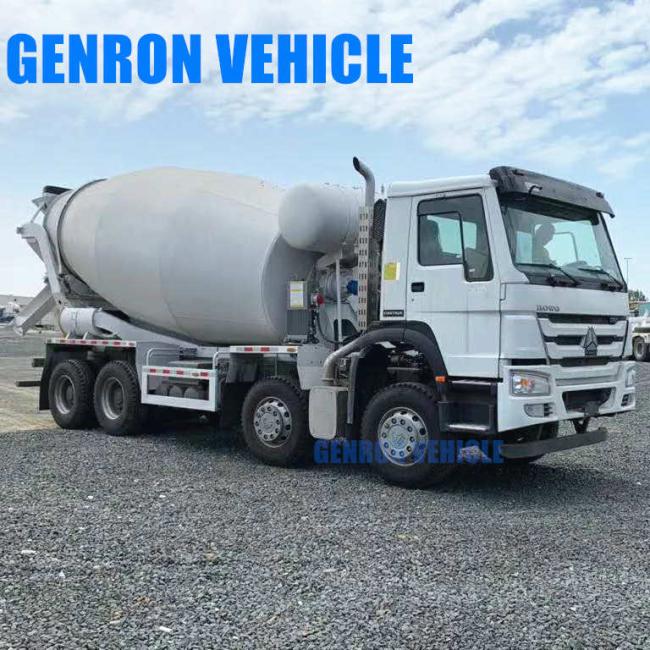

TRACK MIXER :

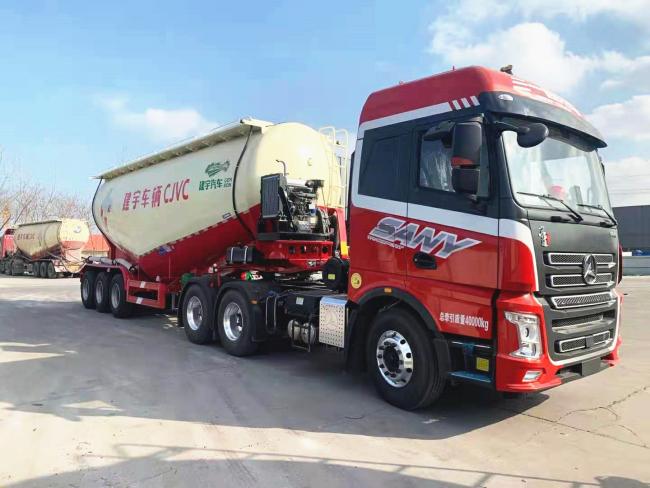

Bulk cement tanker trailer :

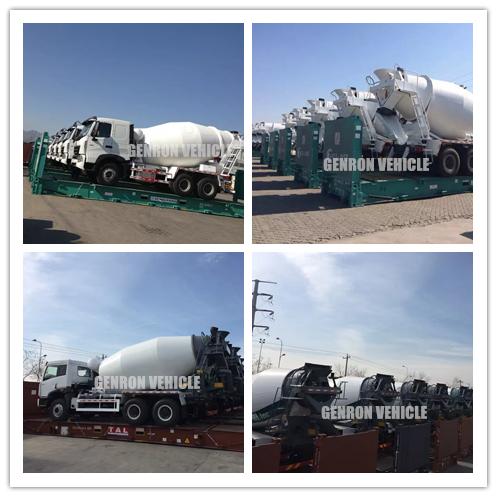

4.Packaging & Shipping:
