12R22.5 Tire Wood Transport Genron Small Timber Trailer
Our logging trailer advantage:
1.Our Logging trailer adopt to main Column Pipe cantilever Dread Bogie Suspension design.
2.Main Column Pipe trailers were designed to minimize the overall tare weight of the trailer. It is limited to
working with tree length material. The stems are not supported in the middle, just between the bolsters at either end.
3.Bogie Suspension has high passability, suitable for more road conditions, bigger load than the same level suspension.
The Configuration Of Wood transport timber semi trailer with 2 axles bogie suspension
| Dimension | 10000 * 3160* 1750mm |
| Loading capacity | ≤50 ton |
| Main I Beams | Welding I beam Design, Q345 carbon steel, Upper and down plate thickness is 20mm, middle plate is 10mm. Height: 500mm, upper plate is 14 mm Middle plate is 8 mm Down plate is 16 mm |
| Main Column Pipe/tube size | Diameter is 200mm * 20mm thickness |
| Logging square | Without |
| Axle | 2 |

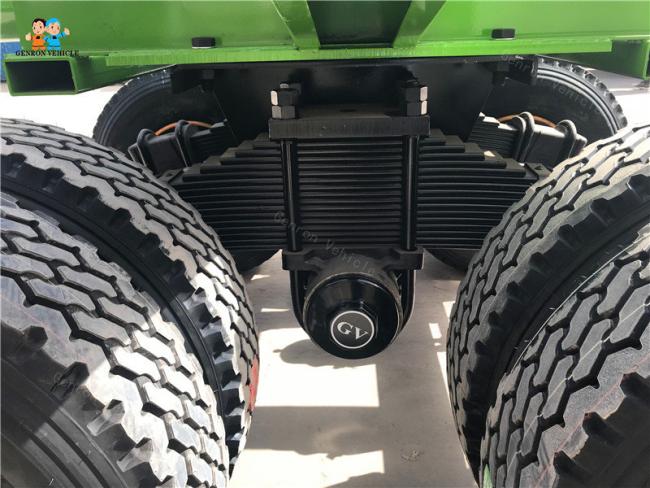

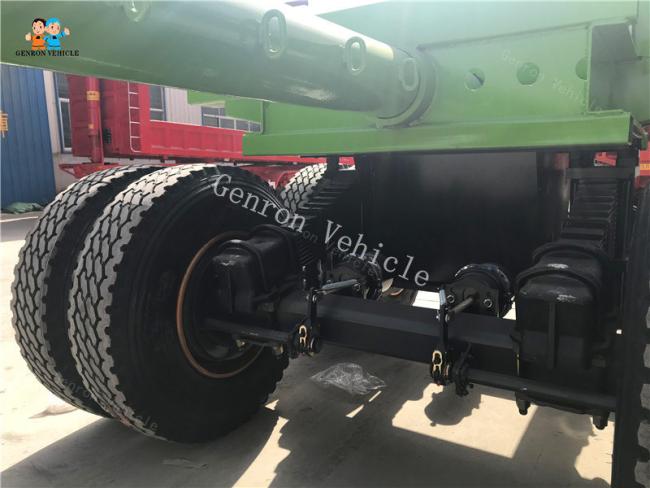

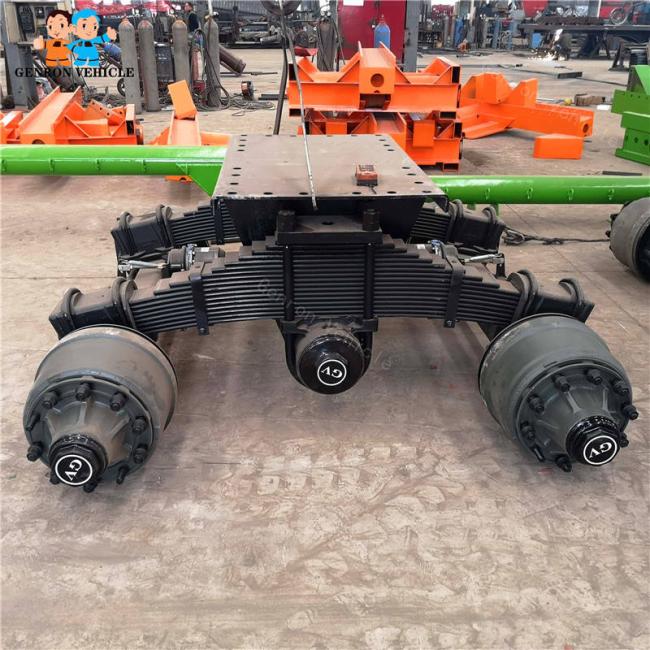

| Suspension | 32T Cantilever Dread Bogie Suspension |
| Leaf Spring | 17 pcs heavy duty spring |
| Pneumatic Braking System | Four double brake air chamber |
| Rim | 9.75-22.5 Steel China Brand 9 pcs |
| Tire | 13.00R22.5 China brand 9 pcs |
| Light | LED light (special for export market) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping item | By 40HQ container |

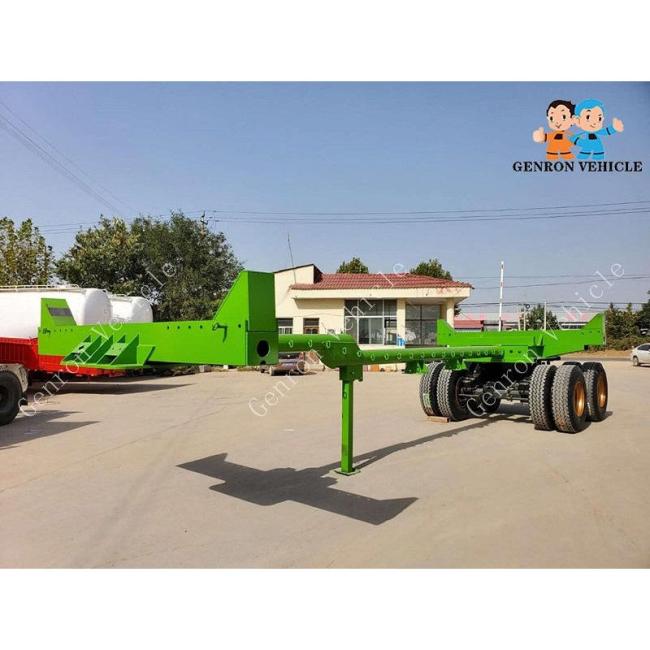

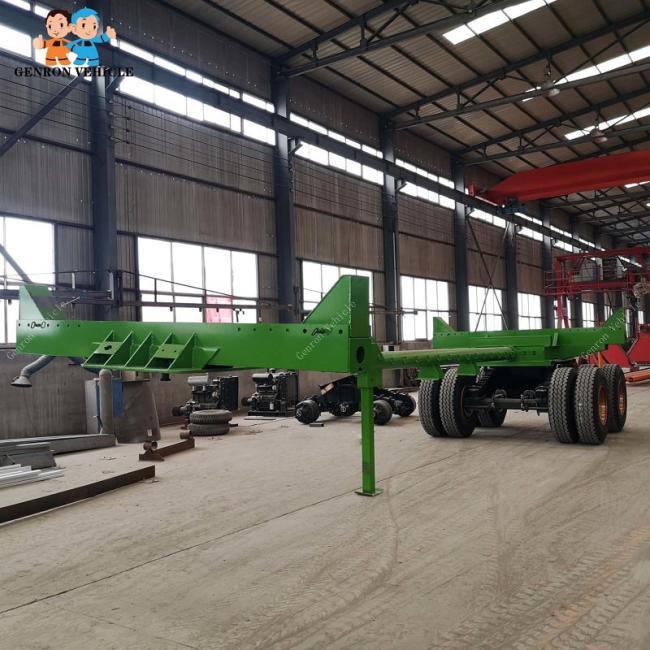

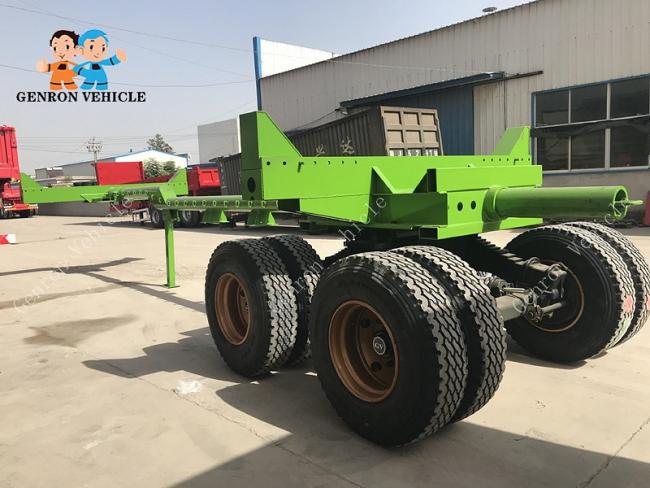

Product Display

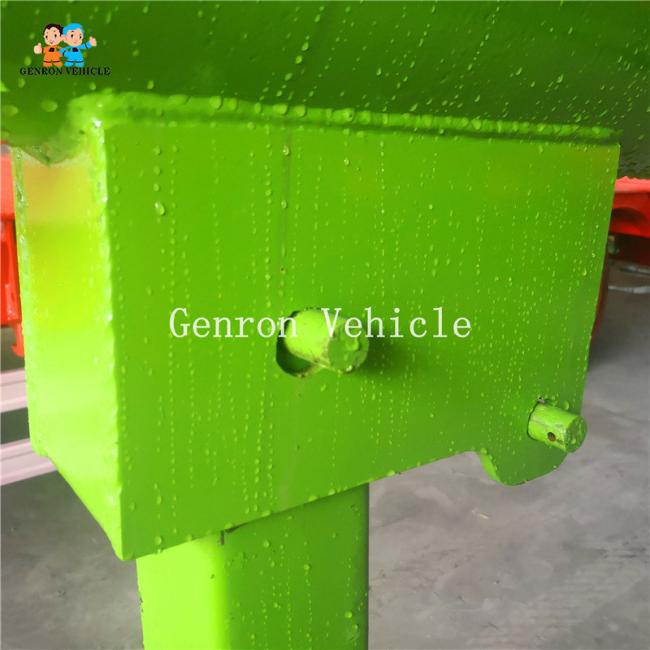

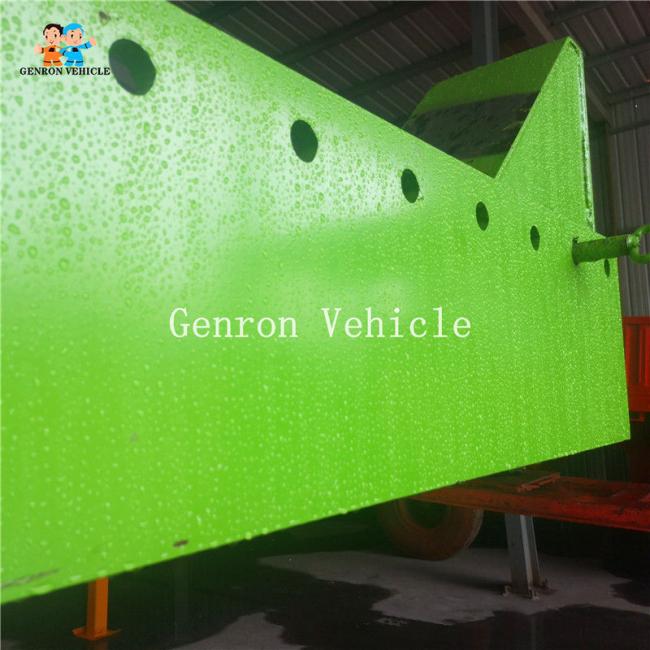

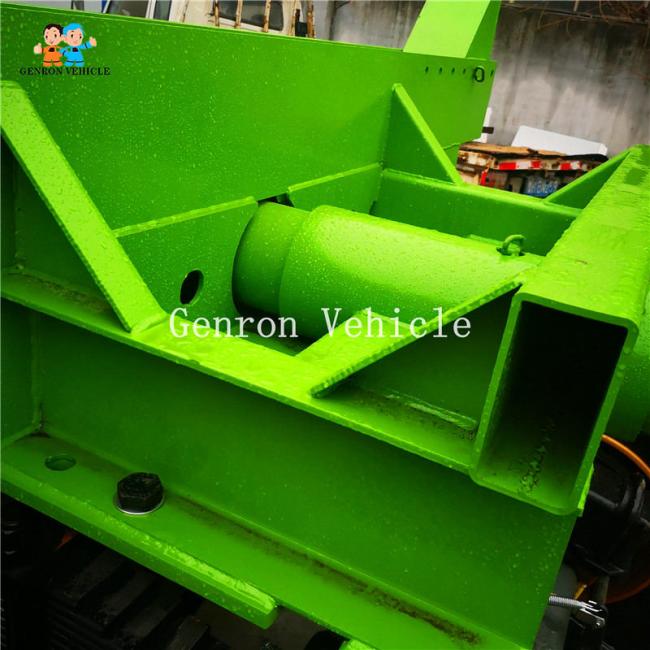

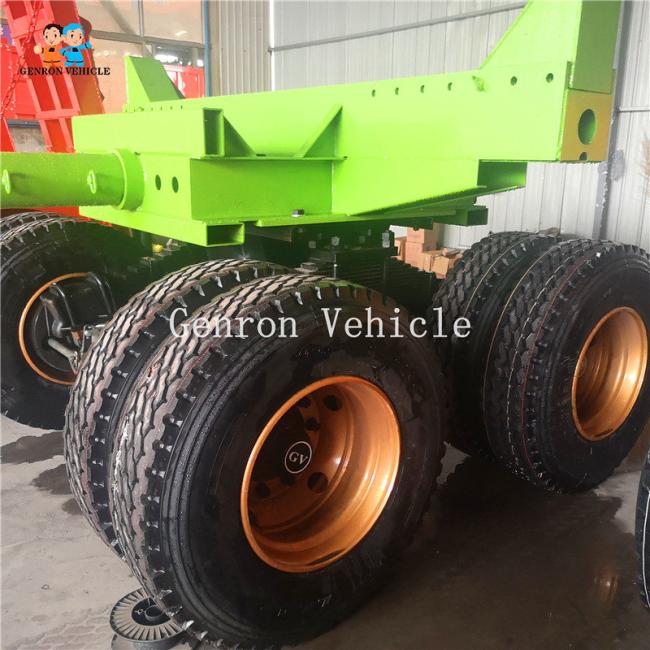

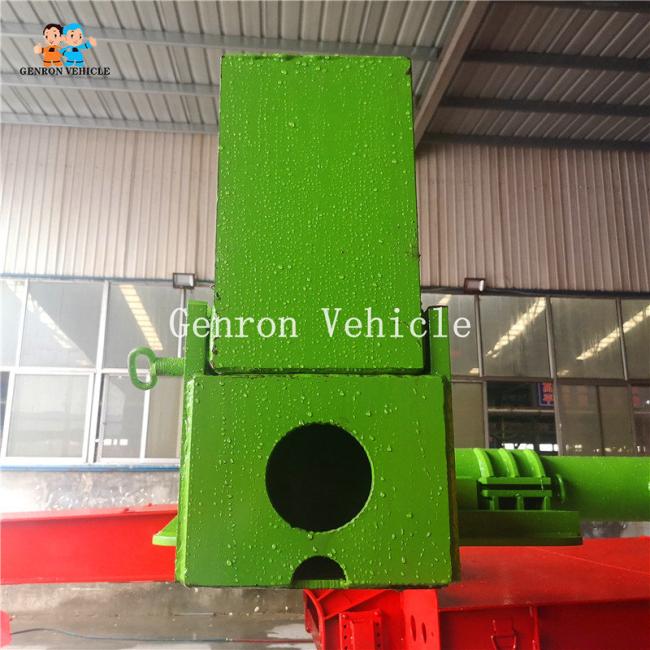

Product Details
Why do you choose Genron?
11 years overseas experience :
As our more than 11 years overseas produce and exporting business experience focus on the trailer and truck filed ,
We used nine years visited on Ghana, Burkina faso, Cameroon, Nigeria, Mozambique, Zambia ,Tanzania ,Kenya,
Malaysia ,Indonesia ,Philippine, Vietnam ,LAOS , Mayanmar, Algeria, Dubai.
Mirror Trading :
We will gave you the best price and quality product. Because we hope our cooperation like mirror ,
Customer as mirror ,one side is factory ,inside is Genron,
We Minimize all loses that may arise from the producers .We respond to the demands and requirements
of the companies , we work with in the most effective way and as soon as possible.
Professional Technical Team:
The strong advantage of Genron compare with other trading company and company is we have our own
professional design team: One engineer Mr.Fanming Bu (working for CIMC company five years,
design trailer and production line six years),Five technical person: Mr.Wenming Zhao(design tanker trailer for 11 years),
Mr. Xianzhen Zhao(design welding machinery four years), Mr.Haifeng Liu(design trailer axles four years).
Mr.Zuoliang Yang( design tipper trailer six years).Mr.Jihe Cao(Design tanker trailer five years).
The Factory Workshop
The Certifications

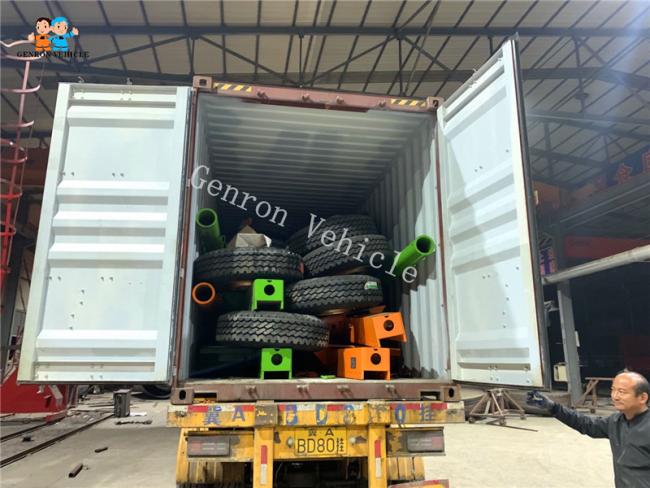

Delivery And Shipping
FAQ
Q:Which semi trailer brand is best in China?
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .
The best expensive brand is CIMC ( this is government company ).Genron is private company ,
we can supply low price in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money .
Q: What’s your payment terms?
A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time
after production finished and inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
