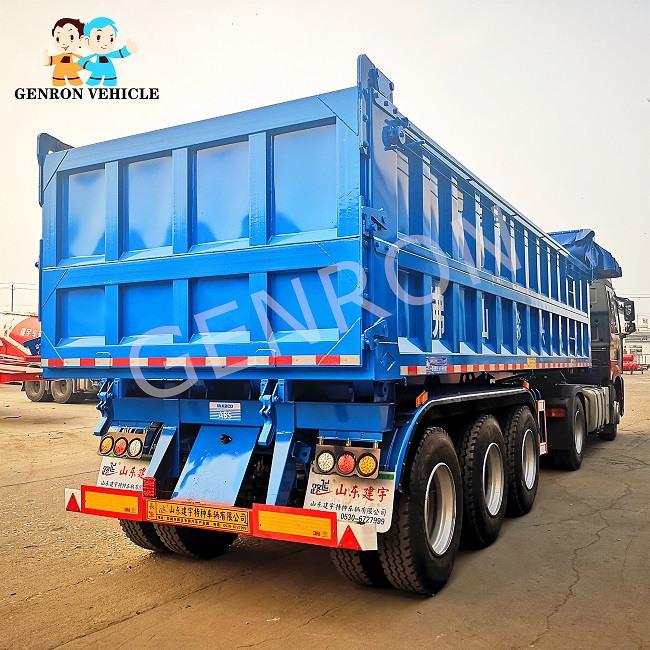

3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension
Advantages of Semi Trailer Dump Truck
1. It is suitable for the transportation of bulk bulk bulk goods such as coal, ore and construction materials.
Dump semi-trailer can be divided into two categories according to their uses: one is heavy-duty and super
heavy-duty dump trucks for off-road transportation, mainly responsible for large-scale mining, engineering
and other transportation tasks, usually used together with excavators. The other type of light and
medium-sized ordinary dump truck for highway transportation mainly undertakes the transportation of sand,
soil, coal and other loose goods, which is usually used together with loaders.
2. The carriage adopts rollover and backward dump mode, which can effectively improve the transportation
efficiency of bulk goods transported by the loader.
| Dimension | 8500*2500*3950mm, work place height:1800mm |
| Tare weight | About 15600KGS |
| Loading Capacity(T) | 30T |
| Side wall thickness(mm) | 3mm Q235 steel |
| Bottom plate thickness(mm) | 4mm,Q235 steel |
| Lifting system | 180 Hydraulic Lifting Cylinder |
| Chassis | |
| Main Beams | Height:480mm, upper plate is 14mm,middle is 8mm(double+three plate),down plate is 12mm,material is Q345B steel |
| Axle | 3 axles, FUWA brand 13 tons per axle |
| Landing Gear | CHINA BRAND 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Heavy duty mechanical suspension |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
| Pneumatic Braking System | WABCO brand valve; Spring brake chamber; one piece of 45L air tanks. |
| Rim | 9.00-22.5 12pcs |
| Tire | 12.00R22.5 12pcs |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
| Shipping Terms | By bulk cargo ship. |

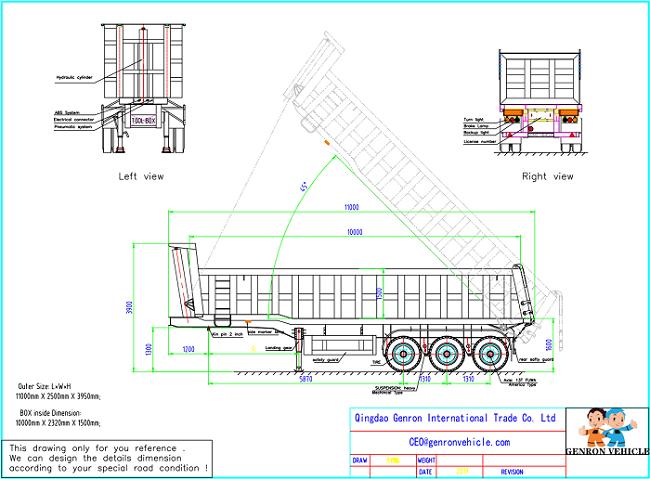

Drawing of Semi Trailer Dump Truck:

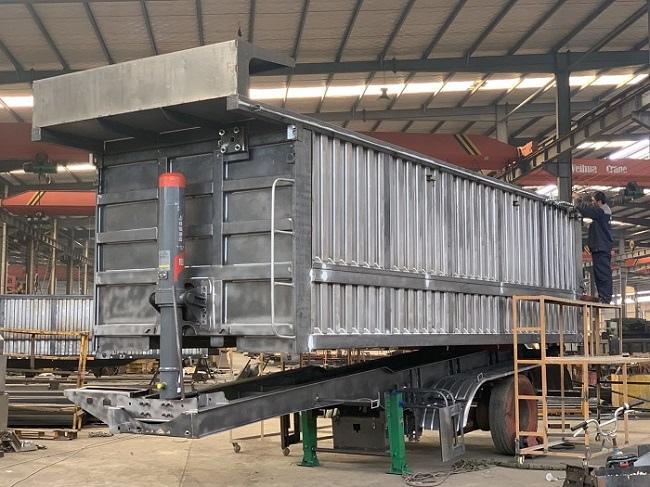

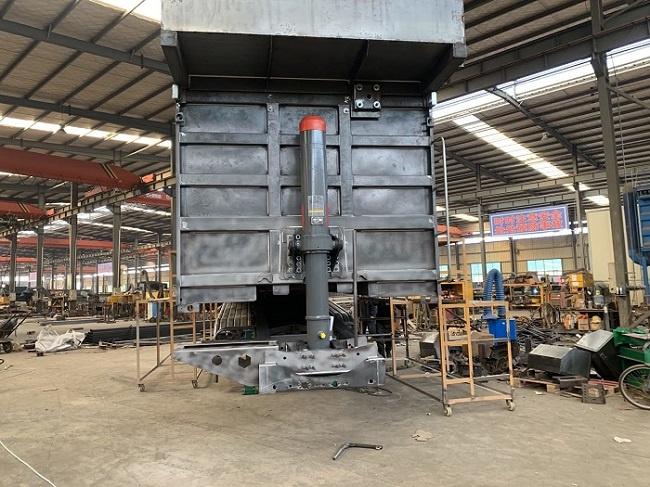

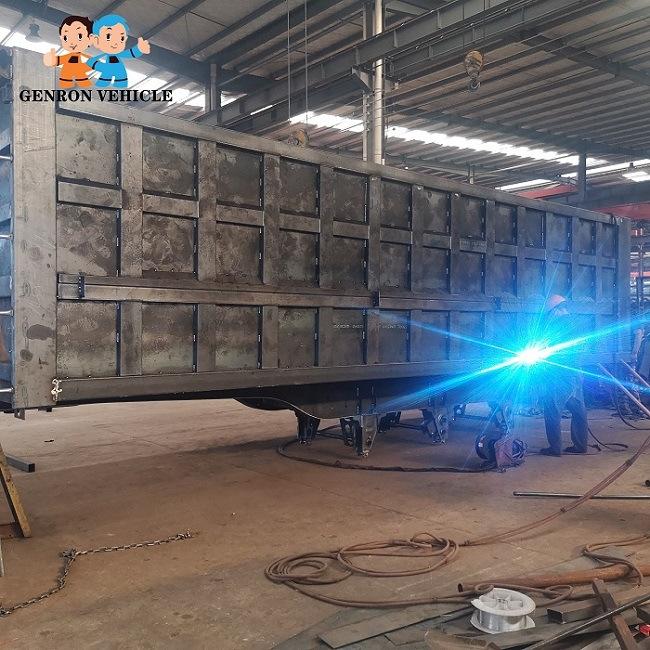

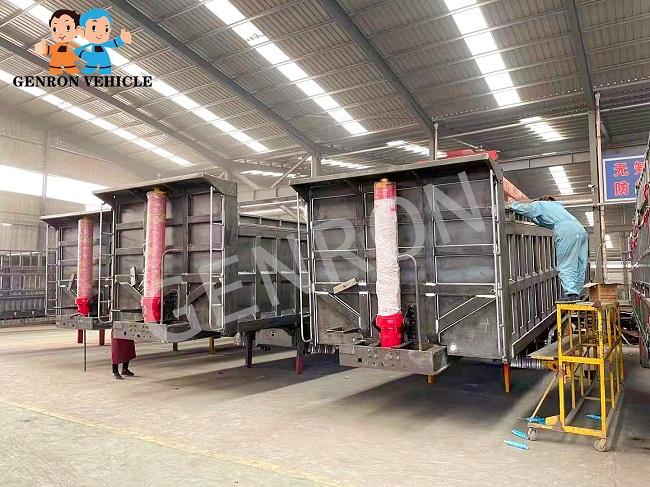

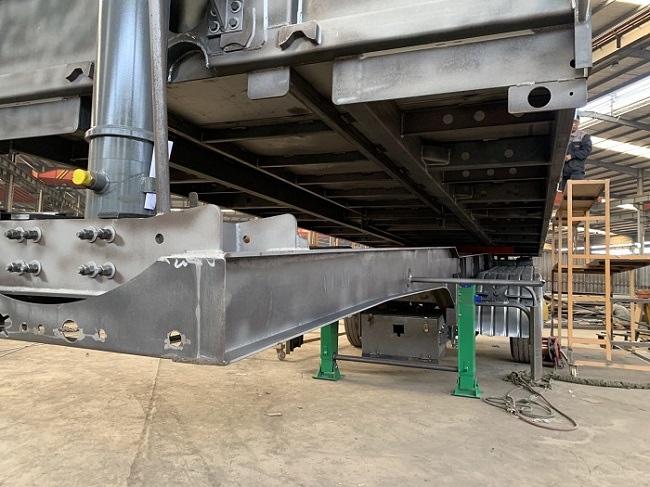

Semi Trailer Dump Truck Workshop:
