ASTM A252 AS1163 Saw Steel Pipe For Gas Transmission

ASTM A252 AS1163 Saw Steel Pipe For Gas Transmission

Base on its advantage of high reliability and safety performance, the LSAW pipe is widely used in various pipelines engineering and construction, even under the most severe condition, and also can be used in engineering of chemical industry, electric power, irrigation, construction and piling etc

It has been widely applied in the oil and gas pipelines, specially required large diameter and thick wall pipe with high strength and long distance. Meanwhile in construction of structure that need tough strength, water treatment, thermal industry, bridge building, etc.

According API specifications, the LSAW pipe (SAWL pipe or JCOE pipe) is specially designated in large scaled oil and gas transportation, in the cases that pipelines across the city, sea, and the urban area. These are the class 1 and class 2 areas.

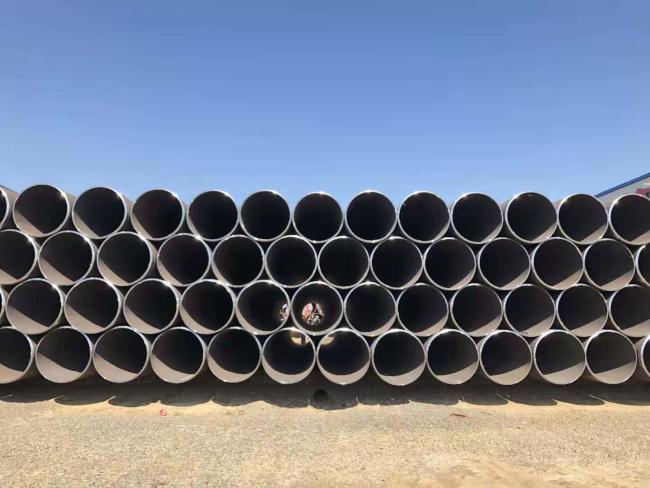

LSAW pipe (longitudinal Submerged Arc Welding Pipe) is fromed by JCOE with one straight welded seam, the outer diameters usually from 610mm to 1420mm. When the outer diameter is 914.4mm above, it’s allowed two straight welded seams. LSAW pipe is used to convey low pressure liquid meida or high pressure petroleum or natural gas, and can be also used widely in structural supports or foundation. The advantage for LSAW type is they could produce more thick wall thickness of pipes, maximum to 50mm.
Size:
Outer Diameter: 610mm-1420mm
Wall Thickness: 6.35mm-50mm
Length: 6mtr-18mtr
End:square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled,
Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings
Packing:Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.
Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield
strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
