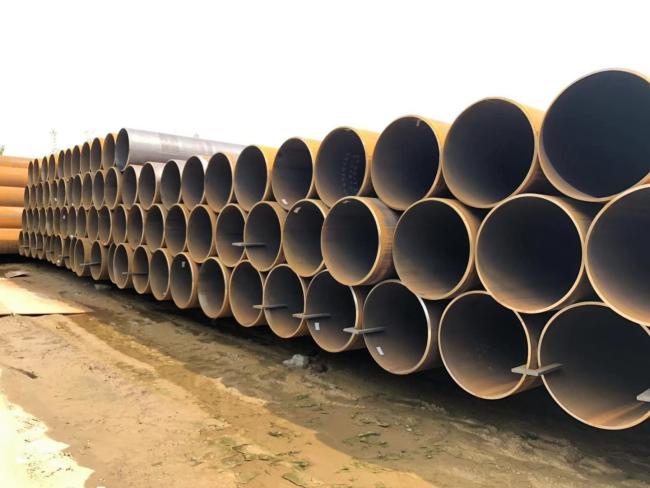

S235JRH S355J0H S420MH SAW Large Diameter Welded Pipe
S235JRH S355J0H S420MH SAW Large Diameter Welded Pipe
1. Standard: EN10219
2. Specification for Cold Formed Welded structural hollow sections of non-alloy and fine grain steels
3.Grade: S235JRH, S275J0H,S275J2H,S355J0H,S355J2H, S355K2H S420Mh
4. Type: (LSAW)
5. Thickness:9.53-50mm
6. Outer Diameter: 406.4-1422mm
7. The sizes can be according to ANSI B36.10.
8. Length: Min 3 Meters, Max18 Meters, or according to customers requirement.
9.Ends: Small sizes are plain, Large sizes are beveled, or according to customer’s requirement
10. Surface Treatment: Normally bare or black vanish.
11. Packing: bare pipe
12. Testing: Cast analysis, Tendile test, Impact test for qualities J2 and K2, Surface condition and dimensions, NDT of the weld, Product analysis, and etc. As customers requirement.
We supply EN10219 Cold-Formed Welded Pipe to construction ,Oil & Gas, Refineries, Fertilizers, Heat-Exchangers, Paper & Pulp, Pharmaceuticals, Chemicals, Water Treatment, Dairy, Sugar & Food Processing, Construction, Mining, Shipbuilding, Offshore, Defence, Ports, Railway, Nuclear Power, Power Plant, Cement, Government Org., Engineering Co., Oil Mills, and other industrial projects.
| Usage: | Used for construction field, |
| SAW: | Submerged arc welded pipe |
| LSAW: | Longitudinal submerged arc welding pipe |
| SAWL: | Submerged arc welded longitudinal pipe |
| Standard: | EN 10219 |
| Certificate: | ISO 9001, ISO 14001, OHSAS 18001, CE (CPR & PED), |
| Out Diameter: | 406.4mm - 1422.4mm (16"-56") |
| Wall Thk: | 9.53mm-50mm |
| Length: | 6M-12.5M |
| Steel Grade: | EN10219: S275, S275JR, S355JRH, S355J2H |
| Surface: | bare pipe |
| Tests: | Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (DWT, Guided Bend Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, RT (X-Ray Test) |
| MTC: | EN 10204/3.1B, EN 10204/3.2 (with Third Party Inspection) |
