Carbon Standard API 5L Material X46 Lsaw Pipe

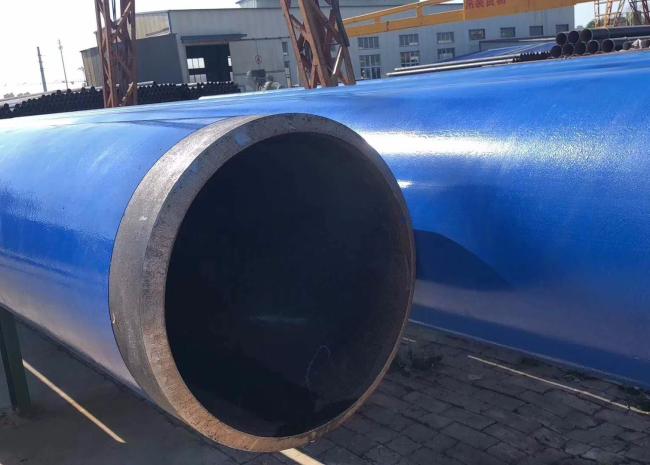

LSAW carbon sandard API 5L maretial X46 Saw Steel Pipe with 3PE coating use for support

An LSAW pipe (“submerged arc welding”) is manufactured by cutting, bending, and welding steel plates (JCOE process).LSAW pipes compete with seamless and ERW pipes in the size range between 16 and 24 inches but are “must-go” options for pipelines above 24 inches (as 24 inches is the maximum size for commercial seamless pipes).The two main types of LSAW pipes are the longitudinal (with a single or double straight seam weld, DSAW) and the spiral type (called, HSAW, SSAW or SAWL pipe). Therefore, the difference between DSAW vs. LSAW is that DSAW pipes have a seam weld in the inside and outside of the pipe, whereas LSAW pipes have a single seam weld on the outer surface.
The difference between LSAW and ERW pipes is that LSAW pipes are produced using steel plates, ERW pipes are manufactured starting from steel coils.

• in terms of the onshore gas,with the large diameter LSAW steel pipe, its single-tube gas transmission capacity could reach the level of 50 billion cubic meters / year, pipe diameter can reach ф1422mm, steel grade achieve X80, and gas transmission pressure can reach 12MPa;
• in terms of the ocean steel pipe, the gas pipeline develops towards the direction of deep-sea pipeline (> 1500 meters), marine structural tube towards the direction of high-intensity, large wall thickness, for example ф610mm×31.8mm, X65 grade;
• in terms of business management, plate and pipe integration (steelmaking - Continuous Casting - rolled plate - pipe manufacturing) is the future development trend, for example in Japan and India plate and strip production line is always equipped with a welded steel pipe unit;
• entering the market of high-grade structural tubes, this is an important question to be considered by the LSAW steel pipe production line manufacturer when deploying the device, so it is necessary to set the preheating device before pre-welding, or set the heat treatment process and so on
