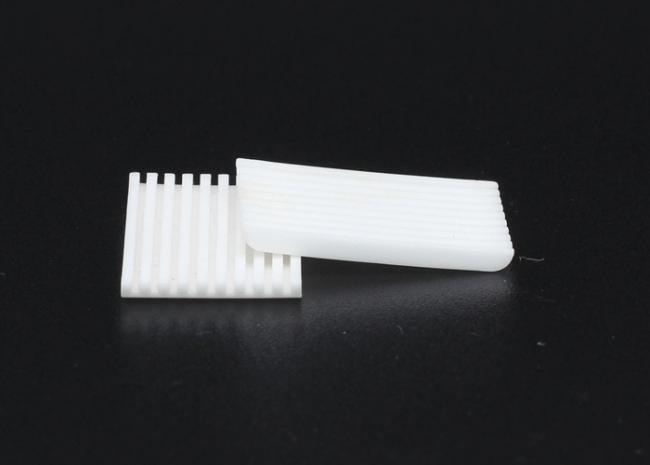

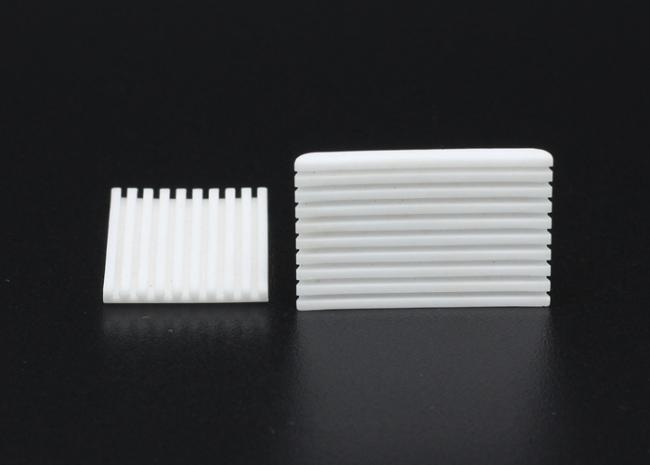

Dry Processing 3.6g/cm3 Alumina Ceramic Plate
Alumina Ceramic Rod for Electric Appliance, 95% Alumina Porcelain Pole for Electric Heater, Thermostat and Insulator
1. Description:
The ceramic rod series are made of 95% alumina material. The production methods include dry pressing and hot press injection.
2. Key Words:
Ceramic rod, Ceramic pin, Thermostat, Precision ceramic part, ceramic roller, Electric and Electronics,High temperature resistance, outstanding insulation, Anti corrosion, abrasion resistance, impact resistance, High precision, high stability, wide range of measurement,95% alumina,dry-processing,white, beige, pink or customized,temperature control system, electrics and electronics, precision manufacture.
3. Parameters:
| Product Parameters | ||
| Physical Property | Material | 95% Alumina |
| Production Process | Dry Pressing | |
| Product Dimension | Per customers' drawing | |
| Density (g/cm3) | 3.70-3.75g/cm3 | |
| Water Absorption | 0% | |
| Mechanical Performance | Flexural Strength (Mpa) | 310Mpa |
| Modulus of Elasticity (Gpa) | 310Gpa | |
| Hardness (Gpa) | 12.9Gpa | |
| Poisson Ratio | 0.23 | |
| Thermal Character | Linear Thermal Expansion Coefficient | 7.2 |
| Heat Conductivity (W/mk) | 23 | |
| Electrical Property | Dielectric Constant | 9.2 |
| Dielectric Loss Tangent (x10-4) | 8 | |
| Insulation Strength (x106V/M) | 15 | |
