CMC New Energy Car Ceramic Electronic Components
Price:
USD 0.2~2.0/piece
MOQ:
2000 pieces
Delivery Time:
20 work days
Brand:
CMC
Product Description

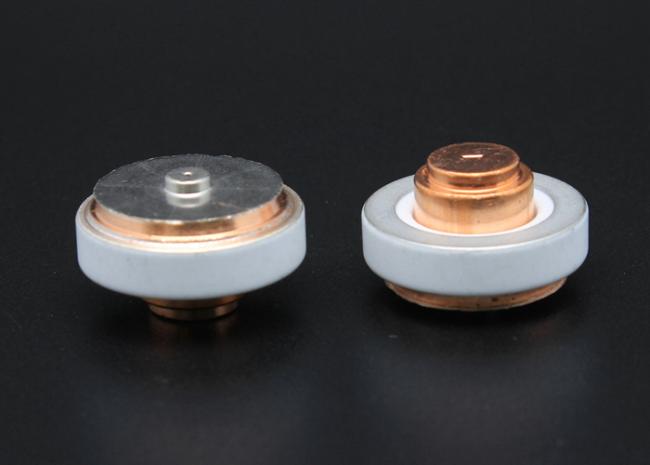

Advanced Technical Ceramic for EV and PHEV Power Battery, 95% Alumina Metallized Porcelain Connector for New Energy Car
1. Description:
The new energy series ceramics are produced by high purity complex alumina and nano metallization. It is suitable for brazing of different materials such as copper, aluminum and kovar. This series consist of HVDC relay ceramic housing, HVDC contactor ceramic shield, Fusegear ceramic case, ceramic connector for power battery cell.
3. Key Words:
New energy, EV Car, PHEV car, HVDC contactor, Vacuum interrupter, Power battery cell connector,
Oven advanced technical ceramics.
3. Parameters:
| Product Parameters | ||
| Physical Property | Material | 95% Alumina |
| Production Process | Dry Pressing and Brazing | |
| Product Dimension | Per customers' drawing | |
| Density (g/cm3) | 3.70-3.75g/cm3 | |
| Water Absorption | 0% | |
| Mechanical Performance | Flexural Strength (Mpa) | 310Mpa |
| Modulus of Elasticity (Gpa) | 310Gpa | |
| Hardness (Gpa) | 12.9Gpa | |
| Poisson Ratio | 0.23 | |
| Thermal Character | Linear Thermal Expansion Coefficient | 7.2 |
| Heat Conductivity (W/mk) | 23 | |
| Electrical Property | Dielectric Constant | 9.2 |
| Dielectric Loss Tangent (x10-4) | 8 | |
| Insulation Strength (x106V/M) | 15 | |
| Metalized Ceramic Performance | Air Tightness (Pa·m3/s) | ≤10-8 |
| Bulk Resistivity (Ω·cm) | ≥1010 (20°C), ≥106 (300°C) | |
| Bonding Strength (Mpa) | ≥120Mpa | |
| Metallization Thickness (μm) | ≥20μm | |
