Docking Bumper Marine Anti-collision Pneumatic Fender Yokohama Fenders Price

Anti-collision Pneumatic Fender

Anti-collision pneumatic fenders are widely used for ship-to-ship transfer, double banking, and ship-to-dock berths. They are preferably used in ports where the tides vary greatly. Jerryborg's anti-collision pneumatic fenders can be easily deflated, enabling simple and cost-effective relocation, providing protection in dock and ship-to-ship mooring scenarios. We offer products in various sizes, and they can also be fitted with tires or chain nets to provide additional protection.

Anti-collision pneumatic fender is marine equipment used to prevent ships, ships, and other naval vessels from colliding with each other or crashing into docks, wharves, and piers. In other words, anti-collision pneumatic fenders can be simply called marine bumpers.

Fully compliant with the ISO17357 standard, Jerryborg’s anti-collision pneumatic fender supplies a variety of specifications and dimensions to meet customer’s requests and different application conditions.

Anti-collision Pneumatic Fender Advantage

1. Safe and Reliable

Anti-collision pneumatic fender is made of several strong cord layers to enable it to be pressure-resistant and puncture-resistant. The anti-collision pneumatic fender whose diameter is over 2.5m is equipped with a safety valve to release the air inside in case it’s overpressured. The diagram below shows the data variations at different percentage compressions.

2. No Variation or Deformation in Performance

Anti-collision pneumatic fender is filled with the air of compressive elasticity inside, the deformation caused by fatigue is absent. In the experiment below of anti-collision pneumatic fender, the performance variation will not happen if the pressure is maintained properly.

Our anti-collision pneumatic fender remains the same without any variation or deformation even at temperatures under -50 degrees centigrade (-58 degrees Fahrenheit).

3. Tide Adaptation

Anti-collision pneumatic fender is filled with pressure air inside that makes it flexible and easy to float on the water and adapt to the tide variation.

Anti-collision Pneumatic Fender Structure

① Outer rubber layer

Anti-collision pneumatic fenders are covered by the outer layer made of natural rubber. This rubber compound is strong enough to protect the inner layer and synthetic-cord layer from the damage of external forces and severe weather conditions due to its high elasticity and abrasion resistance.

② Synthetic-tire-cord layer

The Synthetic-tire-cord layer is made of synthetic-tire-cord fabrics, compared with synthetic canvas fabric and synthetic belt fabric, this reinforcement layer performs better in fatigue-resistance and pressure-holding.

③ Inner rubber layer

The inner layer is designed to seal the air inside the fender.

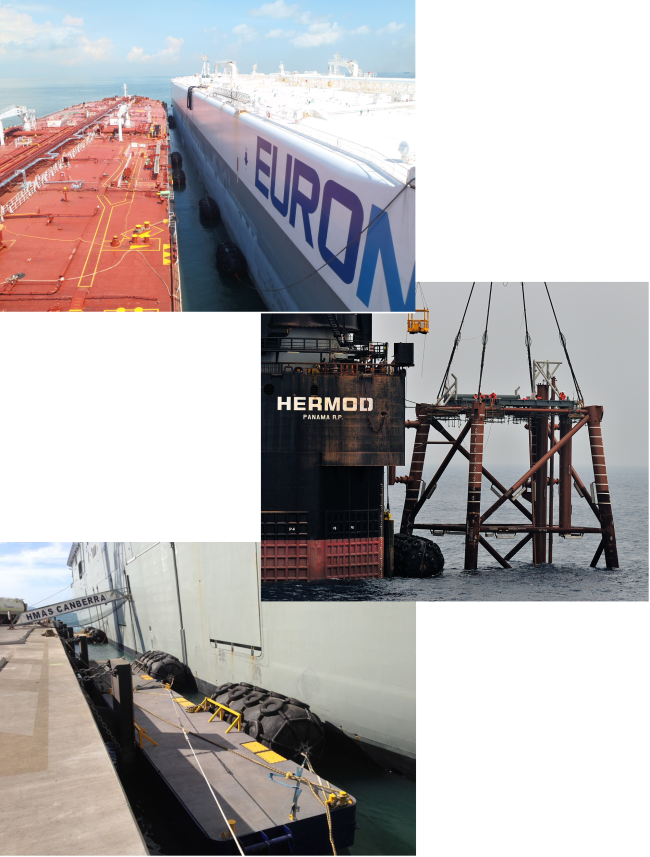

Anti-collision Pneumatic Fender Application

1. STS sea transport.

2. Double banking and ships berthing at docks/jetty.

3. Oil and gas carriers.

4. Temporary and permanent installation.

5. Quick response and emergency.

6. Liquid cargo and naval defense ships.

Specifications of Anti-collision Pneumatic Fender

Pneumatic 50 Standard Sizes:

Pneumatic 80 Standard Sizes:

For further information free to contact us.
