Ship Berthing Portable EVA Bumper Durable Foam Filled Fender
Polyurethane Durable Foam Filled Fender Portable EVA Bumper For Ship Berthing
Durable Foam Filled Fender Introduction
Durable foam filled fender is a floating type fender using lightweight and high elasticity foam as a buffer medium to absorb impact energy. It’s composed of a closed-cell EVA core and an outer polyurethane skin.
Durable foam filled fenders consist of three parts, including the outer polyurethane layer, reinforced nylon cord fabric, and internal polyethylene foam. The outer layer is strong enough to resist friction and the inner closed-cell can stop any water permeating into the fender body.
As an alternative to the pneumatic rubber fender, durable foam filled fender is extremely durable. Moreover, without air inside, there’s no risk of bursting or sinking. And it’s widely used in harbor, offshore platform, or ship to ship operations. Jerryborg’s durable foam filled fenders are available in black and other customized colors upon customer’s request.
Structure Of Durable Foam Filled Fender
- Closed-cell EVA foam
Closed-cell polyethylene foam performs well in high durability and sturdiness even at extremely low temperatures.
- Reinforced rubber nylon cord fabric
Nylon and tire cord reinforcement is strong enough to protect the foam inside
- High elastomer polyurea skin
Outerwear surface is the non-marking polyurethane, which is resistant to acid and alkali, besides it has higher load-bearing capacity and impact resistance.
- Other Accessories:
Q235 hot galvanized flange, hot galvanized central shaft tube/chain
Features Of Durable Foam Filled Fender
- Anti-aging with a long lifespan
- Lightweight and portable
- Excellent floating performance and not affected by tides
- Resistance to acid and alkali
- Various optional colors are available, standard color is black and orange
- Diameter from 500mm to 4500mm,length from 1000mm to 9000mm
- No need for air inflation
- High energy absorption, low counterforce

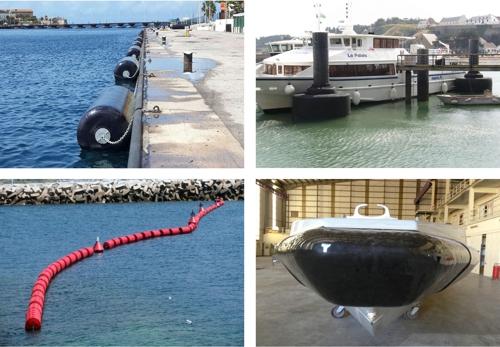

Applications Of Durable Foam Filled Fender
- Ship to ship operations
- Ship to dock defense
- Floating security barrier to hold trash
- Donut fender for offshore defense
- Yacht ship side bow fender for ship protection
Specification Of Durable Foam Filled Fender
|
Item
Size(D×L)mm |
D (mm) |
L (mm) |
Compression Value60% |
Reference Weight (kg) |
|
| Counter Force(KN) |
Energy Absorption (KJ) |
||||
| Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
| Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 | 21460 |
For further information free to contact us.
