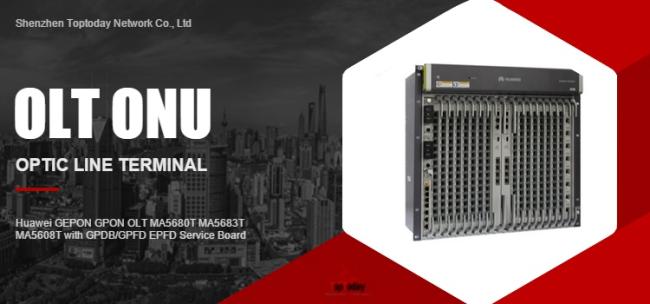

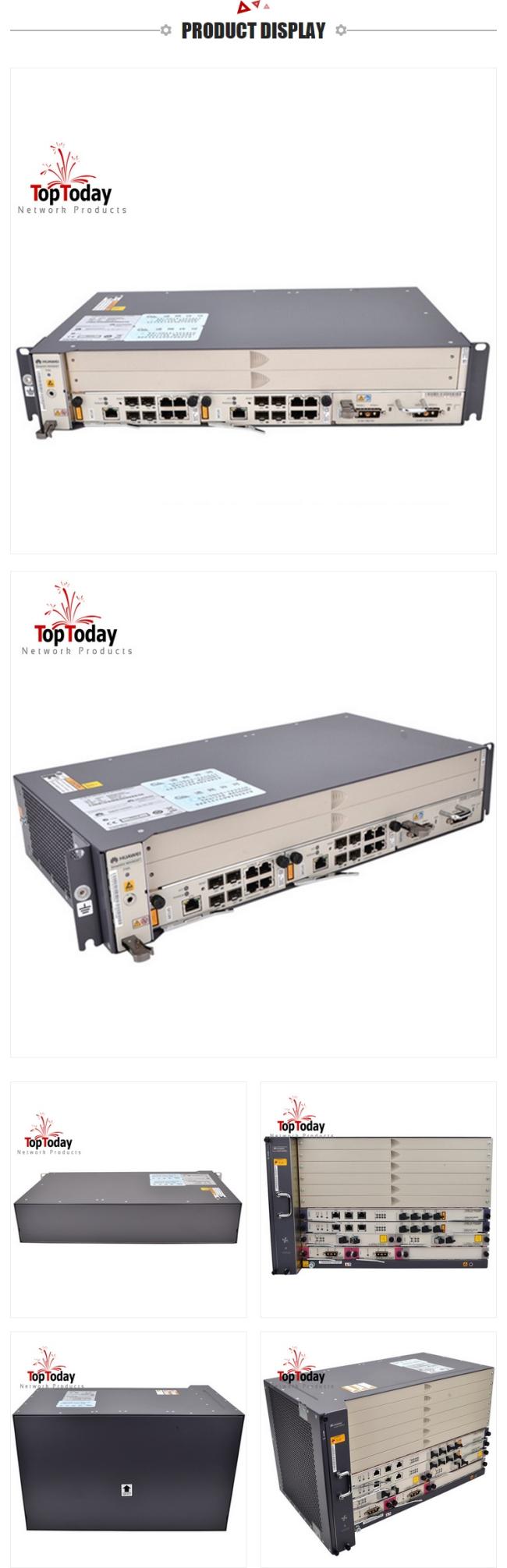

Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Key features
· High reliability: support OLT dual-machine thermal backup, off-site disaster tolerance, upgrade business without interruption, complete Qos function, end-to-end high-reliability design;
· Multi-scene access: support a variety of E1 dedicated line access, support Fornative TDM or CESoP/SAToP function, E-LAN function, support IPTV users without convergence access;
· Smooth evolution:EPON/GPON/10G PON/40G PON common platform, support smooth evolution, meet ultra-bandwidth access;
· Green energy saving: support idle single board automatic power down, fan intelligent speed control, effectively reduce idle power consumption.
Technical specifications
| The argument | MA5680T(ETSI) | MA5680T(IEC) | MA5683T | MA5608T |
| High × width × depth (mm). | 490×275.8×447.2 | 442×275.8×441.7 | 442×283.2×263.9 | 442×244.5×88.1 |
| The operating environment | Temperature: -25Cto.55C Humidity: 5%to95%. |
Temperature: -40Cto.65C Humidity: 5%to95%. |
Temperature: -40Cto.65C Humidity: 5%to95%. |
|
| The power parameter | -48V DC input Operating voltage range: -38.4 V to -72 V Dual power protection is supported |
DC power supply: -38.4Vto-72V AC power supply: 100Vto240V support dual power protection |
||
| Backplane bus swap capacity | 3.2Tbit/s | 1.5Tbit/s(H801MABO) 2Tbit/s(H802MABO) |
720Gbit/s | |
| Access capacity |
· 128×10G EPON · 128×10G GPON · 256×EPON · 256×GPON · 768×P2P FE · 768×P2P GE |
· 112×10G EPON · 112×10G GPON · 224×EPON · 224×GPON · 672×P2P FE · 672×P2P GE |
· 48×10G EPON · 48×10G GPON · 96×EPON · 96×GPON · 288×P2P FE · 288×P2P GE |
· 16×10G EPON · 16×10G GPON · 32×EPON · 32×GPON · 96×P2P FE · 96×P2P GE |
| The type of interface | Upstream interface: 10GE light,GE optical / electrical business interface: 10G GPON, 10G EPON, EPON, GPON, P2P FE light port,P2P GE light port |
|||
| System performance |
· Two-tier/three-tier line speed forwarding · Support for Static route/RIP/OSPF/MPLS · BITS/E1/STM-1/Ethernet clock synchronization /1588v2/1PPS-ToD and other clock synchronization parties · GPON supports a maximum of 1:128 d.d · The 10G PON supports a maximum of 1:256 pts · GPON supports a maximum logical distance of 60km · XG-PON supports a maximum logical distance of 100km |
|||
