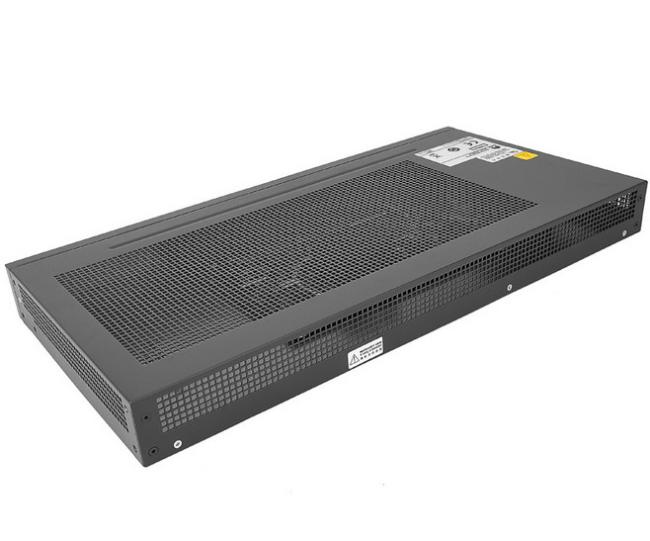

FTTB Huawei MA5620 16 Ports GPON EPON Terminal ONU
Optical Network Units (ONUs) with Power-over-Ethernet (PoE) support, comprehensive QoS features including Dynamic Bandwidth Allocation (DBA), and 8 downstream FE ports. Ideal for IPTV, video monitoring, and wireless broadband services in small and medium-sized offices.
Ruggedized for high reliability indoors or outdoors, MA5626 ONU is connected with GPON uplink to an Optical Line Terminal (OLT). Units can be managed and upgraded remotely, and configured in advance through batch pre-deployment.
Features
Deliver WLAN broadband services and video surveillance capabilities with Huawei’s SmartAX MA5626 remote ONU
1. Supports PoE and reverse PoE technologies, simplifying deployment to the wireless Access Point (AP), camera, data collection terminal, or ONU
2. Several specification sets are available based on diverse user requirements with flexible service configurations
3. Offline deployment and plug-and-play features that also support remote configuration issuance, commissioning, and multiple installation options, including mounting on a pole or wall. These features can be used together with the Huawei uniSite outdoor cabinet solution
Specification
| Dimensions (HxWxD) | 16 FE/24 FE: 43.6 mm x 442 mm x 220 mm; 8 FE: 43.6 mm x 250 mm x 180 mm |
| Operating Environment | -40℃ to 65℃; 5% RH to 95% RH |
| Power | AC: 100V / 220V |
| Network-side Ports | 1 x GPON / EPON |
| User-side Ports |
8/16/24 x FE 8/16/24 x FE (PoE) 4 x GE + 4 x FE (PoE) 8 x FE (reserve PoE) |
| Surge Protection | LAN: 4kV |
| Place of Origin | Guangdong,China |
| Model Number | MA5620-16 |
| Brand Name | Huawei |
| Name | MA5620-16 |
| Brand | huawei |
| condition | new and original |
