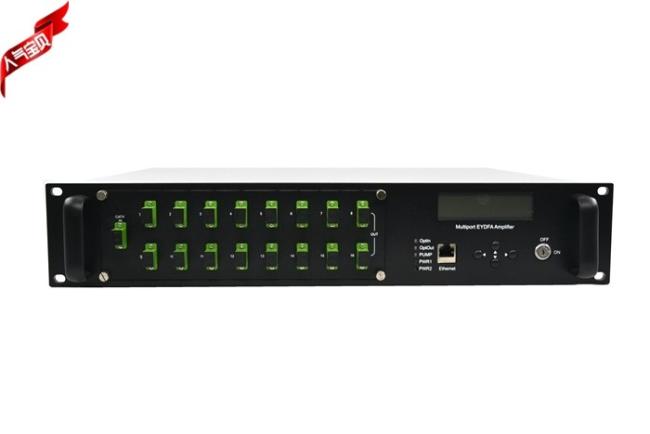

1550nm CATV 16 ports 22db EDFA WDM Fiber Optical Amplifier for CATV network
1550nm CATV 16 ports 22db EDFA WDM Fiber Optical Amplifier for CATV network
EDFA Features
♦ 1540~1563nm operating bandwidth for HA5400 EDFA
♦ 500~5000mW (27~37dBm) high output power
♦ 8~64 outputs is optional
♦ Low noise subnumber ( Typ ≤4.5dB, Max ≤5.0dB, Output ≥37dBm )
♦ High performance, high reliability
♦ APC, ACC, ATC controlled selection (HA5400/P)
♦ Powerful RS232 supervisory instruction
♦ Efficient space, flexible installation and easy operation
♦ Excellent P/P ratio
EDFA Parameter
|
Item |
Unit |
Technical parameter |
|
|
Bandwidth |
nm |
1545~1565 |
|
|
Input optical power |
dBm |
-5 ~ +10 |
|
|
Max output power |
dBm |
40 |
|
|
Output power stability |
dBm |
±0.5 |
|
|
Noise |
dB |
≤ 5.0 |
|
|
Return loss |
Input |
dB |
≥ 45 |
|
Output |
dB |
≥ 45 |
|
|
Optical connector |
|
SC/APC&LCAPC |
|
|
C/N |
dB |
≥ 50 |
|
|
C/CTB |
dB |
≥ 63 |
|
|
C/CSO |
dB |
≥ 63 |
|
|
Supply voltage |
V |
A:AC160V~250V(50Hz);B:DC48V |
|
|
Consumption |
W |
≤ 90 |
|
|
Working temperature |
℃ |
-10 - +42 |
|
|
Max relative humidity |
% |
Max 5% no condensation |
|
|
Storage temperature |
℃ |
-30 ~ +70 |
|
|
Devise size |
mm |
464(L)*440(W)*89(H) |
|
|
Package size |
mm |
640(L)*640(W)*200(H) |
|
|
Description |
Unit |
Value |
Conditions / Notes |
|
Optical Specifications |
|||
|
Fiber connector |
nm |
TVinput:1550nm COM:1550/1490/1310nm SC/APC |
OLT:1310/1490nm SC/UPC |
|
Automatic Switch |
ms |
≤10 |
Automatic mode setting |
|
Switch threshold |
dBm |
-2~+10 |
Factory default |
|
Input Power |
dBm |
-3~+10 1550nm |
recommend 0~+6dBm |
|
Output Power |
dBm |
8*17,8*19,8*22 |
@+6dBm Input |
|
Laser Bias current |
Pump |
8*17dBm 2500mA±200mA @+6dBm input |
Alarm range: Out of 1000mA~3500mA |
|
Laser Bias current
|
Pump |
8*19dBm 2900mA±200mA @+6dBm input |
Alarm range: Out of 1500mA~3900mA |
|
Laser Bias current |
Pump |
8*22dBm 2900mA±200mA @6dBm input |
Alarm range: Out of 1500mA~3900mA |
|
Output Power Stability |
dB |
0.1 |
@+6dBm Input |
|
Noise Figure |
dB |
4(max 5.8) |
@+6dBm Input |
|
Isolation (Input/Output) |
dB |
30 |
|
|
Return Loss (Input/Output) |
dB |
55 |
|
|
Polarization Dependent Gain |
dB |
max 0.5 |
|
|
Polarization Mode Dispersion |
ps |
max 0.5 |
|
|
Electrical Specifications |
|||
|
Communication Interface |
|
RJ45, RS-232 |
9600bps |
|
Input voltage |
VAC |
90-265 |
-12/-48 V DC(optional) |
|
Consumption |
W |
15 maximum |
|
|
Fuse |
A |
2 |
|
|
Connector |
IEC |
Male power connector |
|
|
Mechanical Specifications |
|||
|
Dimension (HxWxD) |
mm |
88 ´ 483 ´ 422 |
Carton:590*590*200 |
|
Weight |
kg |
Net weight 11.5, |
gross weight :14.8 |
|
Mounting |
|
19” EIA rack, 2U Rack |
|
