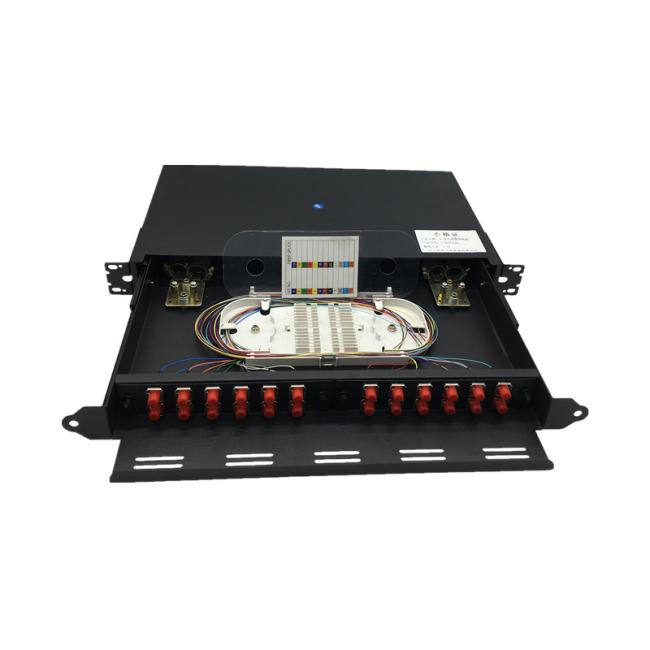

4/8/12/16/24 Core 1u Rack Mount Stainless Steel Optic Fiber SC Port Patch Panel
4/8/12/16/24 core 1u Rack Mount Stainless Steel optic fiber SC port patch panel
can be applied in the branch connection of fiber termination,working as distribution box;19" standard structure rack mounted;Available for the installation of FC,SC,ST,LC adaptors.
| Product Name: | 24 Port Fiber Optic Patch Panel | Certification: | CE RoHS FCC |
|---|---|---|---|
| Port: | 4/8/12/16/24 Port | Connector: | SC |
| Application: | FTTH FTTB FTTX Network | Place Of Origin: | Guangdong, China |
1. Application
Rack mount serial dustproof cover optical fiber terminal box can be applied in the storage of indoor optical cable, distribution and terminal of various optical fiber system. Available for the rack installation of adaptors for FC, SC, ST, LC and so on. Revolving structure, easy for operation.
2. Features
l The body make use of cold rolling steel,and the surface use the technique of dim plastic.strong
adhesive force,artistic and durable;
l Standard size, light weight and reasonable structure;
l Splice tray inside changeable;
l Can be used in 19'', 23'' standard distribution frame;
l Suitable for ribbon and single fiber;
l SC/ST/FC/LC ports is available;
l Front mark on the plate is easy for identification and operation;
l 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters;
l Easy for management and operation .
3.Performance for fiber optic terminal box
n External size 480x250x1U, 2U,
n Fiber capacity from 12 cores to 48 cores
n Insertion loss: <0.3dB
n Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
n Winding radius ≥40mm
n Working temperature -25°C~+45°C
n Atmosphere pressure 70~106Kpa
n Insulated Resistance 2×10MΩ/500V(DC)W
n Voltage- resistance:Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.
