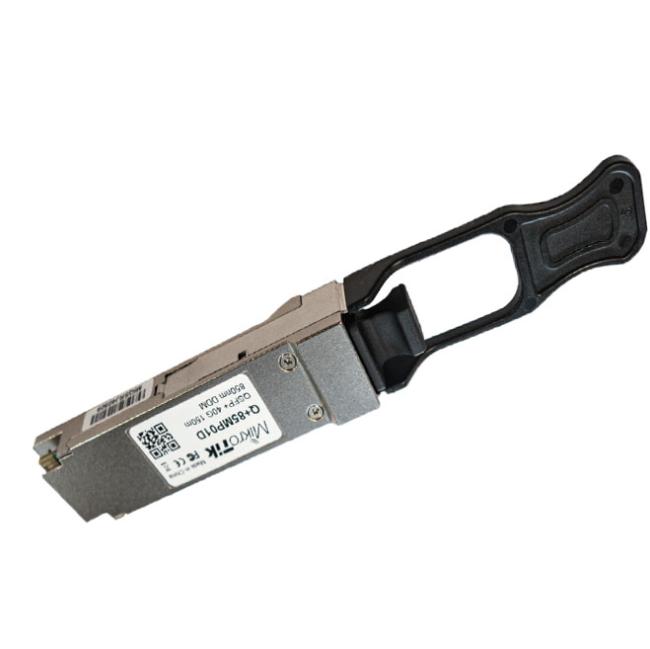

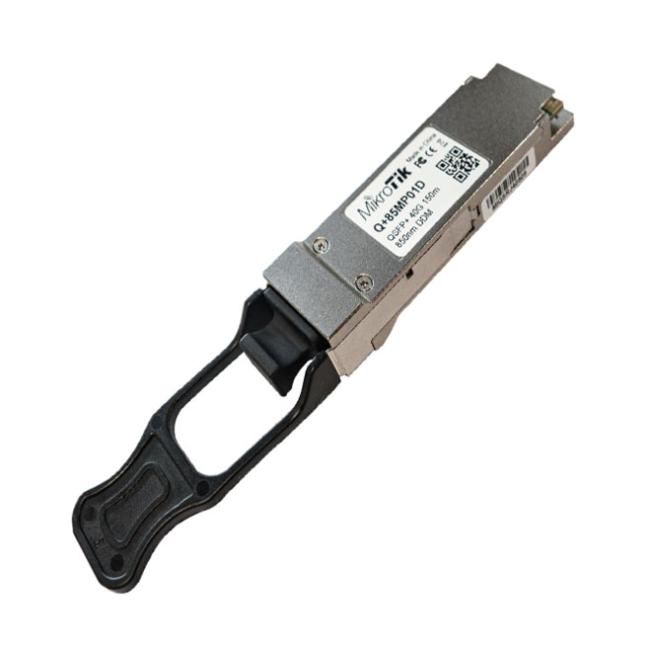

40Gbps 850nm Fiber Qsfp Module MikroTik Q+85MP01D
Fiber SFP Modules MikroTik Q+85MP01D 40Gbps 850nm fiber qsfp + module for 150m distance
Q+85MP01D Description
This optical module with a 12-fiber MTP/MPO connector offers 4 independent full-duplex channels with up to 10 Gbps per channel bandwidth .
And Q+85MP01D aggregate bandwidth of 40 Gbps.
It has been designed to meet the harshest conditions, including temperature, humidity and EMI interference, so we definitely recommend this as a reliable solution for all your 40 Gbps QSFP+ devices.
It can provide a connection over 100 m on OM3 Multimode Fiber (MMF) and 150 m on OM4 MMF. The module has built-in digital diagnostic functions, including optical power monitoring, and will perform well in environments up to 70° C.
Product specifications:
| Details | To |
|---|---|
| Product code | Q+85MP01D |
| Connector | 1x12 MTP/MPO |
| Data Rate | 40Gbps |
| Distance | 150m |
| Format | QSFP+ |
| Mode | MM |
| Wavelength | 850nm |
Model Comparison:
